TCU-RS5042-AW28

Upgrade your security with the Prime TCU RS5042-AW28 5Megapixel Night Color Coax Turret Camera. NDAA compliant, 131.23 ft (40 m) IR distance, and 3-axis construction for easy operation. Shop now!

TCU-RS5042-AW28

Original price was: $119.95.Current price is: $74.95.

In stock

Original price was: $119.95.Current price is: $74.95.

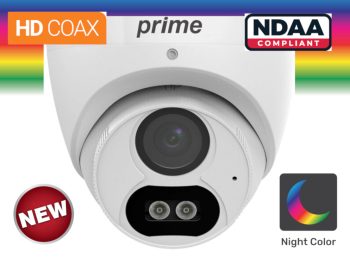

Prime TCU-RS5042-AW28 2Megapixel Night Color Coax Turret Camera with NDAA Compliance

  • 5Megapixel high-quality imaging
  • TVI/AHD/CVI/CVBS
  • Supports white light illumination, 24/7 color images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu in 11 languages, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • Built-in microphone for high-quality audio transmission via coaxial cables Supports digital defog
  • Metal front face and housing
  • 3-Axis Construction.
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

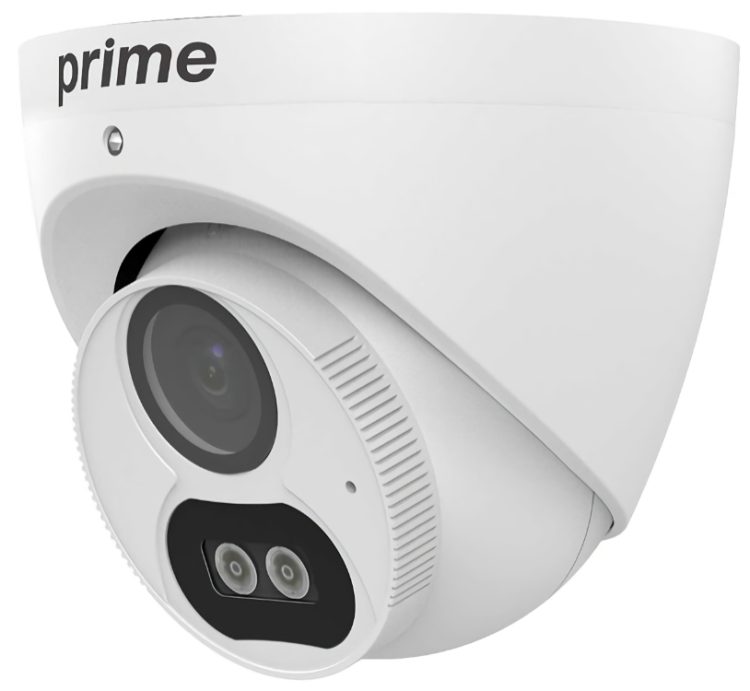

The Prime TCU-RS5042-AW28 is a 5-megapixel night color 4-in-1 coaxial camera that is NDAA compliant. The 2.8mm fixed lens on this cutting-edge camera allows you to monitor a large area with utmost clarity and detail.

This camera can capture clear and sharp images even in low light conditions. D-WDR technology further enhances image quality by ensuring that no details are lost in harsh lighting conditions. The maximum infrared range of the camera is 131.23 feet (40 m), making it a great choice for continuous surveillance.

The Prime TCU-RS5042-AW28 supports multiple video formats, including TVI, AHD, CVI, and CVBS. This enables its utilization with diverse types of digital video recorders. Easy installation and integration into your existing surveillance system is possible with the Prime TCU-RS5042-AW28.

A smart infrared function on the camera adjusts the brightness of the LEDs based on the distance to the subject. This prevents overexposure of nearby objects and ensures optimal image quality.

This camera has a built-in microphone that can record audio, making it a good surveillance solution. The IP67 rating protects the camera from dust and water, so it can be used both inside and outside. The 3-axis construction of the camera allows for easy and flexible positioning, making it easier to capture the desired view.

The Prime TCU-RS5042-AW28 also has an OSD configuration menu in 11 different languages. With a 12VDC±25% power supply, it offers a reliable and stable performance. This camera is a high-quality surveillance camera that’s easy to use and delivers great visual and audio quality. Invest in the Prime TCU-RS5042-AW28 and enjoy peace of mind knowing that your property is under constant surveillance.

Datasheet

Download

Upgrade your security with the Prime TCU RS5042-AW28 5Megapixel Night Color Coax Turret Camera. NDAA compliant, 131.23 ft (40 m) IR distance, and 3-axis construction for easy operation, Datasheet.

Sensor
Pixel5Megapixel
Size1/2.9”
Minimum illumination0.005lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 101.5° V: 56.9° D: 117.4°
Illuminator
IlluminatorTwo white-light illuminators
Illumination distance40m
Lifetime≥60,000 hours
Video
Resolution1080P: 1920(H) × 1080(V)
720P: 1280(H) × 720(V)
Frame rateTVI:
NTSC: 1080P@30fps (default), 720P@30fps PAL: 1080P@25fps, 720P@25fps
AHD:
NTSC: 1080P@30fps, 720P@30fps
PAL: 1080P@25fps, 720P@25fps CVI:
NTSC: 1080P@30fps, 720P@30fps
PAL: 1080P@25fps, 720P@25fps CVBS:
NTSC:960×480
PAL:960×576
Shutter timeNTSC: 1/30s–1/50000s PAL: 1/25s-1/50000s
Exposure modeFour modes: Global (default), BLC, HLC, DWDR
Day/Night24/7 color images
Digital noise reduction2D/3D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180° horizontal flip, 180° vertical flip
DefogDigital Defog
Audio
MicrophoneBuilt-in microphones
Camera audioTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-22 °F (-30 °C) to 140 °F (60 °C)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
Ingress protectionIP67 Ingress Protection
General
PowerDC 12V (±25%), with reverse polarity protection. Max 3.12W
MountSurface mount (default), optional junction box and wall mount bracket

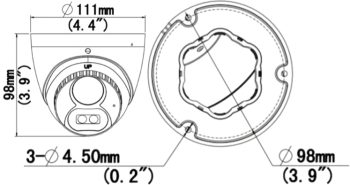

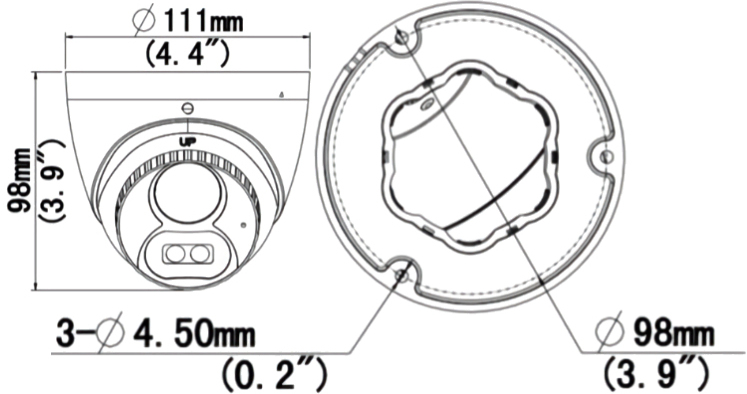

DimensionsΦ 4.3701 inches (11.1 cm) x 3.7795 inch (9.6 cm) (diameter x height)
MaterialMetal
Weight0.79lb (0.36 kilogram)
CertificationCB, CE, FCC

Additional information

Weight2 lbs
Dimensions6 × 6 × 4 in
