UPT-1330

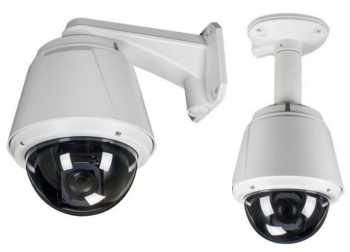

Eyemax UPT-1330 PTZ camera with wall and ceiling mounting options

UPT-1330

In stock

Eyemax UPT-1330 1080P 2 Megapixel  HD-SDI EX-SDI PTZ Camera X360 Dual Power Ceiling or Wall Mount

  • 2.0 Megapixel Full-HD Resolution
  • EX-SDI / CVBS Video Output
  • X320 Zoom Control (Optical X30 / Digital X12)
  • True Day & Night with ICR (IR Cut Filter)
  • DNR (Digital Noise Reduction)
  • WDR (Wide Dynamic Range)
  • Super Speed (500°/SEC.) with 360° Endless Pan Rotation
  • The Shortest Path with Vector Drive Technology
  • Micro Control (0.05°/sec.) with Micro Stepping Control Technology
  • Super Video Quality with RAW Video Data
  • OSD(On-Screen Display) Menu with Password Function
  • 8 Privacy Masks with Spherical Coordinates
  • 8 Sets of Scheduler Functions with RTC(Real-Time Clock)
  • 255 Presets (46 Presets reserved for Hot Keys) / 10 Swings / 4 Patterns / 8 Groups
  • Dual Power Input (AC 24V or DC 12V)
  • IP67  Ingress Protection

This product is no longer available.

Description

The Eyemax UPT-1330 is built for security environments where clarity, speed, and reliability matter most. This high-performance PTZ speed dome camera delivers crisp 1080p HD surveillance with a 2-megapixel Sony Exmor sensor. It captures sharp, detailed video for dependable monitoring day and night. Whether installed indoors or outdoors, it brings professional-grade coverage to demanding applications.

With a powerful 30x optical zoom lens ranging from 4.3 mm to 129 mm, plus an additional 12x digital zoom, the UPT-1330 offers an impressive 360x total zoom capability. That means distant subjects come into clear view with remarkable precision. As a result, it is easier to observe critical details across large areas without sacrificing image quality.

Designed for flexible integration, this camera supports both digital EX-SDI / HD-SDI and standard analog CVBS video outputs. This allows it to fit seamlessly into various surveillance systems.

Its smooth, ultra-fast movement reaches up to 500° per second, while continuous 360° endless pan rotation ensures no blind spot is unreachable. Micro Control technology enables refined tracking at speeds as low as 0.05° per second. In addition, Vector Drive technology helps the camera move along the shortest route to any preset position.

Built to withstand challenging environments, the Eyemax UPT-1330 features rugged IP67-rated housing for reliable outdoor performance in harsh weather conditions. Dual power support, along with a built-in heater and blower system, helps maintain stable operation across changing temperatures. Available with wall or ceiling mount options, it offers installation flexibility for a wide range of security layouts.

To further enhance image performance, the UPT-1330 includes true day and night functionality with an ICR mechanical cut filter, digital noise reduction, and wide dynamic range. These features work together to preserve visibility in low light, reduce visual clutter, and balance scenes with bright and dark areas.

Data Sheet

Download

Eyemax 1080P 2 Megapixel UPT-1330-W HD-SDI EX-SDI In Outdoor High Speed PTZ (Pan, Tilt, Zoom) Camera X360 Dual Power with Ceiling Mount Data Sheet

CameraImage Sensor1/3” Panasonic Progressive Scan CMOS Sensor
Pixels2,000K Pixels
Zoom30X Optical Zoom, 12X Digital Zoom
Focal LengthF1.6~4.7, f=4.3~129.0mm
Video Signal to Noise50 dB
Min. Working Distance.10mm (Wide), 1,000mm (Tele)
Angle of ViewH : 58.9°(Wide) ~ 2.11°(Tele), V: 45.3°(Wide) ~ 1.61°(Tele)
Focus ControlAuto / Manual / Semi-Auto
AE ModeAuto / Iris / Shutter / Manual / Brightness
White BalanceAuto / Manual (Red, Blue, Gain Adjustable)
Day & NightAuto / Day / Night (ICR)
Minimum Illumination0.5 Lux (Color) / 0.001 Lux (B/W, DSS)
BLCON / OFF
WDRON / OFF
DeFogON / OFF
ApertureAdjustable
NR (Noise Reduction)Yes
Privacy Zone8 Masks with Spherical Coordinate
StabilizationON / OFF
Pan/TiltRangePan : 360°(Endless) / Tilt : 90°
Pan/Tilt SpeedPreset : 500° / SEC.
Manual : 0.05° ~ 360° / SEC. (Zoom Proportional)
Swing : 10°~180° / SEC.
Preset209 Presets (Label, Independent Camera Parameter Setting)
Pattern4 Patterns (768 Commands(Approximate 5 Minutes) / Pattern)
Swing10 Swings
Group8 Groups (MAX. 40 Actions with the Combination of Preset, Pattern and Swing)
Schedule8 Schedules
Other FunctionsAuto Flip, Auto Parking, Power-up Action & etc.
VideoOutput2 x BNC (EX-SDI and CVBS)
EX-SDIEX-SDI (1080p 60/50/30/25, 720p 60/50/30/25fps)
CVBS1.0 Vp-p
OSDEnglish (Menu / Time / PTZ information etc, Password protection)
Real-Time ClockYes, RTC battery backup time : around 2weeks
Serial PortCommunicationRS-485 for PTZ Control
ProtocolPelco-D, Pelco-P Selectable
Sensor / AlarmSensor Input3 Inputs, Photo-Coupler Type, DC 5V~12V
Alarm Output1 Output, Relay Output, MAX. Load DC 24V / 1.0A or AC 125V / 0.5A

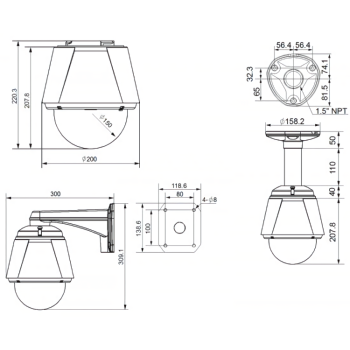

PhysicalMount BracketWall Mount Bracket or Ceiling Mount Bracket
DimensionDome : Ø 5.9 inches (14.99 cm)

Ceiling Mount: Ø 7.87 inches (19.99 cm) x 16.1 inches (40.89 cm) (H)

Wall Mount : Ø 11.8 inches (29.97 cm) x 12.2 inches (30.99 cm) (H)

WeightApproximately 7.9 lb (3.58 kg) with a wall mount bracket; 7.5 lb (3.4 kg) with a ceiling mount bracket
MaterialDome : Poly Carbonate / Housing : Aluminum
Rated PowerDual Power Support : DC 12V / 1.8A or AC 24V / 2.0A
WaterproofIP 67 Level
FanAlways ON
HeaterOperation Start from internal temperature 50°F (10°C).
Operating Temp. -22°F (-30°C) ~ 122°F ( 50°C)
