-40%

TVST-TD2716-N5A

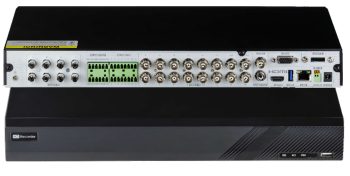

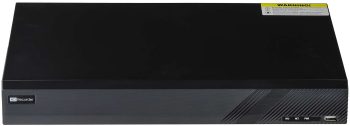

Telpix TVST-TD2716-N5A 16Channel (8 IP + 16 Coax Channel to IP) 5MP Penta-brid DVR, featuring AI smart motion detection and perimeter protection. Supports multiple formats and up to 24 IP channels. HDMI, VGA, and eSATA ports for easy connectivity Up to 20 Terabyte Storage.

TVST-TD2716-N5A

Original price was: $399.99.Current price is: $239.95.

In stock
0 out of 5

Original price was: $399.99.Current price is: $239.95.

Eyemax TVST-TD2716-N5A 16 Channel 5 Megapixel Penta-brid DVR System with AI Functions

  • Supports 16 Channel TVI/AHD/CVI 5MP / 4MP / 1080P / 720P / WD1 video input
  • Supports 8 Channel 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
  • 8-channel analog video input can be switched to 8-channel IP video input
  • Standard H.265 high-profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
  • Multi-mode recording: manual / timed / motion /sensor / AI recording
  • Playback : 16 Channel simultaneously playback
  • Search: time slice, time, event, tag, and smart search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
  • Support remote network transmission and remote surveillance with mobile device
  • Authorization management, log review and device status review
  • 1080P output, true high-resolution display
  • Supports PTZ preset and auto-cruise, up to 255 presets and 8 cruises
  • Supports NAT function and QR code scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Android OS
Eyemax LogoCollsam Security NDAA

Description

Eyemax TVST-TD2716-N5A 16 16CH 5MP Penta-brid DVR System, the ultimate surveillance solution for your home or business. This new camera has AI Smart Motion Detection and Perimeter Protection to help you see things more closely. This DVR system can record many types of cameras with up to 5-megapixel resolution and 24 channels. It’s very versatile and good quality.

One of the most impressive features of the Eyemax TVST-TD2716-N5A is its AI Smart Motion Detection. Advanced algorithms allow you to filter out false alarms and focus on real threats with this intelligent function. This saves you time and makes sure you know if something strange is happening on your property. The Perimeter Protection feature uses virtual tripwires and intrusion detection to make motion detection even more accurate and effective.

This DVR system can handle many cameras, like TVI, AHD, CVI, IP, and 960H. You can mix and match different types of cameras to create a customized and comprehensive surveillance system. With a maximum resolution of 5 Mega Pixels, you can see everything in your property clearly.

The Eyemax TVST-TD2716-N5A is also equipped with H.265 compression, which is the most advanced video compression technology currently available. This allows you to store more footage without sacrificing image quality, saving you both time and storage space. The DVR system also has HDMI and VGA outputs, allowing you to connect it to a monitor or TV for live viewing or playback.

The Eyemax TVST-TD2716-N5A also offers 2 eSATA ports and 2 SATA ports, allowing you to expand the storage capacity as needed.

The maximum 24 IP channel capacity, with 8 IP and 16 coax channels, means that you can connect numerous cameras to the DVR system, making it ideal for larger properties or businesses.

With its advanced AI functions, support for multiple camera types, and high-resolution capabilities, the Eyemax TVST-TD2716-N5A is a top-of-the-line DVR system that offers unmatched surveillance performance and reliability.

Datasheet

Download

Telpix TVST-TD2716-N5A 16Channel (8 IP + 16 Coax Channel to IP) 5MP Penta-brid DVR, featuring AI smart motion detection and perimeter protection. Supports multiple formats and up to 24 IP channels. HDMI, VGA, and eSATA ports for easy connectivity Up to 20 Terabyte Storage, Datasheet.

System
OSEmbedded Linux
Video
Analog Video InputBNC × 16
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP@20fps; 4MP/1080P/720P/WD1@30fps (live)
IP Video Input8 Channel (up to 16 Channel)
Up to 5MP@30fps
Total Input24 Channel
OutputHDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1: CVBS (used as the main or spot output)
CompressionH.264/H.265/H.265+
Multiscreen Display1/4/6/8/9/13/16/25
Audio
InputRCA × 8
OutputRCA × 1 (linear, 600Ω)
Two-way audioTake up channel one audio input
CompressionG.711(U/A)
Record
Resolution5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Frame RateAnalog Channel: 5MP Lite@10fps (PAL/NTSC); 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC); 1080P Lite/720P/WD1/D1@25fps (PAL)/30 fps (NTSC); IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate32Kbps ~ 5Mbps
ModeManual, timer, motion, smart event
Playback
Playback16 Channel
SearchTime slice / time / event / tag search
Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
FunctionPlay, pause, FF, FB, digital zoom, etc.
Alarm
ModeManual, motion, exception, smart event
Input16 Channel
Output4 Channel
AI Function
Smart Motion Detection Performance16 Channel
Perimeter Protection Performance1 Channel
Network
InterfaceRJ 45 1000Mbps × 1
ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP
Incoming Bandwidth32Mbps (max. 64Mbps)
Outgoing Bandwidth96Mbps
Client ConnectionMax. 10 users access
Mobile Device
OSiOS, Android
Storage
HDDSATA×2, up to 10TB per HDD; E-SATA×1
Backup
Local BackupU disk, USB mobile HDD
Network BackupYes
Port
RS 485Yes (half-duplex), connect to PTZ or keyboard
USBUSB 2.0 × 1; USB3.0 × 1
Remote ControllerOptional
Others
Power SupplyDC12V/4A
Consumption≤ 15W (without HDD)
Dimensions (W × D × H)14.96 inches (38 cm) × 14.49 inches (36.8 cm) × 1.77 inches (4.5 cm)
Working Environment14°F (-10°C) ~ 122°F (50°C), 10% ~ 90% (humidity)
CertificateCE, FCC
Environmental ProtectionDirective EU RoHS, WEEE, REACH

Additional information

Weight12 lbs
Dimensions17 × 17 × 3 in
