AVST-FD2704

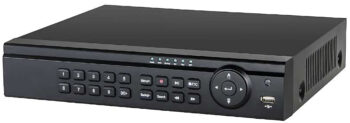

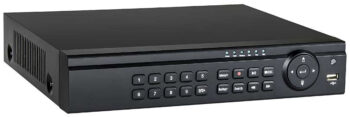

Upgrade your security system with the Eyemax AVST-FD2704, a 4-channel 1080p Hybrid DVR that supports multiple camera styles and offers automatic signal recognition. With high-definition recording and efficient storage, this DVR is a must-have for any surveillance setup. Order now and receive an IR remote and USB mouse for easy navigation.

AVST-FD2704

Original price was: $149.95.Current price is: $56.00.

In stock

Original price was: $149.95.Current price is: $56.00.

Eyemax AVST-FD2704 4CH FD Series 1080P Hybrid Security DVR System

  • 4 CH A-HD Video Input, 4 CH 1080P / 720P Recording
  • 4 CH DVR supports 1 CH IPC 1080P/960P/720P/WD1/D1 recording
  • Adopt the standard H.264 high-profile compression format to get high-quality video at a much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows-style operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback: 4 CH simultaneous playback
  • Search: time / calendar, events ( sensor, motion )
  • Express and flexible backup via USB, network
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browser, and CMS supported
  • Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
  • Dual stream technology to encode the recording stream and network stream respectively.
  • User can adjust network stream to fit bandwidth without changing recording quality.
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • HDMI 1080P output, true high-resolution display
  • Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
  • Powerful smart phone surveillance supporting iPhone, Android
  • Support NAT function, support QR code scanning by mobile phone
Eyemax LogoTelpix Electronics Inc. is an established brand primarily known for manufacturing and supplying hardware within the closed-circuit television (CCTV) and video surveillance industry. Active for over 16 years, the brand provides foundational infrastructure components for security systems, including camera components and robust mounting hardware. Produces specific components: an analog coaxial camera, engineered for low-noise, high-definition video transmission over standard coaxial setups. Manufactures telephoto and security camera lenses. Heavy-duty hardware TV mounts for 37–70-inch screens and dual back-to-back screen configurations designed for security control centers. Full-motion, tilting, and 180° swiveling monitor arms built to hold displays.

Description

The Eyemax AVST-FD2704 is a versatile 4-channel 1080p Hybrid Security Digital Video Recorder (DVR). It serves as the perfect bridge for security systems.

With this DVR, users can deploy different surveillance camera styles over a single recording interface. This makes it the ideal solution for any security setup.

The AVST-FD2704 supports Analog, 960H, A-HD (Analog High Definition), and IP Network cameras. Users can mix and match camera styles depending on their individual needs.

One of the standout features of the Eyemax AVST-FD2704 is its automatic camera signal recognition. This means that the DVR can self-detect the camera signal type without the need for manual configuration. As a result, this saves time and effort and ensures that the system is set up correctly. It captures high-quality footage from each camera.

With the Eyemax AVST-FD2704, users can expect high-definition 1080p recording across all four channels at up to 30 frames per second (fps). This means that every detail is captured clearly and accurately. That makes it easier to identify and analyze any potential security threats. Plus, with the H.264 high-profile compression standard, the DVR can maximize system storage. It still preserves the clarity of the video footage.

The Eyemax AVST-FD2704 comes equipped with 1 internal SATA port, which supports hard drive installations. Users have the option to purchase the DVR with a pre-configured hard drive, typically with a capacity of 2 TB. They can also install their own hard drive. Therefore, this allows for plenty of storage space to store hours of high-quality video footage.

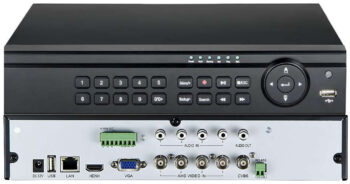

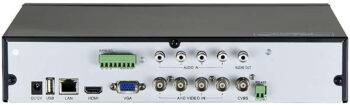

In terms of connectivity, the Eyemax AVST-FD2704 features 4 BNC channel inputs, 1 HDMI port, and 1 VGA port for local screen displays. Additionally, it has 1 channel audio input and 4 audio outputs.

Datasheet

Download

Eyemax AVST-FD2704, a 4-channel 1080p Hybrid DVR that supports multiple camera styles and offers automatic signal recognition. With high-definition recording and efficient storage, this DVR is a must-have for any surveillance setup. Datasheet

Brochure

Download

Eyemax AVST-FD2704, a 4-channel 1080p Hybrid DVR that supports multiple camera styles and offers automatic signal recognition. With high-definition recording and efficient storage, this DVR is a must-have for any surveillance setup. Brochure

SYSTEM
CompressionStandard H.264 High Profile
CPUCortex A9
OSEmbedded Linux
VIDEO
InputBNC × 4
IP Input/Access BandwidthIPC × 1 / 6Mbps
OuputHDMI × 1: 1920 × 1080 / VGA × 1: 1920 × 1080 BNC × 1: used as CVBS output only
AUDIO
InputRCA × 4
OutputRCA × 1
2-way audioTake up channel one audio input
RECORD
Resolution1080P : 1920 × 1080, 720P: 1280 × 720
Frame Rate720P: 100 fps ( PAL ) 120 fps ( NTSC ) 1080P: 50 fps ( PAL ) 60 fps ( NTSC )
Bit Rate1 M ~ 4 Mbps
EncodeVBR / CBR
Quality6 Level
ModeManual, Timer, Motion, Sensor
File ManagerLock, unlock, reserving time
IP Input
Resolution1080P / 960P / 720P / WD1 / D1
Frame Rate1080P: 12 fps ( PAL ) 15 fps ( NTSC ) 960P/720P: 25 fps ( PAL ) 30 fps ( NTSC )
PLAYBACK
Playback4 CH
SearchTime / calendar search, event ( motion )
Smart SearchHighlighted date and time to display the channel record
FunctionPlay, Pause, FF, FB, Digital zoom
ALARM
ModeSensor, Motion, Video Loss
Input4 CH
Output1 CH
TriggeringRecord, PTZ move, alarm out, e-mail, etc
NETWORK
InterfaceRJ45 10M/100M/1000M adaptive ethernet network port × 1
ProtocolTCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Others10 users online, dual stream
CELLPHONE
OSiPhone, Andriod
FunctionMulti-screen surveillance ( for certain models) , record, snapshot, PTZ control, save the device list
I/O
HDDSATA × 1
RS485RS485 × 1, connect to PTZ or keyboard
USBUSB 2.0 × 2, one for mouse, another for USB backup device
OTHERS
Power SupplyDC 12V
Consumption< 6W ( without HDD )
Dimensions (W × D x H)10.4 inches (26.42 cm) × 8.27 inches (21.01 cm) × 1.65 inches (4.19 cm)
Work Environment14°F (-10°C) ~ 122°F  (50°C), 10% ~ 90% Humidity
