Eyemax UVST-MAGIC-U32-4M Reliable 32-Channel Recorder

Upgrade your security surveillance with Eyemax UVST-MAGIC-U32-4M, a 32-channel DVR system supporting multiple camera technologies up to 4K resolution. Real-time recording, P2P remote access, and advanced features make it a top choice for professional use. #security #surveillance #DVR

UVST-MAGIC-U32-4M

0 out of 5

( There are no reviews yet. )

Price range: $1,399.00 through $4,017.95

Eyemax UVST-MAGIC-U32-4M 32CH Octa-Brid DVR System, 8 HDD Slots, eSATA, 16CH Audio, EX-SDI or HD-TVI Support

Support P2P ( No router Configuration )
Supports Cameras Upto 8MP 4K ( HD TVI, HD CVI )
EX SDI Supports upto 4MP
TVI Supports upto 4K
Composite/960H/Mixed
Allows to assign IP Camera on a selected channel (Max 8 channels)
Programmable Multi-Channel HD spot out (VGA / HDMI) or analog composite spot out
Full GUI with Alpha Blending
Individual Setting of Resolution, Frame Rates & Picture Quality
Digital Zoom (Live & Playback)
Covert, Disable & Private Function of Cameras
Motion Detection with 576 Area Settings
Relay Alarm Output
PTZ Control by RS-485
Deinterlacer upon Live &Playback
22 Languages with Full Graphic
Individual Network Port Setting
Auto Deletion
Import and Export the Configuration
POS Interface
Dual CODEC Engine for Independent Video Transmission
Made In Korea

SKU: UVST-MAGIC-U32-4M Categories: 32CH DVR Coaxial HD Recorders, HD Coaxial DVR Recorders Tags: 32 Channel DVRs, Alarm Relay Outputs, Corner Mount Network Camera, Digital Zoom Live and Playback, Motion detection, NDAA Compliant;, POS Interface, PTZ control by RS-485, Seagate

Hard Drive

Description

The Eyemax UVST-MAGIC-U32-4M is a state-of-the-art 32-channel digital video recorder (DVR) system. It offers professional-grade security surveillance capabilities. Advanced surveillance scenarios are the focus of this DVR system. Therefore, it is suitable for a wide range of settings, including government facilities, commercial buildings, and even residential properties.

One of the key features of the Eyemax UVST-MAGIC-U32-4M is its support for various camera technologies up to 4K resolution. With 32 BNC inputs, this DVR system is capable of automatically detecting and supporting multiple camera types. For example, it supports Analog, 960H, HD-TVI (up to 4K/8MP), AHD, HD-CVI, EX-SDI (up to 4MP), HD-SDI, and up to 8 IP cameras on assigned channels.

In addition to its multiple camera technology support, the Eyemax UVST-MAGIC-U32-4M also boasts impressive output capabilities. It features 2 HDMI (Main Display or Programmable HD Spot) and 1 VGA (Main Display or Programmable HD Spot) outputs. These outputs support resolutions up to 4K (UHD), plus 1 composite (BNC) spot output.

This allows for crystal-clear video display on multiple screens simultaneously. Consequently, it provides users with a comprehensive view of their surveillance footage.

Furthermore, the UVST-MAGIC-U32-4M has sophisticated recording and playback features. It offers real-time recording and playback at various resolutions and frame rates, such as 480fps @ 1080p. This guarantees that no information is overlooked, giving users access to excellent video for analysis and supporting documentation. The DVR system also uses H.265 compression. This technique is renowned for using storage space effectively without sacrificing the quality of the videos.

Storage capacity is not an issue with the Eyemax UVST-MAGIC-U32-4M. It can accommodate 8 SATA + 1 eSATA up to 8 bays, with no capacity limit. This means that users can store large amounts of footage without having to worry about running out of space. Additionally, the DVR system features a convenient eSATA port for external storage expansion. This provides even more storage options for users.

Datasheet

Download

Upgrade your security surveillance with Eyemax UVST-MAGIC-U32-4M, a 32-channel DVR system supporting multiple camera technologies up to 4K resolution. Real-time recording, P2P remote access, and advanced features make it a top choice for professional use Datasheet.

Video

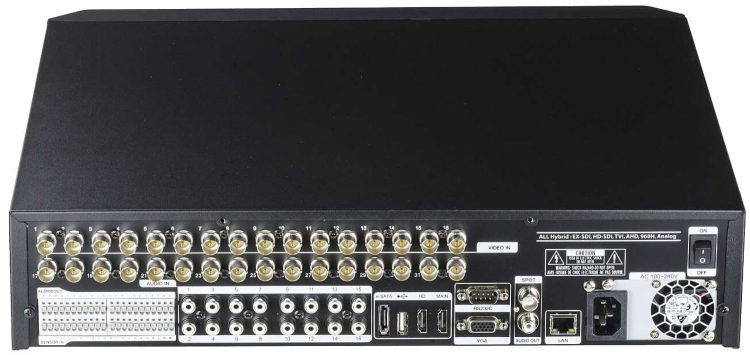

Camera input	32 BNC
Individual HD/Analog selectable	Analog, AHD, TVI, 3M TVI, HD-SDI, EX-SDI, IP, CVI (NOT OPEN)
Available source	TVI 720p25,30 / 1080p25,30 / 3MP 18 AHD / HD-SDI / EX-SDI 720p25,30 / 1080p25,30 Composite / 960H / Mixed
IP Camera Spec	ONVIF 2.3, RTSP, H.264, and dual stream use a gigabit Ethernet hub
IP Camera Num	4
IP Camera Restriction	Cannot display HD SPOT, SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image Cannot support Timestamp
Output	2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio
Audio input	16 RCA
Output	1 RCA
Sensor In	16 (NC, NO selectable)
Alarm out	2 Relay, 14 TTL
Operating System	Embedded Linux OS
Display
Speed	Real Time
Resolution (Pixel)	1280 × 1024, 1280 × 720, 1920 × 1080, UHD
Split screen	1,4,6,8,9,13,16,25,32
Main Recording
Resolution (Pixel)	1080p, 720p, 960 × 540 (1080p25,30) 720p, 960 × 540 (720p25,30) 960H, D1 (Composite, 960H)
Picture Quality	4 steps (Super, High, Medium, Low)
Speed	288fps@3MP TVI 480fps@1080p
Dual Recording
Resolution (Pixel)	480 × 256
Playback
Display	1,4,6,8,9,13,16,25,32
Search mode	Calendar, Event ,POS , Panorama, Thumbnail
Speed	80fps@3MP 120fps@1080p
Fast/Slow speed	Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface	Gigabit Ethernet
High Resolution (Pixel)	1080p, 720p(1080p25,30) 720p, 960 × 540 (720p25,30) 960H, D1 (Composite, 960H)
Low Resolution (Pixel)	480 × 256 (1080p25,30) 480 × 256 (720p25,30) CIF (Composite, 960H)
Speed	140fps@1080p
Protocol	TCP/IP, HTTP, DHCP
Application	Windows 7 / 8 (PC Client System & I.E.,)/MAC
Web Browser	Internet Explorer, Safari, Chrome, Firefox
Smartphone App	Android, iPhone for live and search
Backup
Interface	USB 2.0 × 3
Backup device	External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD	8 SATA + 1 eSATA(8 bays, 12 TB Ea.)
Other
Power Consumption	280W
Operating Temperature	41 °F (5°C) ~ 104 °F (40 °C)
Relative Humidity	Maximum 80% non-condensing
Dimension W × D × H	16.93 inches (43 cm) x 16.54 inches (42.01 cm) x 3.46 inches (8.79 cm)

Additional information

Weight	22 lbs
Dimensions	22 × 22 × 11 in
Hard Drive	No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive, 24 TB Hard Drive, 36 TB Hard Drive, 48 TB Hard Drive, 60 TB Hard Drive, 72 TB Hard Drive, 84 TB Hard Drive, 96 TB Hard Drive
