TVST-TR8732CN-D
Price range: $1,121.95 through $1,623.95
Eyemax TVST-TR8732CN-D 32CH 4K CCTV DVR Supports Cameras Up to 8MP, 4K.
- 32 CH TVI/AHD/CVI 8MP/5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
- 32 CH DVRs support 8 CH 8MP/5MP/4MP/3MP/1080P/960P/720P IP video input
- 8CH analog video input can be switched to 8CH IP video input
- Adopt the standard H.265 high-profile compression format to get high-qualityvideo at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-type recording: manual / timed / sensor / motion /AI recording playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag and smart search
- Express and flexible backup via USB, network and so on
- Supports local preview, record, playback and backup
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Multi-user online simultaneously
- Authorization management, log review and device status review
- 4K output, true high-resolution display
- Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Supports RAID 0, 1, 5, 6, 10
- Supports NAT function and QR code scanning by mobile phones
SKU: TVST-TR8732CN-D
Categories: 32CH DVR Coaxial HD Recorders, HD Coaxial DVR Recorders
Tags: NDAA Compliant;, Seagate- Description
- Product Documents
- Specifications
- Additional information
- Reviews (0)
Description

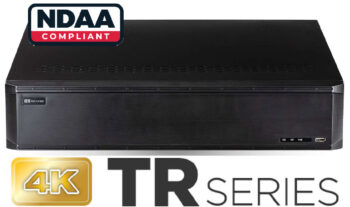

Introducing the Eyemax TVST-TR8732CN-D, a cutting-edge 32-channel 4K Penta-brid Digital Video Recorder (DVR) from the highly regarded Eyemax SuperLive Plus TR Series. This high-performance DVR is a game-changer in the world of security systems.
It seamlessly combines traditional analog setups with modern high-definition and internet protocol (IP) surveillance. In addition, it supports five video signals including TVI, AHD, CVI, network IP, and older 960H/CVBS analog cameras. This DVR has been designed to cater to the diverse needs of its users.
Designed to meet the demands of high-resolution surveillance, the Eyemax TVST-TR8732CN-D boasts an impressive 32 analog BNC channels and the capability to natively support up to 8 additional IP channels. This configuration allows for a total of 40 channels. As a result, it is an ideal choice for large-scale security installations.
The DVR also offers configurations for high-definition security cameras. It supports resolutions of up to 8MP (4K), providing superior image quality for enhanced monitoring and surveillance.
One of the key features of the Eyemax TVST-TR8732CN-D is its utilization of the H.265 compression format. This modern codec reduces bandwidth and storage consumption, ensuring that your recordings are of the highest quality while also minimizing storage costs.
This DVR also comes equipped with 8 internal SATA ports. Accordingly, it allows for large-scale hard drive installations of up to 8TB HDD models. This ensures ample storage space for all your security footage. Additionally, the DVR also offers RAID data reliability for added security and protection of your data.
Managing and monitoring your security system has never been easier with the Eyemax TVST-TR8732CN-D. With its 16-channel audio input configuration, you can map simultaneous audio to video channels. This provides you with a complete picture of your surroundings.
The DVR also features a 4K HDMI video output for high-resolution live monitoring. This feature allows you to keep a close eye on your property in real-time. Additionally, the secondary VGA port allows for dual display options, providing you with maximum flexibility and convenience.

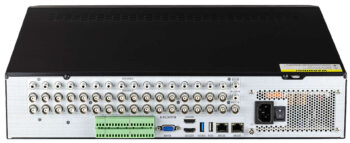

| Video | |
|---|---|
| Analog Video Input | BNC × 32 BNC interface (1.0Vp-p; 75Ω) |
| Analog Video Format | TVI/AHD/CVI : 4K@15fps; 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps (live) |
| IP Video Input | 8CH (up to 16CH) |
| IP Video Format | Up to 8MP@30fps |
| Total Input | 40CH |
| Output | HDMI 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 HDMI 2: 1920 × 1080 / 1280 × 1024 / 1024 × 768 768(HDMI 1 and HDMI 2 output different video sources) VGA × 1: 1920 × 1080 / 1280 × 1024 (VGA and HDMI1 output the same video source) BNC × 1: CVBS ( used as the main or spot output ) |
| Compression | H.264 / H.265 |
| Multi-screen Display | Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 AUX. Output: 1 / 4 / 6 / 8 / 9 Total output: 32+9 |
| Audio | |
| Input | RCA × 16 |
| Output | RCA × 1 (linear, 600Ω) |
| Two-way audio | Take up channel one audio input |
| Compression | G.711(U/A) |
| Record | |
| Resolution | 4K / 4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 1080P Lite / 720P / WD1 / D1 |
| Frame Rate (Analog) | 4K@8fps(PAL / NTSC); 4K Lite@12/15fps(PAL / NTSC); 5MP @12fps (PAL/NTSC); 5MP Lite@20fps (PAL/NTSC); 4MP/3MP@12/15fps(PAL / NTSC); 4MP Lite/1080P /720P/WD1/D1@25fp |
| Frame Rate (IP) | 25fps (PAL) / 30 fps (NTSC) |
| Bit Rate | 32Kbps ~ 5Mbps |
| Playback | |
| Playback | 16CH |
| Search | Time slice / time / event / tag /smart search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Function | Play, pause, FF, FB, digital zoom, etc. |
| Alarm | |
| Input | 16CH |
| Output | 8CH |
| AI Function | |
| Smart Motion Detection Performance | No |
| Perimeter Protection Performance | No |
| Network | |
| Interface | RJ-45 1000Mbps × 2 |
| Protocol | TCP / IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP |
| Incoming Bandwidth | 48Mbps (max. 96Mbps) |
| Outgoing Bandwidth | 192Mbps |
| Client Connection | Max. 20 users access |
| Mobile Device | |
| OS | iOS, Andriod |
| Storage | |
| HDD | SATA × 8, up to 10TB per HDD |
| RAID | RAID 0, 1, 5, 6, 10 |
| Backup | |
| Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes |
| Port | |
| RS-485 | Yes (full-duplex), connect to PTZ or keyboard |
| USB | USB 2.0 × 2 / USB 3.0 × 1 |
| Remote Controller | Optional |
| Others | |
| Power Supply | ATX-200W |
| Consumption | ≤50W ( without HDD ) |

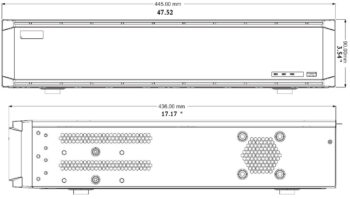

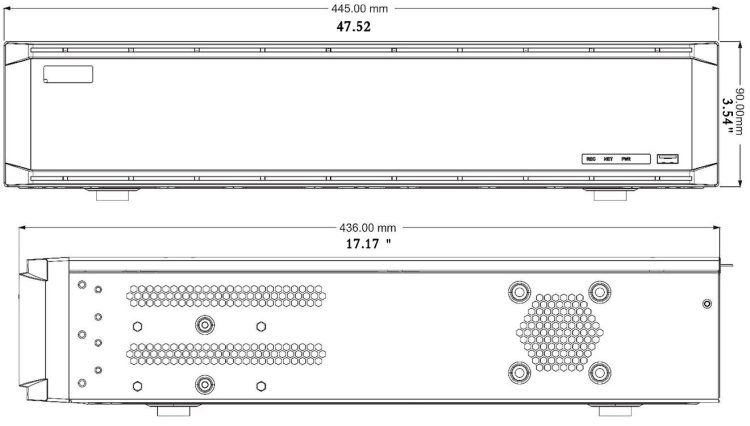

| Dimensions (W) × (D) × (H) | 17.52 inches (44.5 cm) × 17.17 inches (43.61 cm) × 3.54 inches (8.99 cm) |
| Working Environment | 14°F (-10°C) ~ 122°F (50°C), 10% ~ 90% (humidity) |
| Certificate | CE, FCC |
| Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH. |
Additional information
| Weight | 20 lbs |
|---|---|
| Dimensions | 18 × 10 × 4 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive, 24 TB Hard Drive, 36 TB Hard Drive, 48 TB Hard Drive, 56 TB Hard Drive, 64 TB Hard Drive, 76 TB Hard Drive, 88 TB Hard Drive |
