Eyemax TVST-TS2704-N5 Seamless Integration for 4K Cameras

Upgrade your security system with the Eyemax TVST-TS2704-N5 4-channel Penta-brid DVR. Record in 8MP (4K) with H.265 compression and support for both analog and IP cameras. Perfect for small businesses and homes. Shop now!

TVST-TS2704-N5

0 out of 5

( There are no reviews yet. )

Price range: $102.95 through $447.95

Eyemax TVST-TD2704-N5 4-Channel Penta-brid DVR System

4 Channel TVI / AHD / CVI (8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1) video input (*8MP only Channel 1 support)
Support 2-channel 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input by default
Adopt the standard H.265 high-profile compression format to get high-quality video at a much lower bit rate.
Intuitive and user-friendly Graphics User Interface (GUI), window-style operation by mouse
Multi-mode recording: manual, timer, or motion
Playback: 4-channel simultaneous playback
Search: time slice, time, event, tag, and smart search
Express and flexible backup via USB, network, and so on
Pentaplex: preview, record, playback, backup, and remote access
DHCP, DDNS, PPPoE network protocol,
Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
Dual-stream technology for local storage with high definition, remote network transmission, and remote surveillance with mobile devices
Multi-user online simultaneous authorization management, log review, and device status review
HDMI 4K output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises. Support NAT function and QR code scanning by mobile phones.
Powerful mobile surveillance by smartphones with iOS and Android OS

SKU: TVST-TS2704-N5 Categories: 4 Channel DVR Coaxial HD Recorders, HD Coaxial DVR Recorders Tags: 4 Audio Channel, Dual H.265 and H.264 Codecs, HDCVI/AHD/TVI/CVBS IP Camera Auto-detect, Seagate

Hard Drive

Description

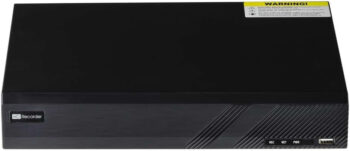

The Eyemax TVST-TS2704-N5 is a top-of-the-line 4-channel Penta-brid Digital Video Recorder (DVR) system that offers exceptional functionality and performance.

This advanced DVR system is capable of supporting up to 4 analog channels (TVI, AHD, CVI) and up to 2 IP video channels. As a result, it provides a total of up to 6 channels.

Whether you need to upgrade your existing analog system or integrate higher-resolution 4K cameras or IP cameras, this DVR system has got you covered. Furthermore, you can do this without replacing all existing wiring.

One of the most impressive features of the Eyemax TVST-TS2704-N5 DVR is its ability to record up to 8MP (4K) resolution for both analog (TVI/AHD/CVI) and IP cameras. This means that you can capture every detail in crystal-clear quality. Consequently, you get peace of mind and confidence in your security footage. Additionally, this DVR system utilizes H.265 high-profile compression. This technology effectively reduces file sizes while maintaining high-quality video footage.

Featuring a Pentaplex operation, this DVR system allows for simultaneous preview, record, playback, backup, and remote access. This means that you can keep an eye on your property. Moreover, you can access the footage from anywhere at any time. The Eyemax TVST-TS2704-N5 also offers multiple video output options, including HDMI (up to 4K output), VGA, and BNC. Therefore, you get flexible connectivity options to suit your needs.

Designed with convenience in mind, this DVR system typically includes one SATA slot that supports hard drives. This means that you can easily store all your recorded footage without the need for external storage devices. With some configurations supporting up to 10 TB of storage, you can store weeks or even months of footage. Thus, you do not have to worry about running out of space.

This DVR system is a popular choice for small business or residential security setups. It offers a perfect balance of affordability and functionality.

Whether you are upgrading your existing analog system or starting from scratch, the Eyemax TVST-TS2704-N5 is a versatile and user-friendly option. It will meet all your security needs.

With its advanced features and reliable performance, this DVR system is the perfect choice for anyone looking for a top-quality security solution.

Datasheet

Download

Upgrade your security system with the Eyemax TVST-TS2704-N5 4-channel Penta-brid DVR. Record in 8MP (4K) with H.265 compression and support for both analog and IP cameras. Perfect for small businesses and homes. Datasheet

Video
Analog Video Input	BNC × 4 BNC interface (1.0Vp-p; 75Ω) TVI / AHD / CVI: 4K@15fps, 5MP@20fps, 4MP / 3MP / 1080P / 720P / WD1@30fps (live)
IP Video Input	2CH (up to 6CH) Up to 8MP@30fps
Total Input	6CH
Output	HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (used as the main or spot output)
Compression	H.264/H.265
Audio
Input	RCA × 4
Output	RCA × 1 (linear, 600 Ω)
Two-way audio	Take up channel one audio input
Compression	G.711(U/A)
Record
Resolution	4K/4K Lite / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 720P / WD1 / D1
Frame Rate (Analog Channel)	4K@6/7fps (PAL/NTSC) (only CH1 support) 4K Lite @ 12 fps 15 fps (PAL/NTSC) 5MP@12fps (PAL, NTSC) 5MP Lite @ 20fps (PAL/NTSC) 4MP/3MP@12fps (PAL) / 15fps (NTSC) 4MP Lite/1080P/720P/WD1/D1@25fps (PAL) / 30fps (NTSC)
Frame Rate (IP Channel)	25 fps (PAL) / 30 fps (NTSC)
Bit Rate	32Kbps ~ 4Mbps
Mode	Manual, timer, motion, smart event
Playback
Playback	4CH
Search	Time slice / time / event / tag search
Smart Search	Highlight colors to display the camera record in a certain period of time; different colors refer to different record events
Function	Play, pause, FF, FB, digital zoom, etc.
Alarm
Mode	Manual, motion, exception, smart event
Input	4CH
Output	1CH
Network
Interface	RJ45 100Mbps × 1
Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, SMTP
Incoming Bandwidth	16 Mbps (Max. 40 Mbps)
Outgoing Bandwidth	40Mbps
Mobile Device
OS	iOS, Android
Storage
HDD	SATA × 1, up to 8TB per HDD; E-SATA × 1
Backup
Local Backup	U disk, USB mobile HDD
Network Backup	Yes
Port
RS-485	Yes (half-duplex), connect to PTZ or keyboard
USB	USB 2.0 × 2
Others
Power Supply	DC12V / 2A
Consumption	≤ 10W (without HDD)
Dimensions (W × D × H)	11.81 inches (30 cm) × 9.45 inches (24 cm) × 1.77 inches (4.5 cm)
Working Environment	14°F ~ 122°F, 10% ~ 90% (humidity)

Additional information

Weight	12 lbs
Dimensions	13 × 11 × 3 in
Hard Drive	No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive
