UVST-MAGIC-QX04
Price range: $333.95 through $670.95

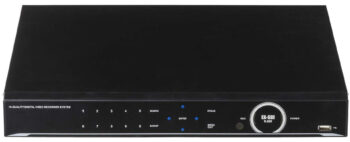

Eyemax UVST-MAGIC-QX04 Professional 4-Channel Octa-Brid DVR with 4K Output and Multiple Camera Technology Support
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi-User Authority up to 8 Users
- Deinterlacer upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Import and Export the configuration
- Interactive setup via network
- POS Interface
- Dual CODEC engine for independent video transmission
SKU: MAGIC-QX04
Categories: 4 Channel DVR Coaxial HD Recorders, HD Coaxial DVR Recorders
Tags: 4 BNC Connector Digital Zoom Embedded LINUX Gigabit Ethernet ports HD-SDI Seagate Standard H.264 / MPEG4, Seagate- Description
- Attachment
- Speciifications
- Additional information
- Reviews (0)
Description
The Eyemax UVST-MAGIC-QX04 is the ultimate choice for professional-grade surveillance needs. High-definition surveillance is the goal of this 4-channel Octa-Brid Digital Video Recorder (DVR). It is ideal for businesses, organizations, and homeowners looking to enhance their security measures.
One of the most impressive features of the Eyemax UVST-MAGIC-QX04 is its ability to support multiple camera technologies, including IP, HD-SDI, EX-SDI, TVI/CVI/AHD, and analog CVBS. This variety makes it a versatile option for any surveillance setup. Moreover, it ensures that you can easily integrate your existing cameras into the system.
The DVR also offers 4K video output, taking surveillance footage to the next level with crystal-clear, high-resolution images. With recording resolutions of up to 5MP/4K and H.265 compression, the Eyemax UVST-MAGIC-QX04 ensures efficient storage. This allows for longer recording periods without compromising on quality.
In terms of storage, this DVR is equipped with 2 internal SATA HDD slots and 1 eSATA port for external storage expansion. You can store a large amount of footage without worrying about running out of space. Additionally, the DVR features 4-channel audio input and 4-channel alarm input with 1 relay output. This provides a comprehensive surveillance system.

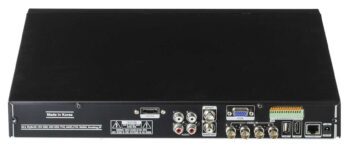

The Eyemax UVST-MAGIC-QX04 boasts multiple video outputs, including HDMI, VGA, and BNC, allowing for flexible connectivity options. The Gigabit Ethernet port enables remote viewing and management. This makes it easy to monitor your property from anywhere. It also supports Time Division Multiplexing, which allows for the transmission of multiple video signals over a single coaxial cable. This provides a cost-effective solution for larger surveillance setups.
With compatibility with Windows, macOS, and mobile platforms (Android/iPhone), the Eyemax UVST-MAGIC-QX04 offers convenience and accessibility for live viewing and searching. It includes advanced features such as motion detection with 576 area settings and digital zoom. These are available for live and playback. It also includes POS interface support, ensuring that every detail is captured and recorded.
| Video | |
| Camera input | 4 BNC |
| Individual HD/Analog selectable | Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP |
| Available source | HD-SDI/EX-SDI – upto 4M TVI/AHD/CVI/Analog – upto 5M (Only 1ch supports 8M 15 fps) |
| IP Camera Spec | ONVIF 2.3, RTSP, H.264, H.265 dual stream Use a gigabit Ethernet hub |
| IP Camera Num | 4 |
| IP Camera Resolution | up to 5M |
| IP Camera Restriction | Cannot set up Private ZONE Cannot support Timestamp |
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT) |
| Audio | |
| Audio input | 4 RCA |
| Output | 1 RCA |
| Sensor In | 4 (NC, NO selectable) |
| Alarm out | 2 relay, 2 TTL |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080, 2560 × 1440(4M), 3840 × 2160(UHD, Main HDMI only) |
| Split screen | 1,4 |
| Main Recording | |
| CODEC | H.264, H.265 |
| Resolution (Pixel) | 8MP or 1080p @8MP input 2,3,4,5MP or 720p @ 2,3,4,5MP input 720p or 960×540 @ 720p input 960H or D1 @ Composite, 960H input |
| Picture quality | 4 steps (Super, High, Medium, Low) |
| Speed | 60fps @ 4MP |
| Dual Recording | |
| CODEC | H.264, H.265 |
| Resolution (Pixel) | Not supported |
| Playback | |
| Display | 1,4 |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail |
| Speed | 60fps @ 4MP |
| Fast/Slow speed | Normal, REW & FF (recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x, 1/4x), Frame to frame, Pause |
| Network (Individual setting of resolution, frame rates and picture quality) | |
| Network Interface | Megabit Ethernet |
| High Resolution (Pixel) | same as Main Recording |
| Low Resolution (Pixel) | 640×352 @ 2,3,4,5,8MP, 720p CIF @ 960H, Composite |
| Speed | 40fps @ 1080p |
| Protocol | TCP/IP, HTTP, DHCP |
| Application | Windows 7 / 8 / 10 (PC Client system and I.E.,) / MAC |
| Web Browser | Internet Explorer, Safari |
| Smartphone App | Android, iPhone for live and search |
| Backup | |
| Interface | USB 2.0 × 2 |
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive |
| The number of HDD | 2 SATA or 1 SATA + 1 ESATA (up to 10TB) |
| Others | |
| Power Consumption | 60W |
| Operating Temperature | 32 °F (0°C) ~ 104°F (40 °C) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension | 14.96 inches (38 cm) × 13.86 inches (35.2 cm) × 1.99 inches (5.05 cm) |
Additional information
| Weight | 15 lbs |
|---|---|
| Dimensions | 18 × 17 × 6 in |
| Hard Drive | No Hard Drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive |
