0804-02T-DTAL

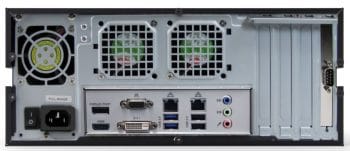

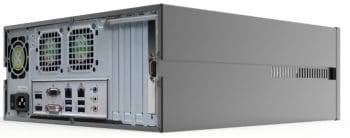

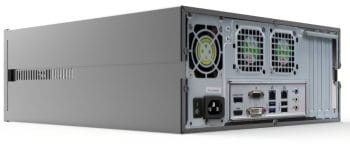

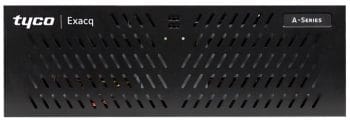

ExacqVision 0804-02T-DTAL, a powerful hybrid desktop recorder with 2 TB storage, 4 IP camera licenses, and 8 analog cameras. Includes pre-installed software, 3-year upgrades, and a hardware warranty. Trust Collsam Distribution for all your TYCO ExacqVision requirements Front View.

0804-02T-DTAL

Original price was: $5,660.00.Current price is: $3,499.95.

In stock

Original price was: $5,660.00.Current price is: $3,499.95.

Exacq 0804-02T-DTAL A-Series Hybrid Desktop Recorder

  • 2 TB A-Series Hybrid Desktop Recorder
  • Comes with 4 IP camera licenses (64 max)
  • Can support up to 8 analog cameras at 30 FPS
  • Pre-installed with exacqVision Professional server, client, web, and mobile software
  • Includes 3-year software upgrades and hardware warranty
  • Runs on Ubuntu Linux 20.04 on SSD
  • Features HDMI, DisplayPort, and VGA outputs (can use 3 outputs simultaneously)
  • Equipped with Dual NIC for network connectivity
  • Offers 2 multiplexed monitor outputs
  • Comes with keyboard and mouse
  • Distributed by Collsam Distribution for all TYCO ExacqVision surveillance needs
  • Hybrid recorder allowing for both IP and analog cameras
  • Can support up to 64 cameras, including 4 IP licenses
  • Real-time recording at 30 FPS for analog cameras
  • Pre-installed professional exacqVision software for easy setup and management
  • Multiple outputs for flexible video display options
  • Dual NIC for reliable network connectivity
  • Multiplexed monitor outputs for efficient surveillance monitoring
  • Comes with keyboard and mouse for convenient usage
  • Operating system: Ubuntu Linux 20.04 on SSD
  • Camera licenses 4 IP (64 max)
  • Camera support: Up to 8 analog cameras at 30 FPS
  • ExacqVision Professional server, client, web, and mobile software
  • Warranty 3-year software upgrades and hardware warranty
  • Outputs HDMI, DisplayPort, VGA (3 max simultaneous)
  • Connectivity Dual NIC
  • Monitor outputs 2 multiplexed outputs
  • Included accessories Keyboard and mouse
  • Hybrid recording capability for flexibility and cost-effectiveness
  • High storage capacity for extended video retention
  • Able to accommodate numerous cameras, including IP and analog
  • Real-time recording for accurate footage
  • Easy setup and management with pre-installed professional software
  • Multiple output options for versatile video display
  • Reliable network connectivity with dual NIC
  • Efficient surveillance monitoring with multiplexed monitor outputs
  • Convenient usage with included keyboard and mouse
Exacq video management and surveillance solutions at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Exacq 0804-02T-DTAL is a powerful and versatile hybrid desktop recorder perfect for all your surveillance needs. This recorder can handle up to 64 cameras and has 2 TB of storage. It can support 8 analog cameras at 30 frames per second, providing high-definition and smooth video quality.

This all-in-one system comes with Exacq Professional server, client, web, and mobile software. The software also includes a 3-year upgrade and hardware warranty, ensuring the longevity and functionality of your system. A stable and secure platform for your surveillance needs is provided by the Exacq 0804-02T-DTAL.

With various video output options, including HDMI, DisplayPort, and VGA, this hybrid desktop recorder is flexible and convenient. Dual NIC and two multiplexed monitor outputs allow for efficient and seamless monitoring of all your cameras. To make things easier, the system comes with a keyboard and mouse.

When it comes to your surveillance requires, you can depend on Collsam Distribution to provide you with the best solutions. Our goal is to offer the highest quality surveillance systems and accessories as an official distributor of TYCO Exacq products. Our team of experts can help you find the Exacq 0804-02T-DTAL that fits your needs.

The Exacq 0804-02T-DTAL is a top-of-the-line hybrid desktop recorder that combines high storage capacity, camera compatibility, and user-friendly software. Multiple monitor outputs and compatibility with the latest operating system make this recorder a great choice for any surveillance setup. Collsam Distribution is the best product and support for all your TYCO Exacq surveillance needs.

Additional information

Weight18.5 lbs
Dimensions11.75 × 15 × 5 in

Brand

Exacq

Exacq provides professional video surveillance and management solutions for businesses, enterprises, schools, healthcare facilities, retail environments, and other security applications. Its portfolio includes video management software, network video recorders, video storage solutions, and enterprise video surveillance technology.Video management software provides centralized tools for viewing, recording, searching, and managing surveillance video. Network video recorders combine recording hardware with exacqVision software for professional IP camera installations.Video storage solutions support applications that require reliable access to recorded surveillance footage. Enterprise video surveillance technology can support larger installations with multiple cameras, recorders, users, and locations. Exacq solutions are available from Collsam Security for professional security applications.
Exacq video management and surveillance solutions at Collsam Security

Exacq Video Surveillance Solutions

Exacq develops scalable video surveillance technology for security environments ranging from individual locations to large enterprise installations. The exacqVision platform combines video recording, management, storage, remote viewing, and system integration within a flexible surveillance environment.

exacqVision Video Management System

exacqVision provides a centralized platform for managing live and recorded surveillance video. Available software options support different system sizes, operational requirements, and security applications.The platform gives security professionals tools for viewing cameras, searching recorded video, managing events, and administering surveillance systems. In addition, scalable deployment options allow organizations to expand their systems as requirements change.

exacqVision Network Video Recorders

Exacq offers several recorder families for different surveillance requirements. Current options include X-Series, A-Series, Q-Series, and G-Series network video recorders.Available configurations support installations ranging from smaller surveillance systems to demanding enterprise environments. Therefore, system designers can select recording hardware according to camera count, storage capacity, performance, and scalability requirements.

Video Storage Solutions

Large surveillance installations can require substantial storage capacity and reliable access to recorded video. Exacq provides storage technologies designed to expand recording capacity and support longer video retention periods.Furthermore, centralized storage can help organizations manage recorded surveillance footage across larger security environments.

Enterprise Video Surveillance

Enterprise environments often require centralized administration across multiple surveillance servers and locations. Exacq provides technologies designed to simplify the management of larger video security deployments.These scalable solutions can support organizations with numerous cameras, users, recording servers, and geographically distributed locations.

Integrated Access Control

Video surveillance can also work with compatible access control technologies. Integration allows security personnel to associate video with access events and improve situational awareness around controlled entrances.As a result, operators can investigate security events using both surveillance video and relevant access information.

Remote Video Monitoring

Compatible systems can provide remote access to live and recorded surveillance video from computers, web browsers, and mobile devices. This flexibility allows authorized users to monitor security operations while away from the primary workstation.Remote capabilities can also help security teams respond more efficiently when monitoring multiple locations.

Exacq Solutions at Collsam Security

Collsam Security offers Exacq solutions for professional video surveillance applications. Customers can select video management, recording, storage, monitoring, and related technologies according to their security requirements.

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.
NDAA-compliant security products at Collsam Security
NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Reviews

There are no reviews yet.


Only logged in customers who have purchased this product may leave a review.

Maximum IP Cameras64
Maximum Analog Cameras8
Included IP Licenses4
Pre-Loaded VMS SoftwareProfessional Enterprise
Include SSA3 Years
Operating SystemLinux Ubuntu 22.04
RAIDNot Available
Maximum Storage24 TB
Maximum Hard Drives2
Typical Video Storage Rate250 Mbps (Windows)300 Mbps (Linux)
Local Client Display Rate (1080p)375 FPS (Windows)720 FPS (Linux)
CPUIntel Core i3 Intel Core i5 (Optional)Intel Core i7 (Optional)
RAM8 GB (16 GB Optional)
Operating System Drive256 GB SSD
Operating System RedundancyNot Available
Monitor OutputHDMI, DP, VGA3 Simultaneous
NIC1 × 2.5 Gbps, 1x 1 Gbps1 x 2.5 Gbps, 3 × 1 Gbps (Optional)
USB4 x USB 2.0, 2 x USB 3.0
Alarm InputsExternal USB I/O (Optional)
Alarm OutputsExternal USB I/O (Optional)
Audio Inputs8/16/32
Audio Outputs1
Analog Outputs1 (8-Channel), 2 (16-Channel), 4 (32-Channel)
DVDExternal (Optional)
AccessoriesKeyboard, Mouse
Dimensions (H × W × D)5 inch (12.7 cm) × 15 inch (38.1 cm)× 11.75 inch (29.84 cm)
Weight18.5 lb (8.39 kg) – 22.0 lb (9.98 kg)
Regulatory
Input Voltage120/240 VAC auto-sensing
Power SuppliesSingle
Power and Heat150 Watts/500 BTU/h (Max)110 Watts/370 BTU/h (Typical)
Operating Temperature40 °F (4.44 °C) – 95 °F (35 °C)
Warranty3 Years
