IFS02-D12-OIB4
Original price was: $703.99.$421.95Current price is: $421.95.Ea.
Illustra IFS02-D12-OIB4 2MP Outdoor Minidome
- 2MP video up to 60 fps
- 2.7–13.5 mm motorized P-Iris lens
- Flex AI person and vehicle analytics
- 50 m IR and 141 dB WDR
- IP66/IP67, NEMA 4X, IK10, PoE, and 24 VAC
- Description
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description

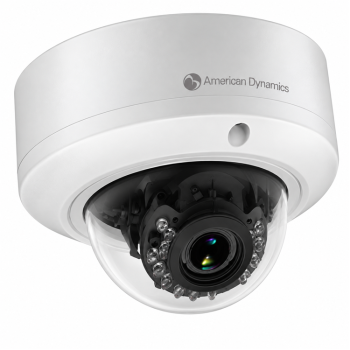

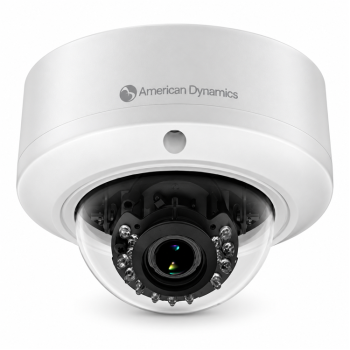

The Illustra IFS02-D12-OIB4 is an outdoor vandal resistant minidome. It is also an Illustra Flex Gen4 2MP minidome. This Illustra AI analytics camera uses a Sony 1/2.8-inch CMOS sensor. It delivers 1920 × 1080 video at up to 60 frames per second. A 2.7–13.5 mm motorized P-Iris lens adds one-touch autofocus. This PoE infrared dome camera supports 24 VAC power.
The Illustra IFS02-D12-OIB4 uses adaptive 850 nm infrared light that reaches up to 50 meters. True multi-shutter WDR provides up to 141 dB. Therefore, it balances bright and dark areas in one scene. Meanwhile, gyro-based image stabilization keeps video steady.
Flex AI tools sort people and vehicles. For example, they track perimeter activity and direction. In addition, rules cover dwell, lingering, entry, exit, crowds, queues, and removed objects. Users can set ten privacy and three motion zones. Thus, the Illustra AI analytics camera supports many projects.
The Illustra IFS02-D12-OIB4 supports H.265, H.264, and MJPEG compression. As a result, triple streaming serves viewing and recording needs. Corridor mode supports narrow scenes such as halls and aisles.
A microSDXC slot accepts cards up to 1 TB. TrickleStor recording protects video during network loss. The camera also provides one alarm input and one alarm output. It works with ONVIF Profiles S, G, T, and M.

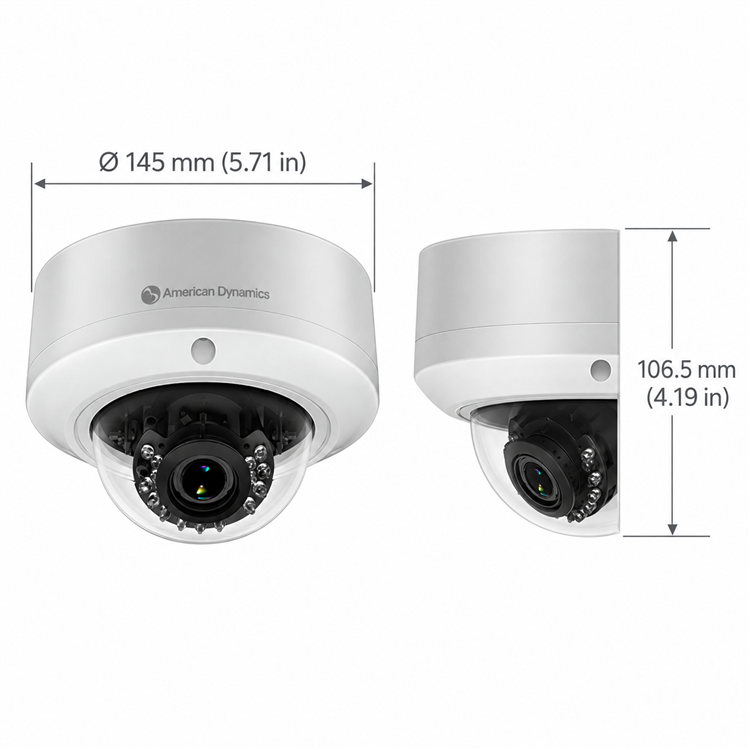

The Illustra IFS02-D12-OIB4 outdoor vandal resistant minidome has IP66, IP67, NEMA 4X, and IK10 ratings. As a result, its housing suits exposed locations. It operates from -58°F to 140°F. However, infrared turns off above 122°F. It measures 5.71 inches wide by 4.19 inches high without its mount plate.
Finally, secure boot, TLS, HTTPS, IPv6, and 802.1X help protect network access. Optional USB Wi-Fi can simplify setup. The Illustra IFS02-D12-OIB4 weighs 2.23 pounds. Overall, this Illustra Flex Gen4 2MP minidome and PoE infrared dome camera support dependable monitoring.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
Brand
Illustra
Illustra cameras give video for many types of sites. Illustra video surveillance fits stores, offices, schools, banks, clinics, and plants. Johnson Controls Illustra products include Illustra IP cameras and Illustra camera accessories. The line links clear network video with easy setup.
Three main groups serve a wide range of needs. These groups are Pro, Flex, and Essential. Buyers can choose dome, bullet, fisheye, and PTZ cameras. They can also choose panoramic and multi-sensor models.
Illustra video surveillance may include infrared light and motion alerts. It may also include wide dynamic range and corridor mode. Some Illustra security cameras give clear low-light video. Other models add smart video tools and strong compression. But features change from one model to another. Buyers should check each product page before making a choice. Some current models can sort objects with AI. Also, select tools can lower network and storage use.
Illustra IP cameras work with modern video systems. For example, they can work with exacqVision, victor, and VideoEdge. So teams can build a small system first. They can then grow that system over time.
Collsam supplies verified Illustra cameras for pro security jobs. The range may include cameras, video encoders, and mount plates. It may also include pendant parts and clear bubbles. Wall, pole, and corner mounts may be offered too. These items form the main Illustra camera accessories range.
Also, buyers should compare each model with care. Check image size, lens type, light level, and weather rating. Check the mount, recorder, power, storage, and network needs. Finally, review each Johnson Controls Illustra product page for confirmed facts. Check included parts, stock, and price. Contact Collsam for help choosing the right Illustra item. Before setup, make sure all chosen parts can work together.
