IPS02-D17-OI04

0 out of 5

( There are no reviews yet. )

Original price was: $1,327.00.Current price is: $823.95.

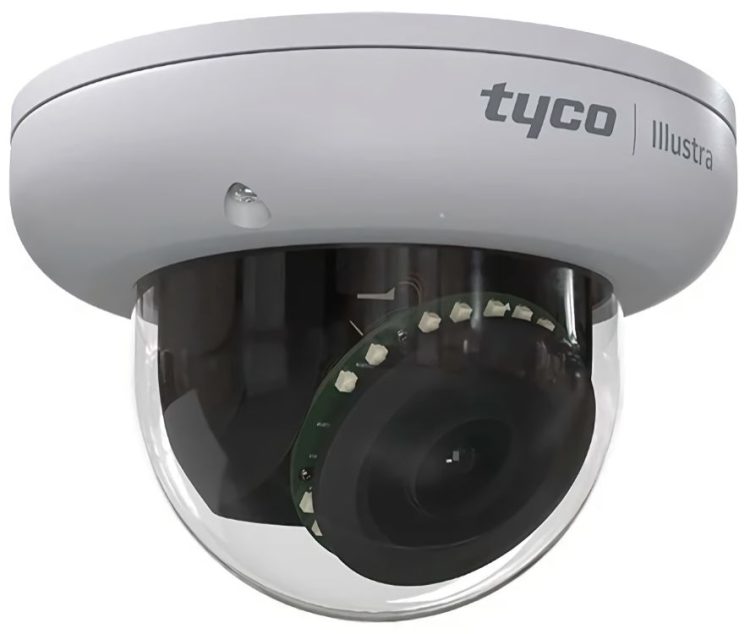

ExacqVision IPS02-D17-OI04 Illustra Pro Gen4 2MP Mini Dome, 7-22 mm, Outdoor.

Built-in AI delivers accurate object classification, powerful situational awareness, and security automation

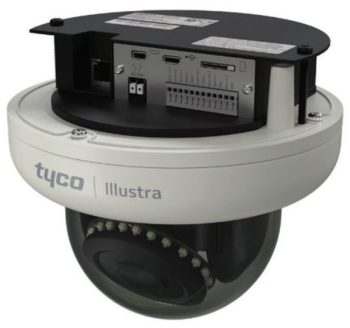

Integrated recess mount, backbox, a range of IO options including Micro HDMI plus WiFi configuration via the Illustra Tools App
Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming
Ultra-low light capabilities to maintain a color image quality without IR

SKU: IPS02-D17-OI04 UPC: 840456175224 Categories: 2 MegaPixel Network IP Cameras, Network IP Cameras Tags: 1/2.8" SONY CMOS IMX327, 2.7-13.5mm Motorized Zoom Lens, H.264 H.265 MJPEG IntelliZip, IK10 Vandal Resistance, IP66/IP67 Ingress Protection, NDAA Compliant, ONVIF profiles S, PoE (IEEE 802.3af), PoE (IEEE 802.3at), TDN (True Day and Night), True WDR (True Wide Dynamic Range)

Description

The ExacqVision IPS02-D17-OI04, also branded under Tyco Illustra, is a powerful 2-megapixel network mini-dome camera designed for demanding indoor and outdoor surveillance applications. Moreover, as part of the Illustra Pro Gen4 series, it combines high-resolution imaging, advanced analytics, and rugged construction. This combination delivers dependable performance in a wide range of security environments.

With 1080p resolution and smooth video capture up to 60 frames per second, this camera provides clear, detailed footage that is ideal for monitoring fast-moving activity. Additionally, its 7–22 mm motorized varifocal lens offers flexible focal length adjustment. As a result, it is easy to fine-tune the field of view for both wide-area coverage and more focused observation.

Built to withstand harsh conditions, the IPS02-D17-OI04 features an IP67 weatherproof rating and IK10 vandal-resistant housing. This durable design helps protect the camera against rain, dust, and physical tampering. Thus, it is a strong choice for locations where reliability and resilience are essential.

The camera also includes True Day/Night functionality and integrated IR LEDs with illumination coverage up to 50 meters. Therefore, it ensures effective visibility in low light and complete darkness. Ultra-low-light color optimization further enhances image quality in challenging lighting environments. This feature helps capture useful detail when it matters most.

Beyond image quality, the camera delivers on-camera intelligence with accurate object classification, specialized automation, and deep situational awareness. Furthermore, it supports configurable scene optimization profiles tailored for complex environments such as gaming areas or automatic License Plate Recognition (LPR). This capability allows the camera to adapt to specific surveillance needs.

For flexibility in deployment and integration, the IPS02-D17-OI04 supports H.264, H.265, and MJPEG compression codecs. It also includes rich hardware I/O options, a micro HDMI port, and built-in Wi-Fi compatibility. As a result, technicians can conveniently configure and align the camera using the Illustra Tools smartphone application. This makes installation and setup faster, easier, and more efficient.

Video Compression	H.264 / H.265 / MJPEG / IntelliZip
Max Frame Rate	2MP @ 60fps
Resolution & Aspect Ratio	1920×1080 (1080p) 16:9 1664×936 (HD+) 16:9 1280×720 (720p) 16:9 1024×576 (PAL+) 16:9 960×544 (qHD) 16:9 816×464 16:9 640×360 (nHD) 16:9 480×272 16:9
Imager	Sony IMX327
Image Orientation Settings	None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left)
Video Streams	Quad Streaming
Lens Type	Motorized Varifocal and Focus, P-Iris
Focus Control	One-Touch Auto Focus or Remote Adjustment
Focal Length	2.7-13.5mm	7-22mm
Field of View Wide (H/V)	112°/58°	40°/21°
Field of View Telephoto (H/V)	35°/20°	18°/10°
Aperture	f/1.4 (W)	f/1.7 (W)
	f/2.8 (T)	f/2.8 (T)
Minimum Illumination
Color, 1/4s, 30 IRE, AGC	0.01 Lux	0.02 Lux
B/W, 1/4s, 30 IRE, AGC	0.0001 Lux	0.0002 Lux
W/IR	0.0 Lux	0.0 Lux
IR Distance	50m
Dynamic Range	True WDR 120 dB Technologies
Day/Night	True Day/Night CF Removal
Shutter Speed	≥ 1/10,000 to 1/4 s
ONVIF-Compliant	Profiles S
Video Intelligence Analytics	Linger, Exit, Direction, Abandoned/Removed objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter
Object Classification	Classes: Person, Bicycle, Bus, Car, Motorbike Rules: Object Detected, Perimeter, Linger, Dwell
Motion Detection Zones	3
Face Detection	Yes
Blur Detection	Yes
Privacy Zones	8
Alarm Input/Output	2 input, 2 output
Video Output	HDMI
Audio	Bi-directional; 1 input, 1 output. Built-in microphone.
Simultaneous Users	10
Supported Languages	Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, English (default), French, German, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
Network
Ethernet Interface	10/100/1000 BaseT, RJ-45, Auto-Negotiation
Supported Protocols	TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP
Configuration Management
Web Browsers	IE 9 and above, Firefox, Safari, Chrome
Security	Secure Boot, Enhanced Security Mode (forces complex passwords, HTTPS and disables discovery); TLS 1.2 (256-bit cipher minimum); Security Overview Page (status and configuration); RTSP Authentication; IEEE 802.1X Client, Remote Accessible Audit Logs, Role-Based Access Control, and Video Encryption for local storage and streaming.
Onboard Storage
Card Support	micro SDXC up to 1TB
Pre-Alarm Recording	Yes
Recording Format	MP4 File Format
Recording Trigger	Dry Contact Alarms, Motion Detection, Face Detection, Video Intelligence, AI Object Classification, Periodic Events
TrickleStor	Yes, encrypted storage
Electrical
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC Max Draw: PoE 12.95W, 24 VAC 16.5W
Physical

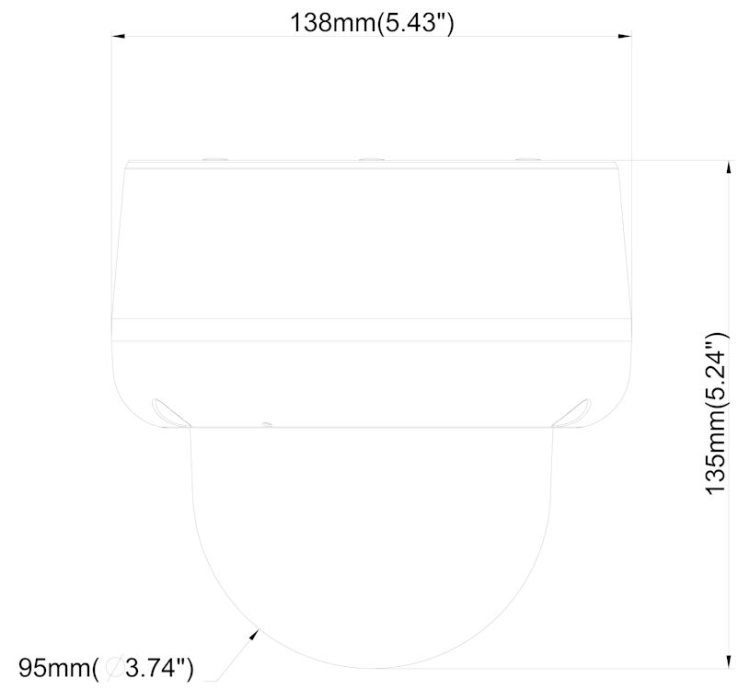

Dimensions (RxH)	Ø138 x 135mm
Weight	3.31 lbs (1.50 kg)
Housing Color	Signal White — RAL 9003
Operating Temperature	-58°F (-50°C) to 149°F (65°C)
Humidity	Up to 90% Non-Condensing
Vandal Resistant	IK10
Outdoor Rating	IP66/IP67
Regulatory
Safety	EN60950-1; UL60950-1; IEC 60950-1; CSA 22.2 No. 60950
Emissions	FCC Part 15 Class A; EN55032 Class A; AS/NZS CISPR 32 Class A; ICES-003/NMB-003 Class A
Immunity	EN55024; EN50130-3
Enviornment	RoHS; WEEE
