EC-D4F28M

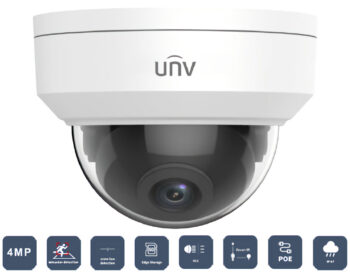

Uniview EC-D4F28M: 4MP Ultra 265 Cameras with Smart IR, up to 30m IR Distance, 128GB MicroSD, PoE and 3-Axis. High-Quality Images and H.265, H.264, MJPEG.

EC-D4F28M

Original price was: $259.00.Current price is: $207.20.

In stock

Original price was: $259.00.Current price is: $207.20.

Uniview EC-D4F28M-V3 UNV 4MP Basic Dome, 2.8mm(WDR+Mic)

  • Image Quality
    • 4 Megapixels (2560×1440)@25/20fps
    • 3 Megapixels (2304×1296)@30/25fps
    • 2 Megapixels (1920×1080)@30/25fps
    • 720P (1280×720)@30/25fps
  • Compression
    • H.265
    • H.264
    • MJPEG
  • Smart IR Up to 30m (98.43 ft) IR Distance
  • Supports 128 GB MicroSD Card
  • PoE Power Supply
  • 3-Axis
Compare

Description

Welcome to the Uniview EC-D4F28M security camera! This high-performance model is perfect for your home or business security systems. The EC-D4F28M features a 1/3” CMOS sensor that allows for outstanding image quality and resolution up to 4 megapixels (2560×1440) at 25/20 fps, 3 megapixels (2304×1296) at 30/25 fps, 2 megapixels (1920×1080) at 30/25 fps, and 720P (1280×720) at 30/25 fps. This camera is capable of recording in the Ultra 265. H.265, H.264, and MJPEG formats.

One especially impressive feature of this camera is its Smart IR technology, which allows for superior night vision. With the Smart IR, you’ll be able to monitor your property up to an impressive 30 meters (98.43 feet) away! With this much coverage, you can rest assured that your property will remain secure even in the darkest of hours.

The EC-D4F28M also offers a range of other great features. The camera supports up to 128 GB of microSD card storage, making it easy for you to save and access your recordings. Additionally, PoE power supply is supported, allowing for easy installation and power management.

Moreover, the EC-D4F28M is as durable as it is reliable. With a high-quality metal housing and an IP67 waterproof rating, this camera is well-suited for outdoor use. Plus, the camera offers a wide operating temperature range from -30 °C to 60 °C, ensuring that it will keep functioning in extreme weather conditions.

Overall, the Uniview EC-D4F28M is a powerful, feature-rich camera that is perfect for any home or business surveillance needs. The outstanding imaging quality, reliable performance, and robust design make this an excellent choice for your security system. With the EC-D4F28M, you can rest easy knowing that your property is safe and secure.

Datasheet

Download

Uniview EC-D4F28M: 4MP Ultra 265 Cameras with Smart IR, up to 30m IR Distance, 128 GB MicroSD, PoE and 3-Axis. High-Quality Images and H.265, H.264, MJPEG Datasheet.

User's Manual

Download

Uniview EC-D4F28M: 4MP Ultra 265 Cameras with Smart IR, up to 30m IR Distance, 128 GB MicroSD, PoE and 3-Axis. High-Quality Images and H.265, H.264, MJPEG User's Manual.

Additional information

Weight2 lbs
Dimensions6 × 6 × 6 in
Camera
Sensor1/2.9”, progressive scan, 4.0 megapixel, CMOS
Minimum IlluminationColor: 0.01 lux (F2.0, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto-switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan 8° to 360°Tilt: 0° to 68°Rotate: 10° to 360°
S/N>52dB
WDR120dB
Lens
Lens Type2.8mm @F2.0
IrisFixed
Field of View (H)101.5°
Field of View (V)55.6°
Field of View (D)111.6°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)
2.863.025.212.6
Illuminator
IR RangeUp to 98ft (29.87 m)
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4MP (2560×1440), Max 20fps; 3MP (2304×1296), Max 30fps; 1080P (1920×1080), Max 30fps; 720P (1280×720), Max 30fps
Sub Stream: D1 (720×576), Max 30fps; 640×360,Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps;
Video Bit Rate128 Kbps~6144 kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video streamDual streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion detection, Tampering alarm, Audio detection, Cross line and Intrusion
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Storage
Edge StorageMicro SD, up to 128GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
Wi-FiN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Power InterfaceØ 5.5mm coaxial power plug

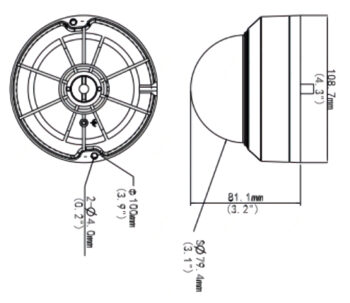

Dimensions (Ø x H)Ø 4.3 inch (10.92 cm) x 3.3 inch (8.38 cm)
Weight0.79lb (358.34 g)
MaterialMetal + Plastic
Working Environment-22 °F (-30 °C) ~ 140 °F (60 °C), Humidity: ≤95% RH (non-condensing)
Storage Environment-22 °F (-30 °C) ~ 140 °F (60 °C), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonN/A
