IPC2124SR-ADF28KMC-DL-H3
Original price was: $449.00.$359.00Current price is: $359.00.Ea.
Call us or log in for better pricing

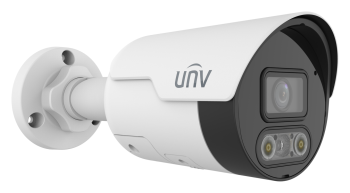

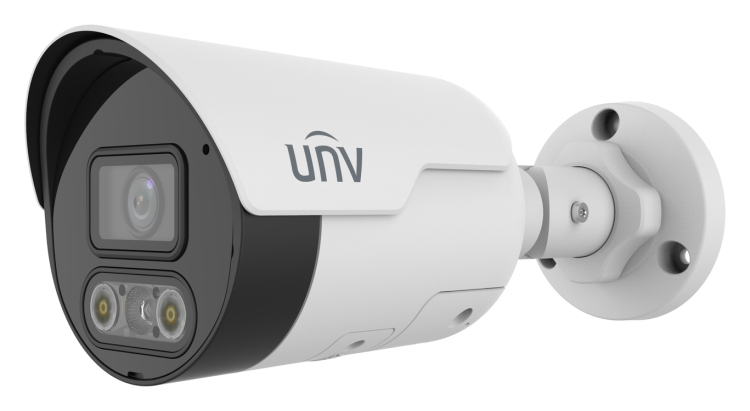

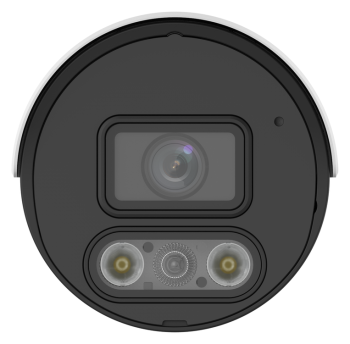

IPC2124SR-ADF28KMC-DL-H3 4MP Bullet Camera
- Uniview 4MP dual-light bullet camera
- 4MP ColorHunter network camera with 2.8 mm lens
- Two-way audio bullet IP camera with microphone and speaker
- IP67 PoE bullet camera for outdoor use
- 30 m infrared and warm light
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Uniview IPC2124SR-ADF28KMC-DL-H3 is both a Uniview 4MP dual-light bullet camera and an outdoor bullet IP camera. Its 1/3-inch CMOS sensor records 2688 × 1520 video at up to 30 frames per second. Its fixed 2.8 mm lens gives a 97-degree view. This two-way audio bullet IP camera uses true 120 dB WDR.
The IPC2124SR-ADF28KMC-DL-H3 is a 4MP ColorHunter network camera that uses infrared and warm light for coverage up to 30 meters. First, infrared can provide discreet night viewing. Then, warm light can support useful color detail when needed. Human-body detection supports cross-line and intrusion alerts.
A built-in microphone and speaker support audio. It is also a two-way audio bullet IP camera. Therefore, users can listen and speak through a compatible video system. Ultra 265, H.265, H.264, and MJPEG formats help control bandwidth and storage use. In addition, dual streams allow separate settings for live viewing and recording.
The IPC2124SR-ADF28KMC-DL-H3 microSD slot supports cards up to 512 GB for local storage. Edge storage can keep video available when a recorder is not close to the camera. Moreover, event recording can reduce unnecessary footage. Meanwhile, ANR and NAS support provide recording choices. ONVIF Profiles S, G, and T help connect the camera with suitable network video systems. Password controls, HTTPS, RTSP authentication, and TLS 1.2 also help protect access.
The IPC2124SR-ADF28KMC-DL-H3 is an IP67 PoE bullet camera. It accepts IEEE 802.3af PoE or 12 VDC power. As a result, installers can choose the best power method for the site. IP67 Ingress Protection helps guard the housing against dust and water. The camera works from -22°F to 140°F. Its compact bullet shape also supports clear aiming during installation. Overall, it suits entrances, parking areas, building edges, and other monitored spaces.
| Camera | ||
| Max Resolution | 4 MP | |
| Sensor | 1/3.0” CMOS | |
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with light | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 to 1/100000 s | |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |
| S/N | > 52 dB | |
| WDR | 120 dB | |
| Lens | ||
| Focal Length | 2.8 mm | |
| Iris | F1.6 | |
| Field of View (H) | 100.5 ° | |
| Field of View (V) | 58.4 ° | |
| Field of View (D) | 123.1 ° | |
| Lens Type | Fixed | |
| Iris Type | Fixed | |
| DORI | ||
| DORI Distance (Lens) | 2.8 mm | |
| DORI Distance (Detect) | 137.8 ft (ca. 42 m) | |
| DORI Distance (Observe) | 68.9 ft (ca. 21 m). | |
| DORI Distance (Recognize) | 33.1 ft (ca. 10 m). | |
| DORI Distance (Identify) | 20.7 ft (ca. 6 m). | |
| Illuminator | ||
| Illumination Distance (IR) | 98.4 ft (ca. 30 m). | |
| Illumination Distance (Warm Light) | 98.4 ft (ca. 30 m) | |
| Wavelength | 850 nm | |
| Light On/Off Control | Auto/Manual | |
| Supplemental Light | Dual light | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Sub Stream Only) | |
| H.264 Code Profile | Baseline profile, main profile, high profile | |
| Frame Rate | Main Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; | |
| Video Bit Rate | 128 Kbps to 6144 Kbps | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| U-code | Support | |
| ROI | Support | |
| Video Stream | Dual streams | |
| Snapshot | Support | |
| Snapshot Resolution | 2560×1440; 2304 × 1296; 1920 × 1080; 1280 × 720; 720 x 576; 640 x 360; 704 x 288; 352 x 288 | |
| Image | ||
| White Balance | Auto, Outdoor, Fine-tune, Sodium lamp, Locked, Auto2, Area white balance | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal, flip vertical, flip horizontal, 180°, 90° clockwise, 90° anti-clockwise | |
| HLC | Support | |
| Dewarping | N/A | |
| BLC | Support | |
| Defog | Digital defog | |
| Events | ||
| Basic Detection | Motion detection, ultra-motion detection (human/ vehicle detection), tampering alarm, Audio detection | |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |
| Audio | ||
| Audio Compression | G.711U, G.711A, AAC-LC | |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz | |
| Storage | ||
| Edge Storage | MicroSD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
| Network | ||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS, SSH | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
| Client | EZStation, APP | |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+. | |
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Serial Port | N/A | |
Additional information
| Weight | 2 lbs |
|---|---|

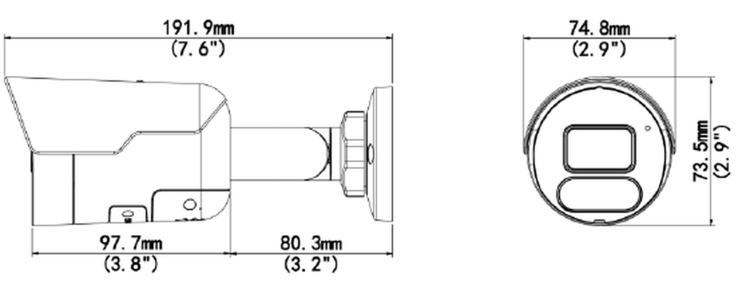

| Dimensions | 9 × 4 × 4 in |
