IPC2124SR-ADF40KMC-DL-H3
Original price was: $449.00.$359.00Current price is: $359.00.
Call us or log in for better pricing

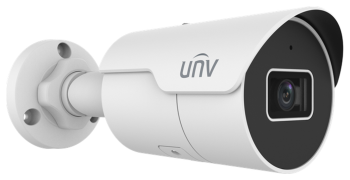

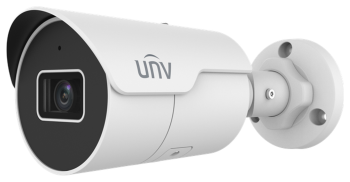

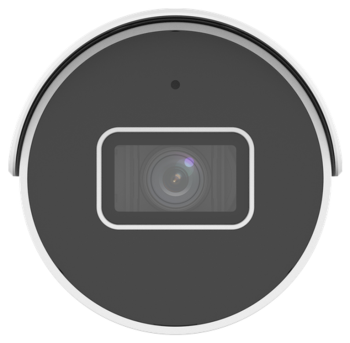

IPC2124SR-ADF40KMC-DL-H3 4MP Bullet Camera
- Uniview 4MP dual-light bullet camera
- 4MP ColorHunter network camera with 4.0 mm lens
- Two-way audio bullet IP camera with microphone and speaker
- IP67 PoE bullet camera for outdoor use
- 30 m infrared and warm light
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Uniview IPC2124SR-ADF40KMC-DL-H3 is a Uniview 4MP bullet camera, 4MP ColorHunter network camera, and IP67 PoE bullet camera. Its 1/3-inch CMOS sensor records 2688 × 1520 video at up to 30 frames per second. Its fixed 4.0 mm lens gives a 79-degree view. This two-way audio bullet IP camera uses true 120 dB WDR.
The IPC2124SR-ADF40KMC-DL-H3 is a 4MP ColorHunter network camera that uses infrared and warm light for coverage up to 30 meters. First, infrared can provide clear night views. Then, warm light can support useful color detail when needed. It can detect people for cross-line and intrusion alerts.
A built-in microphone and speaker support audio. It is also a two-way audio bullet IP camera. Therefore, users can listen and speak through a compatible video system. Ultra 265, H.265, H.264, and MJPEG formats help control bandwidth and storage use. In addition, dual streams allow separate settings for live viewing and recording.
The IPC2124SR-ADF40KMC-DL-H3 microSD slot supports cards up to 512 GB for local storage. Local storage can keep video ready when a recorder is far from the camera. Event recording can reduce extra video. Meanwhile, ANR and NAS support provide recording choices.
ONVIF Profiles S, G, and T help connect the camera with suitable network video systems. Password controls, HTTPS, RTSP authentication, and TLS 1.2 also help protect access.
The IPC2124SR-ADF40KMC-DL-H3 is an IP67 PoE bullet camera. It accepts IEEE 802.3af PoE or 12 VDC power. As a result, installers can choose the best power method for the site.
IP67 Ingress Protection helps guard the housing against dust and water. The camera works from -22°F to 140°F. Its compact bullet shape also supports clear aiming during installation. Its design supports reliable monitoring throughout each day. Overall, it suits entrances, parking areas, building edges, and other monitored spaces.
| Camera | |||
| Max Resolution | 4 MP | ||
| Sensor | 1/3.0” CMOS | ||
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||
| S/N | >52 dB | ||
| WDR | 120 dB | ||
| Lens | |||
| Focal Length | 4.0 mm | ||
| Iris Type | Fixed | ||
| Iris | F1.6 | ||
| Field of View (H) | 79.0° | ||
| Field of View (V) | 42.3° | ||
| Field of View (D) | 85.1° | ||
| DORI | |||
| DORI Distance (Lens) | 4 mm | ||
| DORI Distance (Detect) | 295.3 ft (ca. 90 m). | ||
| DORI Distance (Observe) | 118.1 ft (ca. 36 m). | ||
| DORI Distance (Recognize) | 59.1 ft (ca. 18 m). | ||
| DORI Distance (Identify) | 29.5 ft (ca. 9 m). | ||
| Illuminator | |||
| Supplemental Light | IR | ||
| Illumination Distance (IR) | 164.0 ft (ca. 50 m). | ||
| Wavelength | 850 nm | ||
| IR On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 Code Profile | Baseline profile, main profile, high profile | ||
| Frame Rate | Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; | ||
| Video Bit Rate | 128 Kbps to 6144 Kbps | ||
| U-code | Support | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Support | ||
| Video Stream | Dual streams | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine tune, Sodium Lamp, Locked, Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal, flip vertical, flip horizontal, 180°, 90° clockwise, 90° anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital defog | ||
| Events | |||
| Basic Detection | Cross line (based on human body detection), intrusion (based on human body detection), Motion detection, ultra-motion detection, tampering alarm, audio detection | ||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, User authentication | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | N/A | ||
| Suppression | Support | ||
| Sampling Rate | 8 kHz | ||
| Storage | |||
| Edge Storage | MicroSD, up to 512 GB | ||
| Network Storage | ANR, NAS (NFS) | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||
| Client | UNV-Link, UNV-Link Pro, EZStation | ||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||
| Interface | |||
| Audio I/O | N/A | ||
| Alarm I/O | N/A | ||
| Serial Port | N/A | ||
| Built-in Mic | Support | ||
| Built-in Speaker | N/A | ||
| WIFI | N/A | ||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certification | |||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part 15 B) | ||
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU); | ||
| Protection | IP67 (IEC 60529) | ||
| General | |||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | ||
| Power Consumption | Max. 5.6 W | ||
| Power Interface | Ø5.5 mm coaxial power plug | ||

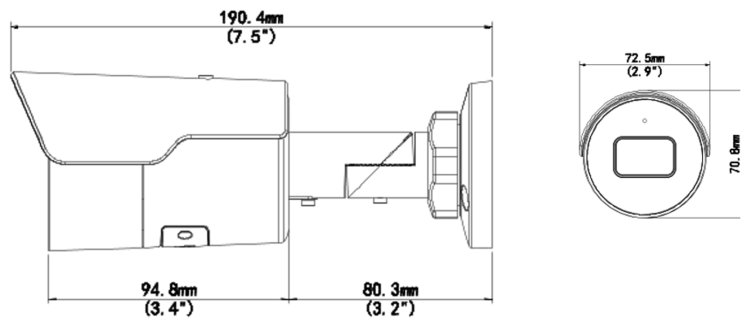

| Dimensions | 190 mm × 73 mm × 71 mm (7.5” × 2.9” × 2.8”) (L × W × H) | ||
| Weight | 0.40 kg (0.88 lb.) | ||
| Material | Graphene + Metal | ||
| Working Environment | -22 ℉ (-30 ℃) to 140 ℉ (60℃), Humidity: ≤ 95% RH (non-condensing) | ||
| Storage Environment | -22 ℉ (-30 ℃) to 140 ℉ (60℃), Humidity: ≤ 95% RH (non-condensing) | ||
| Surge Protection | 4 KV | ||
| Reset Button | Support | ||
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | ||
