NCU-E42S2-AW28

Capture crystal clear images day or night with Eyemax NCU-E42S2-AW28 4MP Turret Network Camera. Advanced AI technology and dual illuminators for enhanced security. Shop features now!

NCU-E42S2-AW28

Original price was: $157.99.Current price is: $98.95.

In stock
0 out of 5

Original price was: $157.99.Current price is: $98.95.

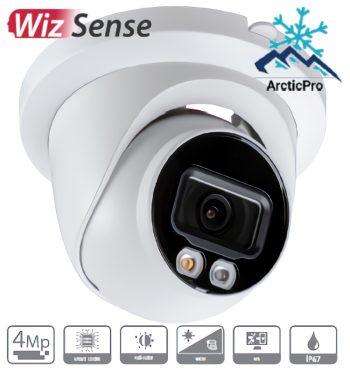

Eyemax NCU-E42S2-AW28 4MP Night Color IR Turret Network IP Camera, 2.8mm Wide Fixed Lens, WizSense2 AI, POE, SD, Audio

  • 4Megapixel, 1/2.9” CMOS image sensor, low illuminance, high image definition
  • Outputs 4Megapixel (2560 × 1440) @ 25/30 fps, Max. supports 4Megapixel (2688 × 1520) @ 20 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm lights, max. illumination distance: 98.43 ft (30 m)
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intrusion, tripwire Intelligent detection
  • Abnormality detection
    • Motion detection
    • video tampering
    • no SD card
    • SD card full
    • SD card error
    • network disconnection
    • IP conflict
    • illegal access
    • voltage detection
  • Supports max. 256 GB Micro SD card
  • 12V DC/PoE power supply IP67 Ingress Protection
Eyemax Logo SKU: NCU-E42S2-AW28 Categories: , Tags: , , , , , , , ,

Description

Introducing the ultimate security solution for day and night monitoring – the Eyemax NCU-E42S2-AW28 4Megapixel Turret Network Camera. This cutting-edge camera boasts a 1/2.9” CMOS image sensor, providing crystal clear and high-definition images even in low light conditions. Low luminance capabilities ensure image quality no matter the time of day.

The camera has a full-color night view feature. This innovative technology allows the camera to switch between infrared and white light modes, depending on the lighting conditions. The infrared mode provides warm light, and motion detection triggers white light. This ensures that even in complete darkness, you can still get a full-color view of your surroundings.

Equipped with WizSense AI SMD Plus, this camera can accurately detect and classify human and vehicle targets in real time. This advanced technology not only reduces false alarms but also allows for more efficient and effective monitoring. The camera can produce clear and detailed images even in difficult lighting situations.

The Eyemax NCU-E42S2-AW28 also features a 2.8 mm fixed lens, providing a wide and panoramic view of your property. With a built-in microphone, you can also capture audio along with the video feed. You can use a 12VDC power supply or PoE to power this camera. Additionally, it is IP67 certified, giving it complete protection against dust and water ingress.

This camera can easily blend in with any environment, so it’s great for both indoor and outdoor use. Eyemax NCU-E42S2-AW28 4Megapixel turret network camera is a reliable and powerful choice for all your surveillance needs. So why wait? Upgrade your security system today with the Eyemax NCU-E42S2-AW28 and experience heightened peace of mind.

Datasheet

Download

Capture crystal clear images day or night with Eyemax NCU-E42S2-AW28 4MP Turret Network Camera. Advanced AI technology and dual illuminators for enhanced security Datasheet.

Installation Manual

Download

Capture crystal clear images day or night with Eyemax NCU-E42S2-AW28 4MP Turret Network Camera. Advanced AI technology and dual illuminators for enhanced security Installation Manual.

Camera
Image Sensor1/2.9”. 4 MP Progressive CMOS scan
Effective Pixels2688(H) x 1520(V)
RAM/ROM128 MB/128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (Black and White, 30 IRE)
0 lux (Illuminator on)
Illuminator TypeTwo (2) White-light LEDs
Illumination Distance98.43 ft (30 m) (IR)
98.43 ft (30 m) (Warm light)
Illuminator ControlAuto, Manual
Illuminator Number1 (IR LED)
1 (Warm light)
S/N RatioGreater than 56 dB
Lens
Lens TypeFixed-local
Mount TypeM12
Focal Length2.8 mm
Maximum ApertureF1.0
Angle of ViewHorizontal: 103°
Vertical: 53°
Diagonal: 122°
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Iris TypeFixed
Focus ControlFixed
Close Focus Distance47.24 inches (1.2 m)
DORI¹
Distance		LensDetect
(8 ppf)		Observe
(19 ppf)		Recognize
(38 ppf)		Identify
(76 ppf)
2.8 mm183.70 ft (55.99 m)73.50 ft (22.4 m)36.70 ft (11.19 m)18.40 ft (5.61 m)
Installation Angle
RangePan: 0˚ to 360˚ Tilt: 0˚ to 780˚
Rotation: 0˚ to 360˚
Video
CompressionSmart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (sub stream only)
Streaming CapabilityThree (3) Streams
Resolution4 MP (2688 × 1520), 3 MP (2304 × 1296), 1080p (1920 × 1080), 1.3 MP (1280 × 960), 720p (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240)
Frame RateMain stream: 2688 × 1520@(1–20 fps)/2560 × 1440@ (1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple
streams, the values will be subjected to the total encoding capacity.
Bit Rate ControlCBR/VBR
Bit RateH.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps
Day/NightColor, Black and White
BLC ModeBLC, HLC, True WDR (120 dB), SSA
White BalanceAuto, Natural, Streetlamp, Outdoor, Manual, Regional Custom
Gain ControlAuto, Manual, Gain Priority, Shutter Priority
Noise Reduction3D DNR
Motion DetectionOff, On (4 Zones, Rectangular)
Region of InterestOff, On (4 Zones)
Advanced FeaturesDefog, Smart Illumination
Flip0°, 90°, 180°, 270°
MirrorOff, On
Privacy MaskingOff, On (4 Areas)
Audio
CompressionPCM, G.711A, G.711Mu, G.726
Network
EthernetRJ-45 (10/100 Base-T)
ProtocolHTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPoE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
InteroperabilityONVIF Profile S, G, T; CGI, Milestone, Genetic, P2P
Auto-RegisterSupport
Streaming MethodUnicast / Multicast
Maximum User Access20 Users (total bandwidth: 64 MB)
Edge StorageNetwork Attached Storage (NAS) FTP, SFTP
Micro SD Slot, maximum 256 GB
Web ViewerIE (Version 8 and higher), Chrome, Firefox
Management SoftwareDSS, DMSS
Mobile Operating SystemIOS, Android
CybersecurityVideo Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
SafetyUL60950-1
CAN/CSA C22.2 No.60950-1-07
EN62368-1
Electromagnetic Compatibility (EMC)CFR 47 FCC Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
Interface
AudioInput: Built-in Microphone
Electrical
Power Supply12 VDC or PoE (IEEE 802.3af, Class 0)
Power Consumption< 8.4 W
Environmental
Operating Conditions-40 °F (-40 °C) to 140 °F (60 °C), less than 95% RH
Storage Conditions-40 °F (-40 °C) to 140 °F (60 °C)
Ingress ProtectionIP67 Ingress Protection
Construction
CasingMetal with Plastic Ring

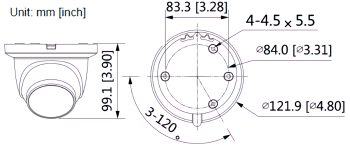

Dimensions (L × W × H)3.90 inches (9.91 centimeters) × Φ 4.80 inch (12.19 cm)
Net Weight1.01 lb (0.46 kg)
Gross Weight1.43 lb (0.65 kg)
Analytics+ Functions²
Perimeter Protection•  Detects human or vehicle violations using the following methods:
Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
•  Monitors a combination of detection methods.
•  Search and retrieve video based on target type.
Smart Motion Detection+²•  Differentiates between and classifies human and vehicle objects.
•  Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
•  Extracts human or vehicle objects from recorded video for quick target search and retrieval.
Recommended Detection DistanceHumanUp to 32.81 ft (10 m)
VehicleUp to 49.21 ft (15 m)
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features•  Tampering with the camera.
•  Error writing to an onboard Micro SD card.
•  Error sending or receiving data over the network.
•  Unauthorized access to the camera.
•  IP Address Conflict
Premium Features
Scene ChangeA person or object moves the camera to change the scene or covers the camera to obscure the scene.
  1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
  2. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to take advantage of SMD alarm filtering and object classification when searching and playing back recorded video.



Additional information

Weight3 lbs
Dimensions6 × 6 × 6 in
