NIR-C5042D-BW
Original price was: $189.95.$148.95Current price is: $148.95.

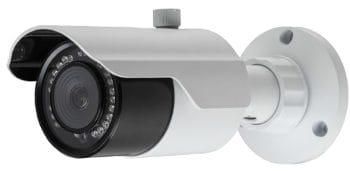

Eyemax NIR-C5042D-BW, the ultimate IP Power IR Bullet camera that combines advanced features and top-notch performance.
- 5MP (2592 × 1944) H.265 full real-time coding
- Max. resolution: 2594 × 1944
- ICR auto-switch, true day/ night
- 20- 30m IR night view distance
- 3D DNR, true WDR, HLC & BLC, ROI coding
- Support local CVBS video output and one-way audio
- Support PoE power supply
- Support smartphones, iPad, remote monitoring
- P2P function optional
- IP66 ingress protection
- Support three streams
- Description
- Product Documents
- Additional information
- Collsam Brands
- SPECIFICATIONS
Description
Introducing the Eyemax NIR-C5042D-BW, the ultimate IP Power IR Bullet camera that combines advanced features and top-notch performance. This camera has a 4MP resolution and H.264/H265 compression, which makes images and videos sharp and clear. Whether it’s for commercial or residential use, the Eyemax NIR-C5042D-BW is the perfect choice for all your security needs.
This camera has a great feature called 4MP resolution. It’s four times better than a regular 1080p camera. This camera can see things clearly because it has a resolution of 2592 pixels by 1520 pixels. You can choose the best image quality for your needs with the camera’s 2K (2560 × 1440) and 3MP resolutions.
The Eyemax NIR-C5042D-BW has H.264/H.265 compression, so your recordings are saved quickly without losing quality. This technology reduces file sizes, so you can store more footage on your hard drive while saving bandwidth. This is especially useful for businesses or homeowners who want to keep an eye on their property for extended periods.
A feature called True WDR helps make pictures look good even in bright light and dark shadows. This ensures that your footage is not overexposed or underexposed, giving you a balanced and clear picture of your surroundings.
It is certified for dust and water resistance, and built to withstand the most challenging weather. This means you can place the camera outdoors without worrying about damage from rain, snow, or dust. You can pick the best one for your surveillance needs with the camera’s M12 and 14 lens mount options.
You can adjust the Eyemax NIR-C5042D-BW to any angle for maximum coverage, thanks to its versatility. This lets you effortlessly monitor every corner of your property, making it ideal for both tiny and large areas.
In conclusion, the Eyemax NIR-C5042D-BW is a powerful and reliable IP Power IR Bullet camera that offers superior surveillance capabilities. This camera is great for anyone who wants to improve their security system. It has 4MP resolution, advanced compression technology, True WDR, and is weatherproof. Experience peace of mind and 24/7 protection with the Eyemax NIR-C5042D-BW.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 16 × 10 × 10 in |
Brand
Eyemax
Professional Video Surveillance Solutions
Eyemax offers surveillance technology designed for homes, businesses, offices, retail locations, schools, warehouses, and other properties. Available equipment supports both network-based and coaxial security installations.HD Coaxial Camera Solutions
HD-over-coax technology provides high-resolution surveillance while allowing compatible existing coaxial cabling to remain in service. This can provide a practical upgrade path for installations that already use traditional CCTV infrastructure.Available camera styles can support indoor and outdoor monitoring requirements, including dome, bullet, turret, and other common surveillance configurations.Network Camera Solutions
Network-based cameras provide flexible deployment options for modern surveillance environments. Depending on the equipment selected, network technology can support high-resolution imaging, remote monitoring, and integration with compatible recording systems.This approach is suitable for new installations as well as projects requiring system expansion and centralized management.NVR Recording Solutions
Network recording equipment provides centralized storage and management for compatible IP surveillance systems. Recorder selection should consider camera count, resolution, storage capacity, network requirements, and desired recording retention.Remote viewing capabilities can also provide authorized users with access to compatible surveillance systems from supported devices.DVR Recording Solutions
Coaxial recording equipment provides reliable video recording for compatible HD analog camera systems. These recorders can support upgrades to existing surveillance installations while preserving compatible cabling and infrastructure.Hybrid configurations may also provide additional flexibility when combining different surveillance technologies.Complete Security System Solutions
A complete surveillance installation can include cameras, recorders, storage, power equipment, cables, mounts, connectors, monitors, and other accessories.Collsam Security offers Eyemax products and supporting security equipment for new surveillance installations, upgrades, expansions, and replacement projects.NDAA
| Camera | |
|---|---|
| Image Sensor | 1 /2.5” CMOS |
| Image Size | 2592 × 1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed iris |
| Min. Illumination | 0.036 lux @F2.0,AGC ON; 0 lux with IR |
| Lens | 3.6 mm @F1.6, horizontal field of view: 79° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | True WDR (120dB) |
| BLC | Yes |
| HLC | Yes |
| Digital NR | 2D / 3D DNR |
| Angle Adjustment | Any angle |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression Standard | Main Profile @Leve4.1 High Tier |
| Resolution | 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240 |
| Main Stream | 60Hz : 5MP (1 ~ 30fps) / 4MP (1~30fps) / 2K(1 ~ 30fps) / 3MP(1 ~ 30fps) / 1080P(1 ~ 60fps) / 720P(1 ~ 30fps) 50Hz : 5MP (1 ~ 25fps) / 4MP (1~25fps) / 2K (1 ~ 25fps) / 3MP (1 ~25fps) / 1080P (1 ~ 50fps) / 720P (1 ~ 25fps) |
| Bit Rate | 128 Kbps ~ 10 Mbps |
| Bit Rate Type | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser |
| Audio Compression | G711A/ U |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Audio | MIC IN × 1 |
| Video Output | CVBS video output (BNC x 1) |
| Functions | |
| Remote Monitoring | IE browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real-time transmission |
| Network Protocol | TCP/ IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion alarm |
| PoE | Yes |
| IR Distance | 66 ft (20.12 m) ~ 100 ft (30.48 m) |
| Ingress Protection | IP66 |
| Others | |
| Power Supply | DC12V /PoE |
| Power Consumption | < 8W |
| Operating Environment | − 20°C ~ 50°C,humidity 95% or less (non-condensing) |
| Dimensions (mm) | ∅ 3.43 inch (8.71 cm) × 8.62 inch (21.89 cm) |
| Weight ( net) | 1.33 lb (603.28 g) |
| Installation | Wall mounting, ceiling mounting |
