QNE-C8013RL
Original price was: $660.00.$565.95Current price is: $565.95.

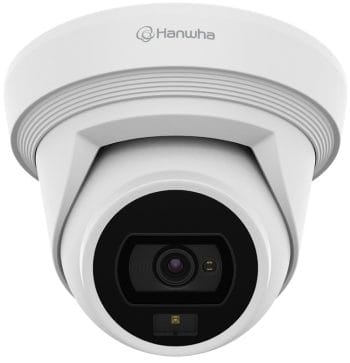

The Hanwha QNE-C8013RL is a 5MP artificial intelligence dual-light Flateye camera.
- Max. 5Megapixel (2592×1944) resolution
- 3.0mm fixed lens
- Color: 0.022Lux (F1.2, 1/30sec) / BW: 0.0022Lux (F1.2, 1/30sec, 30IRE), 0Lux(IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec, WiseStreamⅢ(Based on AI engine), Multiple streaming
- Day and Night, WDR (120dB), WiseNRⅡ (Using AI engine)
- Object Classification, Attributes, and Detection Shot
- Micro SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway view, WiseStreamⅢ(Based on AI engine)
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- LDC, PoE
- IR Viewable length
- White LED : 98.42ft (30 m)
- IR : 98.42 ft (30 m)
SKU: 8801089212177
Categories: 5 Megapixel Network IP Cameras, Network IP Cameras
Tags: 1/2.8" 5Megapixel Progressive Scan CMOS Sensor, 3.0mm Fixed Lens 5Megapixel Resolution, Analytics+, BLC Backlight compensation, H.265+ and Smart H.264+ Dual Codec, IK10 Vandal Resistance, IP66/IP67 Ingress Protection, NDAA Compliant;, ONVIF S/T/G/M, PoE (IEEE 802.3af), WiseNRⅡ (Using AI engine), WiseStreamⅢ(Based on AI engine)- Description
- Attachment
- Additional information
- Reviews (0)
- Specifications
Description
A range of features and capabilities make the Hanwha QNE-C8013RL network outdoor flat-eye camera a highly advanced surveillance tool. With a 5MP resolution and 30 frames per second, this camera offers a crystal-clear, high-definition image quality for superior surveillance. The 3mm fixed focal lens has a wide viewing angle of H: 97° and V.
The Hanwha QNE-C8013RL is compatible with H.265, H264, and MJPEG along with Wisestream III technology. This allows for efficient video compression and management, resulting in reduced bandwidth and storage requirements. The camera also has 120dB WDR to make sure that footage stays clear and visible even in difficult lighting conditions.
Dual Light technology, featuring white LED lights with a range of 98 feet (29.87 meters), enhances visibility on the QNE-C8013RL. This enables the camera to capture clear images even in complete darkness. The IR viewable length of 98ft (29.87 m) makes it ideal for outdoor surveillance applications, providing round-the-clock security.
The camera also offers advanced motion detection based on an AI engine, allowing for greater accuracy and efficiency in detecting potential threats. The AI engine can classify objects as either a person or a vehicle and can differentiate between different types of vehicles such as cars, buses, trucks, motorcycles, and bicycles. This enables the camera to trigger specific alarms and notifications based on the type of object detected.
Additionally, the QNE-C8013RL features Intelligent Video Analytics (IVA) events based on an AI engine. These include Virtual Line Crossing or Direction, Virtual Area Loitering, Intrusion, Enter or Exit, Disappear or Appear, Defocus Detection, and Hallway View. These intelligent features allow for more precise detection and tracking of potential threats, ensuring maximum security for any outdoor setting.
With its IP66/IP67 weatherproof rating, IK10 vandal-proof rating, and PoE (Power over Ethernet) capability, the QNE-C8013RL is a durable and versatile outdoor camera that can withstand harsh weather conditions and potential tampering. It also offers a wide operating temperature range of -40°F ~ +140°F, making it suitable for use in extreme climates.
In conclusion, the QNE-C8013RL network outdoor flat-eye camera is a highly advanced and reliable security solution for any outdoor setting. Its high-resolution imaging, efficient video compression, advanced motion detection, and intelligent analytics make it a top choice for enhanced outdoor surveillance. With its durable design and wide operating capabilities, this camera is a valuable asset for any security system.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 4 × 5 in |
Only logged in customers who have purchased this product may leave a review.
| Video | ||
| Imaging Device | 1/2.8” CMOS | |
| Resolution | 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
| Max. Frame rate. | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps (@5MP Max. 5fps) | |
| Min. Illumination | Color: 0.022Lux (F1.2, 1/30sec) BW: 0.0022Lux (F1.2, 1/30sec, 30IRE), 0Lux(IR LED on) | |
| Lens | ||
| Focal Length (Zoom Ratio) | 3.0mm fixed focal | |
| Max. Aperture Ratio. | F1.2 | |
| Angular Field of View | H: 97° / V: 53° / D: 113° | |
| Min. Object Distance. | 2.0m(6.56ft) | |
| Focus Control | Fixed | |
| Lens Type | Fixed IRIS | |
| Mount Type | M12 | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) | |
| Motion Detection | 8ea, 8point Polygonal zones | |
| Privacy Masking | 32ea, 4point quadrangle zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Analytics | Classified object type: Person/Vehicle (Type:car/bus/truck/motorcycle/bicycle) Attributes: Person, Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support Detection Shot Analytics events based on AI engine – Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events – Defocus detection, Tampering, Virtual area (Appear/Disappear) * Some video analytics only works with people and vehicle detection | |
| Business Intelligence | Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events | When alarm trigger occurred – File upload (image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Light alarm | |
| Light Type | Dual light (White warm light, IR) | |
| IR Viewable Length | White LED : 98.42 ft (30 m) IR : 98.42ft (30 m) | |
| IR Wavelength | long-life 850 nm IR LED | |
| Network | ||
| Ethernet | RJ-45 (10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR | |
| Streaming | Unicast (20 users) / Multicast Multiple streaming (Up to 5 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF Profile S/G/T/M Sunapi (HTTP API) | |
| Security | ||
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption | |
| User authentication | Digest Authentication, Prevent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS (Web socket secure) | |
| Access Control | Access control based on IP address | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log management | |
| Device ID | Device Certificate (Hanwha Private Root CA) | |
| Secure Storage | SD card partition encrypt | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Memory | 2GB RAM, 1GB Flash | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air sheet | |
| Storage Temperature / Humidity | -58 °F (-50 °C)~ 140 °F (60 °C)) / 0~95% RH | |
| Certification | IP66/IP67, IK10 | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE: Max 10.0W, typical 4.5W | |
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |

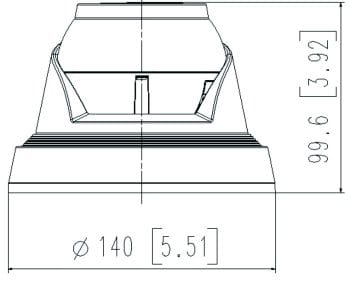

| Product Dimensions / Weight | ø 5.51 inch (14 cm) x 3.92 inch (9.96 cm), 1.74 lb (789.25 g) | |
| Compatible Conduit hole / Gang box | Conduit hole : None Gang box : Single, Double, 4″ Octagon | |
| Hanging Mount (Dome) | SBP-140HMW | |
| Back box | SBV-140BW | |
| Ceiling Mount (Assy) | SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS | |
| Wall Mount | SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2 | |
| Pole Mount | SBD-140PMW, SBP-300PMW2, SBD-140PMB | |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 | |
| Corner Mount | SBP-300KMW1, SBD-140KMB | |
| Tilt Mount | SBV-140TMW | |
| Cabinet | SBP-300NBW | |
| Certifications and Standards | ||
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 | |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | 150.49ft (45.87 m) | |
| Observe (63PPM/ 19PPF) | 60.19ft (18.35 m) | |
| Recognize (125PPM/ 38PPF) | 30.09ft (9.17 m) | |
| Identify (250PPM/ 76PPF) | 15.05ft (4.59 m) | |
