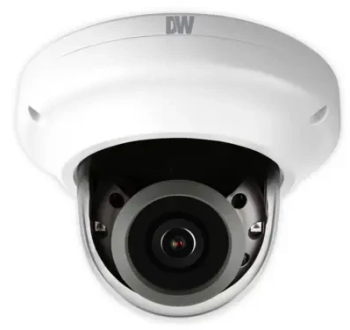

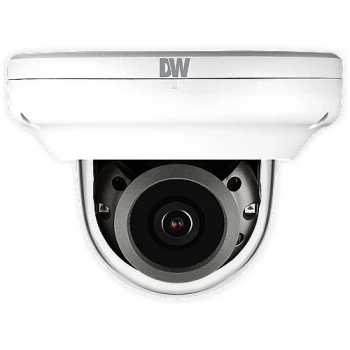

Digital Watchdog DWC-MPVC8Wi28TW 4K IVA+ Dome Camera
- 4K video at up to 30 fps
- Fixed 2.8 mm lens with 100 ft Smart IR
- IVA+ analytics with DW Spectrum integration
- IP67, IK10, PoE, audio and alarm I/O
- Discontinued reference model
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
DW Spectrum IPVMS compatibility supports the DWC-MPVC8Wi28TW 4K IVA+ dome camera, a discontinued Digital Watchdog 8MP vandal dome camera. This 8MP 4K dome IP camera provides video. Its 1/2.8-inch CMOS sensor delivers 3840 × 2160 resolution. a 2.8 mm F2.0 lens provides a 105.5-degree horizontal field of view.
Star-Light Plus supports color imaging in darkness, while Smart IR reaches 100 feet for video. Additionally, 120 dB wide dynamic range balances bright and shadowed areas. The camera supports H.265, H.264, and MJPEG compression with streams for storage management.
This Digital Watchdog dome camera provides IVA+ video analytics that classify people, vehicles, and objects. For example, useful rules can reduce alerts and work with DW Spectrum IPVMS. IVA+ video analytics includes motion detection, privacy zones, automatic gain control, backlight compensation, two-way audio, one alarm input, and one relay output.
A microSD, SDHC, or SDXC card slot supports recording when installed. network connectivity includes Gigabit Ethernet, PoE Class 3, and ONVIF Profile S support. The camera can operate from 12 VDC power; however, an adapter is not included.

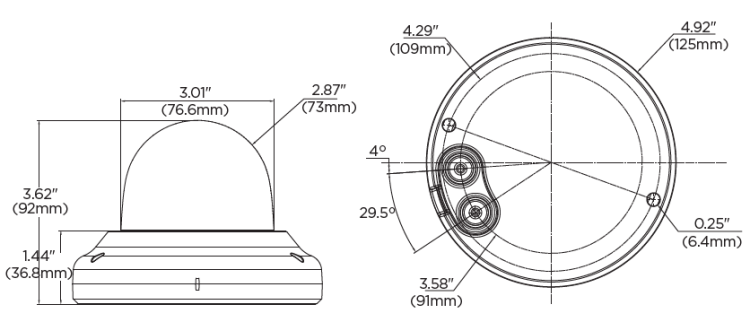

The 8MP 4K dome IP camera is a Digital Watchdog 8MP vandal dome camera with an aluminum housing and IP67 weather protection and an IK10 impact rating. In addition, CleanView hydrophobic coating helps repel water, dust, and grease from the dome. The DWC-MPVC8Wi28TW measures 4.92 inches (125 mm) across and 3.62 inches (92 mm) high, and it weighs 1.14 lb (0.51 kg).
Digital Watchdog lists the DWC-MPVC8Wi28TW 4K IVA+ dome camera as discontinued. Therefore, Collsam retains this page for identification, compatibility research, and access to information. Finally, review the Specification and Product Documents tabs and DW Spectrum IPVMS compatibility before planning service for an installation.
| Image | |
|---|---|
| Active Pixels | 3840 (H) x 2160 (V) |
| Image sensor | 4K 1/2.8″ CMOS sensor |
| Maximum resolution | 4K |
| Minimum Scene Illumination in color | 0.0 lux (B/W) 0.18 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 3952 (H) x 2320 (V) |
| Lens | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 105.5° |
| Illumination Distance | 100′ range Smart IR™ |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 56.3° |
| I/O | |
| Audio compression | G.711 |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. 1 input 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules. NOTE: object removed, tailgating, direction, stopped, appear, disappear, object left, and logical rules are available via IVA+ plugin update. For existing cameras, contact your DW sales representative for a complimentary update. |
| Operational | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation FTP server SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker Auto Manual Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x10 x2 x3 x5 x6 x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 1000Base-T (1Gbps) |
| Network resolution | H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800×600, VGA, 768×432, D1, CIF |
| Network Web Viewer | Google Chrome® browser Linux® OS Mac® OS Microsoft Edge® browser Mozilla Firefox® browser Safari® browser Windows OS |
| Protocol | DDNS DHCP DNS FTP HTTP HTTPs ICMP NTP RTP (UDP/TCP) RTSP SMTP SNMPv1/v2/v3 (MIB-2) SSL TCP/IP UDP Zeroconf (AutoIP) |
| Security | 802.1x Digest authentication (ID/PW) HTTPS (TLS) IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | DW Spectrum® ExacqVision Technologies Genetec Inc. Milestone Systems |
| Environmental | |
| Camera Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Camera Startup Temperature | -4°F (-20°C) to 122°F (50°C) |
| Compliance |    |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | Ø4.92 inches (125 mm) × 3.62 inches (92 mm) |
| Camera Weight | 1.14 lb (0.51 kg) |
| Housing | Vandal Dome |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: 10W, 833mA Po:E 13W |
| Power Requirements | Adapter not included PoE |
| General | |
| Warranty | 5 Year Warranty |
