NVR301-08X-P8
Original price was: $509.00.$249.95Current price is: $249.95.
Uniview NVR301-08X-P8 8 Channel PoE NVR, NDAA Compliant, 4K Ultra HD with 1 SATA HDD Bay
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD up to 6 TB
- Support cloud upgrade
- NDAA Complaint
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Uniview NVR301-08X-P8 is a powerful, professional-grade 8-channel Network Video Recorder. It is built to deliver reliable, high-definition surveillance for homes, businesses, and larger security installations. Designed for IP camera systems, it combines robust performance with easy setup. Moreover, this makes it an ideal choice for users who want advanced recording capabilities without unnecessary complexity.
One of its standout features is the integrated 8-port PoE switch. This allows compatible cameras to connect directly to the recorder for simple plug-and-play installation. With 8 independent 100 Mbps PoE ports that comply with IEEE 802.3at/af standards and a total power budget of up to 108W, the NVR301-08X-P8 helps streamline deployment. It also reduces the need for separate power sources and extra cabling.
This NVR supports 8-channel IP video input with up to 64 Mbps incoming and outgoing bandwidth. Additionally, it can record video at resolutions up to 8MP, including crisp 4K at 3840 × 2160. It also supports Ultra 265, H.265, and H.264 compression.
This helps optimize storage efficiency and network performance while preserving excellent image quality. Whether you are monitoring entrances, parking areas, warehouses, or office spaces, this recorder is designed to capture clear, detailed footage.
For storage flexibility, the unit includes 1 SATA interface supporting a single internal hard drive up to 10 TB. Thus, it is suitable for everything from entry-level systems to more demanding recording environments. It is often available as a no-HDD base model or bundled with different drive capacities. This allows you to choose the setup that best fits your recording retention needs.
The Uniview NVR301-08X-P8 also offers flexible display and integration options, including simultaneous 1-channel HDMI output up to 4K resolution and 1-channel VGA output. As an ONVIF-compliant recorder supporting Profiles S, G, and T, it works with a wide range of third-party IP cameras. This gives users greater freedom when expanding or upgrading their surveillance system.
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |

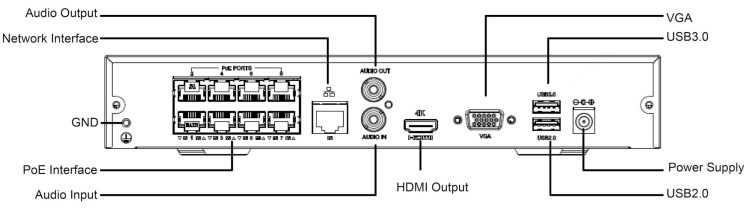

| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| PoE | |
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 52V DC Power Consumption: ≤8 W (without HDD) |
| Working Environment | 14°F (-10°C )~ 131°F (55°C), Humidity ≤ 90% RH (non-condensing) |

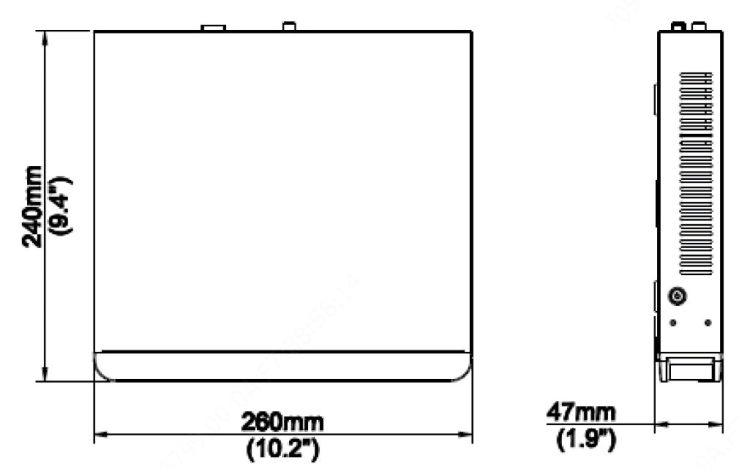

| Dimensions (W×D×H) | 10.2 inches (0.26 m) × 9.4 inches (0.24 m) × 1.9 inches (4.83 cm) |
| Weight (without HDD) | 2.20 lb (1 kg) |
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 19 × 13 × 5 in |
Brand
Uniview
Uniview Professional Video Surveillance
Uniview develops professional video-surveillance products for homes, stores, offices, warehouses, schools, industrial facilities, and enterprise environments. The product range supports new installations, system expansions, and replacement projects.Network and Analog Security Cameras
Available camera styles include:- Bullet cameras
- Turret cameras
- Dome cameras
- PTZ cameras
- Panoramic and multi-sensor cameras
- Thermal cameras
- Wireless cameras
- Analog HD cameras
- Full-color and low-light cameras
- Active-deterrence cameras
Network and Digital Video Recorders
Uniview recorders are available for small, medium, and large surveillance installations. Product options include network video recorders for IP cameras and hybrid digital video recorders for compatible analog and network cameras.Recorder selection should consider:- Required camera channels
- Camera resolution
- Incoming bandwidth
- Hard-drive capacity
- Recording schedule
- Required retention time
- PoE port requirements
- Display outputs
- Remote-access requirements
- Supported analytics
Video Storage and Transmission
Compatible system components may include surveillance storage, disk enclosures, network switches, cables, wireless transmission equipment, and other networking products. Always verify the maximum storage capacity and compatible hard-drive models supported by the recorder.Mounts and Installation Accessories
Uniview installation accessories include junction boxes, wall mounts, pole mounts, corner mounts, pendant mounts, extension pipes, weather-resistant cable seals, and recorder accessories. Select accessories according to the exact camera or recorder model.System Compatibility
Confirm camera, recorder, firmware, storage, mounting, power, and network compatibility before installation. Features and specifications vary between product series and models.Uniview security cameras, recorders, storage products, and installation accessories are available at Collsam Security.Only logged in customers who have purchased this product may leave a review.
