Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.
Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.

NVR301-08X

Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, plug-and-play setup, and efficient storage for pro surveillance.

NVR301-08X

Original price was: $309.00.Current price is: $149.95.

In stock
0 out of 5
( There are no reviews yet. )

Original price was: $309.00.Current price is: $149.95.

Uniview NVR301-08X 8 Channel NVR, IP Network Video Recorder, NDAA Compliant

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 6 TB
  • Support cloud upgrade
NDAA-compliant security products at Collsam SecurityUniview security cameras and NVR systems are available at Collsam Security
SKU: NVR301-08X Categories: , Tags: , , , , ,

Description

The Uniview NVR301-08X is a professional-grade 8-channel Ultra 4K HD Network Video Recorder built for reliable IP surveillance in small to mid-sized environments. It is part of Uniview’s Easy series. Additionally, it delivers a streamlined plug-and-play setup that makes installation and system management simple. However, it still offers the performance needed for demanding security applications.

Designed to support Ultra 265, H.265, and H.264 compression formats, this NVR helps optimize video storage and network efficiency without sacrificing image quality. Its proprietary Ultra 265 technology combines U-Code with H.265 to reduce both storage requirements and bandwidth usage by up to 75%. This makes it an excellent choice for users looking to maximize recording time and minimize infrastructure costs.

With support for recording up to 4K (8MP) resolution, the NVR301-08X ensures sharp, detailed footage for clearer identification and monitoring. The unit also offers strong local decoding capability. Specifically, it can handle two channels at 4K@30fps or up to eight channels at 1080p@30fps. Therefore, it enables smooth live viewing and playback across multiple cameras.

For storage, the recorder includes 1 SATA interface and supports a single hard drive. Capacity options are up to 6 TB or 10 TB depending on the specific sub-model firmware. This flexibility allows users to tailor storage to their recording needs. This applies whether for continuous surveillance or extended archive retention.

The NVR301-08X is equipped with 80 Mbps incoming bandwidth and 64 Mbps outgoing bandwidth. This ensures stable multi-channel monitoring and responsive video transmission. It also complies with ONVIF profiles S, G, and T. As a result, it is compatible with a wide range of third-party IP cameras for easier system expansion and integration.

To support versatile installation and viewing options, the recorder provides simultaneous video output through 1-channel HDMI with up to 4K resolution and 1-channel VGA. Please note that this model does not include built-in PoE ports. Therefore, external PoE switches or injectors will be required for connecting IP cameras. Overall, the Uniview NVR301-08X is a capable, efficient, and flexible NVR solution for modern surveillance networks.

Datasheet

Download

Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, HDMI/VGA output, and efficient plug-and-play setup. Datasheet!

Quick Start Guide

Download

Uniview NVR301-08X 8-channel 4K NVR with Ultra265, ONVIF support, HDMI/VGA output, and efficient plug-and-play setup. Quick Start Guide!

Video/Audio Input
IP Video Input8-channel
Two-way Audio Input1-channel, RCA
Network
Incoming Bandwidth64Mbps
Outgoing Bandwidth64Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback8-channel
Corridor Mode Screen3/4/5/7/9
Decoding
Decoding formatUltra 265/H.265/H.264
Liveview/Playback4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30
Hard Disk
SATA1 SATA interface
Capacityup to 6TB for each disk

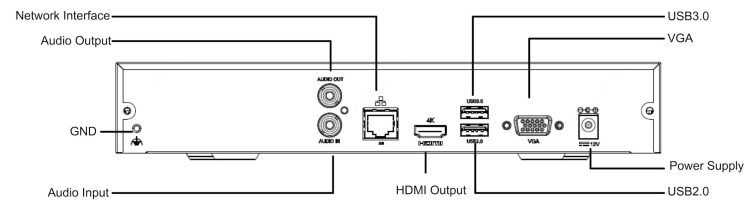

External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel: 1 x USB2.0,1 x USB3.0
General
Power Supply12V DC
Power Consumption: ≤8 W (without HDD)
Working Environment14°F (-10°C) ~ +131°F (55°C), Humidity ≤ 90% RH (non-condensing)

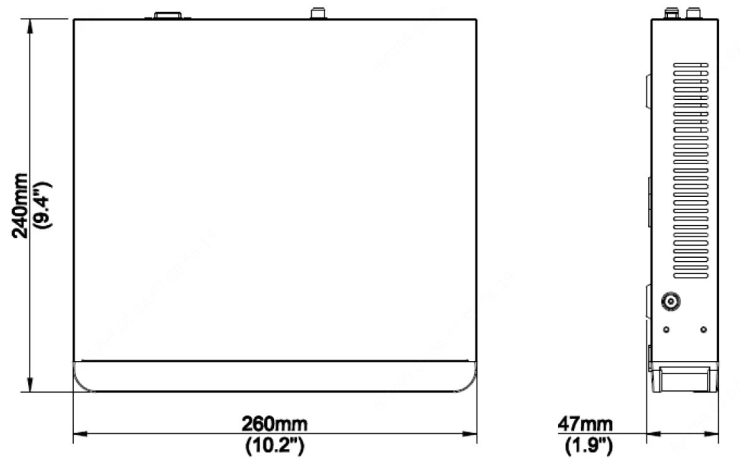

Dimensions (W×D×H)10.2 inches (25.91 cm) × 9.4 inches (23.88 cm) × 1.9 inches (4.83 cm)
Weight (without HDD)2.87 lb (1.3 kg)

Additional information

Weight4 lbs
Dimensions19 × 13 × 5 in

Brand

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.
NDAA-compliant security products at Collsam Security
NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Uniview

Uniview security cameras include IP surveillance cameras for homes, businesses, and large video security projects. Available styles include bullet, turret, dome, panoramic, and PTZ models. These cameras support indoor, outdoor, and low-light monitoring. Uniview NVR systems serve as video surveillance recorders for compatible network cameras. Selected hybrid DVR models also support several analog video formats. Installers can pair Uniview security cameras with recorders, storage drives, PoE switches, mounting brackets, and junction boxes. IP surveillance cameras may include infrared light, full-color night viewing, wide dynamic range, audio, and remote access. Some models can also identify people or vehicles. Uniview NVR systems come in several channel counts and storage sizes. Choose video surveillance recorders based on camera support, resolution, bandwidth, recording schedules, and storage needs. Product features vary by model. Confirm system support before buying.
Uniview security cameras and NVR systems are available at Collsam Security

Uniview Professional Video Surveillance

Uniview develops professional video-surveillance products for homes, stores, offices, warehouses, schools, industrial facilities, and enterprise environments. The product range supports new installations, system expansions, and replacement projects.

Network and Analog Security Cameras

Available camera styles include:
  • Bullet cameras
  • Turret cameras
  • Dome cameras
  • PTZ cameras
  • Panoramic and multi-sensor cameras
  • Thermal cameras
  • Wireless cameras
  • Analog HD cameras
  • Full-color and low-light cameras
  • Active-deterrence cameras
Camera features vary by model. Options may include infrared illumination, full-color night imaging, wide dynamic range, motorized lenses, audio, smart motion detection, human and vehicle classification, weather-resistant housings, and Power over Ethernet.

Network and Digital Video Recorders

Uniview recorders are available for small, medium, and large surveillance installations. Product options include network video recorders for IP cameras and hybrid digital video recorders for compatible analog and network cameras.Recorder selection should consider:
  • Required camera channels
  • Camera resolution
  • Incoming bandwidth
  • Hard-drive capacity
  • Recording schedule
  • Required retention time
  • PoE port requirements
  • Display outputs
  • Remote-access requirements
  • Supported analytics

Video Storage and Transmission

Compatible system components may include surveillance storage, disk enclosures, network switches, cables, wireless transmission equipment, and other networking products. Always verify the maximum storage capacity and compatible hard-drive models supported by the recorder.

Mounts and Installation Accessories

Uniview installation accessories include junction boxes, wall mounts, pole mounts, corner mounts, pendant mounts, extension pipes, weather-resistant cable seals, and recorder accessories. Select accessories according to the exact camera or recorder model.

System Compatibility

Confirm camera, recorder, firmware, storage, mounting, power, and network compatibility before installation. Features and specifications vary between product series and models.Uniview security cameras, recorders, storage products, and installation accessories are available at Collsam Security.
