Name: IPC815SB-ADF14K-I0
SKU: IPC815SB-ADF14K-I0
Availability: InStock

-64%

Experience complete 360-degree situational awareness with the Uniview IPC815SB-ADF14K-I0. This 5MP fisheye camera captures high-quality footage and features advanced technology for enhanced audio detection and night vision. With weatherproof and vandal-resistant design, it's perfect for commercial and government use. Shop now!

IPC815SB-ADF14K-I0

0 out of 5

( There are no reviews yet. )

Original price was: $808.95.Current price is: $292.95.

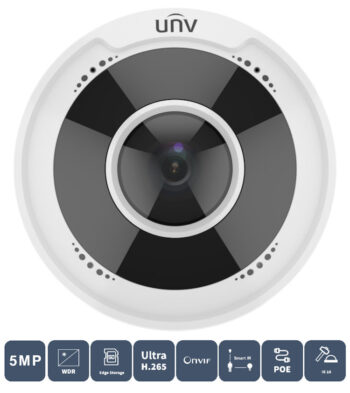

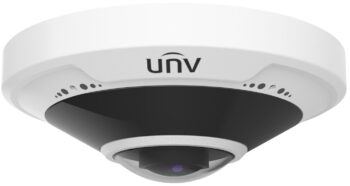

Uniview IPC815SB-ADF14K-I0 5MP Outdoor Network Fisheye Dome Camera with Night Vision

High-quality image with 5MP, 1/2.8” CMOS sensor
5MP (2592×1944):@ 30/25fps;
Ultra 265, H.265, H.264, MJPEG
120dB true WDR technology enables clear images in a strong light scene
Built-in 2 mics, supports the detection of sounds over longer distances
Alarm:1 in/1 out, Audio: 1 in/1 out
Smart IR, up to 10 m (32.81 ft) IR distance
Supports 256 G Micro SD card
IK10 vandal resistant
IP66 protection
Support PoE power supply

SKU: IPC815SB-ADF14K-I0 UPC: 848076031715 Categories: Network IP Cameras, PTZ Network IP Cameras Tags: BLC Backlight compensation, Built-In Microphone and Speaker, Fisheye IP Camera, HLC Highlight compensation, IK10 Vandal Resistance, IP66 Ingress Protection, NDAA Compliant;, ONVIF (Profile S Profile G Profile T), PoE (IEEE802.3 AF), Ultra 265 H.265 H.264 MJPEG

Description

Uniview IPC815SB-ADF14K-I0! This professional-grade 5MP Fixed IR Fisheye Network Camera is designed to provide complete 360-degree situational awareness. As a result, it is the perfect choice for wide-area coverage with just a single camera. With its impressive features and capabilities, this camera sets the bar high for advanced surveillance technology.

Experience unparalleled clarity with the IPC815SB-ADF14K-I0, thanks to its 5 Megapixel (2592 × 1944) resolution. This delivers crystal clear footage at up to 30 frames per second.

The ultra-wide 1.4 mm fixed focal lens offers a full 360° panoramic field of view, eliminating any blind spots and providing comprehensive coverage.

Whether you need to monitor a large office space or warehouse, this camera has got you covered.

Worried about low light conditions? The Uniview IPC815SB-ADF14K-I0 comes equipped with Smart IR technology, providing a night vision range of up to 33 feet (10.06 m). This ensures that your surveillance never stops, even in the darkest of environments.

But that’s not all. This camera also features dual built-in microphones for advanced audio detection over long distances and two-way talk functionality. Now you can not only see but also hear and communicate with anyone within the camera’s range.

Dealing with high-contrast lighting environments? Not a problem for the IPC815SB-ADF14K-I0! With its 120dB True WDR (Wide Dynamic Range), this camera can handle extreme lighting conditions. This allows you to capture clear and detailed footage in any situation. Say goodbye to overexposed or underexposed areas in your footage and hello to balanced and realistic visuals.

In terms of durability, the Uniview IPC815SB-ADF14K-I0 is second to none. Its metal and plastic housing boasts IP66 weatherproof and IK10 vandal-resistant ratings. This ensures that it can withstand harsh weather conditions and any physical attacks. Therefore, it is suitable for both outdoor and indoor use.

Datasheet

Download

Experience complete 360-degree situational awareness with the Uniview IPC815SB-ADF14K-I0. This 5MP fisheye camera captures high-quality footage and features advanced technology for enhanced audio detection and night vision. With weatherproof and vandal-resistant design, it's perfect for commercial and government use. Datasheet.

Camera
Image sensor	1/2.8”, progressive scan, 5.0 megapixel, CMOS
Minimum Illumination	Color: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter for day & night function
Shutter	Auto/Manual, shutter time: 1~1/100000 s
WDR	120dB
S/N	>55dB
Lens
Lens type	1.4mm@F2.0
Angle of View	360°
DORI
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	1.4mm	103.35 ft (31.5 m)	41.34 ft (12.6 m)	20.67 ft (6.3 m)	10.50 ft (3.2 m)
Illuminator
IR Range	UP to 10m (33ft)
wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 5MP (2592×1944): Max.30fps; Sub Stream: 1080P (1920×1080): Max.30 fps; 720P (1280×720), Max 30fps; Third Stream: D1 (720×576), Max 30fps; 640×360,Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30 fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
ROI	Up to 8 areas
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting	Image rotation, brightness, saturation, contrast, sharpness, and gain are adjustable by web browser
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/ Flip Horizontal/180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital Defog
Audio
Audio Compression	G.711
Audio Bitrate	64 Kbps
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Live View Display
Mount Type	Support table, wall, and ceiling
Decoding Mode	Support software decoding
Display Mode	11 display modes in total Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, panoramic, panoramic Panoramic+ 3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Interface
Audio I/O	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1-Jan
RS485	N/A
Built-in Mic	Supported 2
Built-in Speaker	N/A
WIFI	N/A
Network	1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
Video Output	N/A
Certifications
EMC	FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
Safety	IEC 62368-1 EN 62368-1 UL 62368-1
Environment	CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power	DC12V±25%,PoE (IEEE 802.3af)
	Power consumption: Max. 8.5W
Power Interface	Ø 5.5mm coaxial power plug

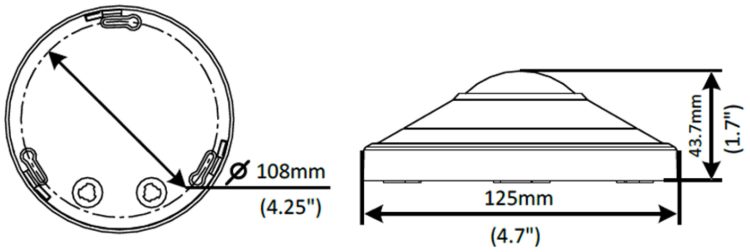

Dimensions (Φ × H)	Φ4.9 inches (22.86 cm) × 1.7 inches (4.32 cm)
Weight	0.79lb
Material	Metal + Plastic
Working Environment	-22°F (-30°C )~ 140°F (60°C), Humidity: ≤95% RH (non-condensing)
Storage Environment	-22°F (-30°C )~ 140°F9 (60°C), Humidity: ≤95% RH (non-condensing)
surge protection	4KV
Reset Button	Supported
Protection	Ingression protection: IP66 Vandal resistant: IK10
