NPT-R52D-YLW04

0 out of 5

( There are no reviews yet. )

Original price was: $433.99.Current price is: $266.95.

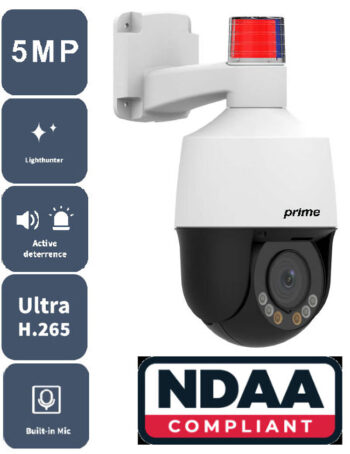

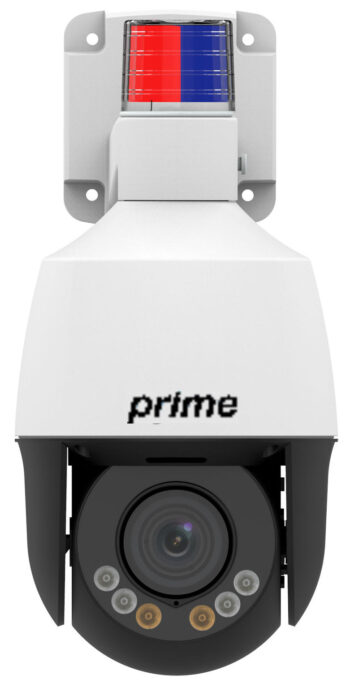

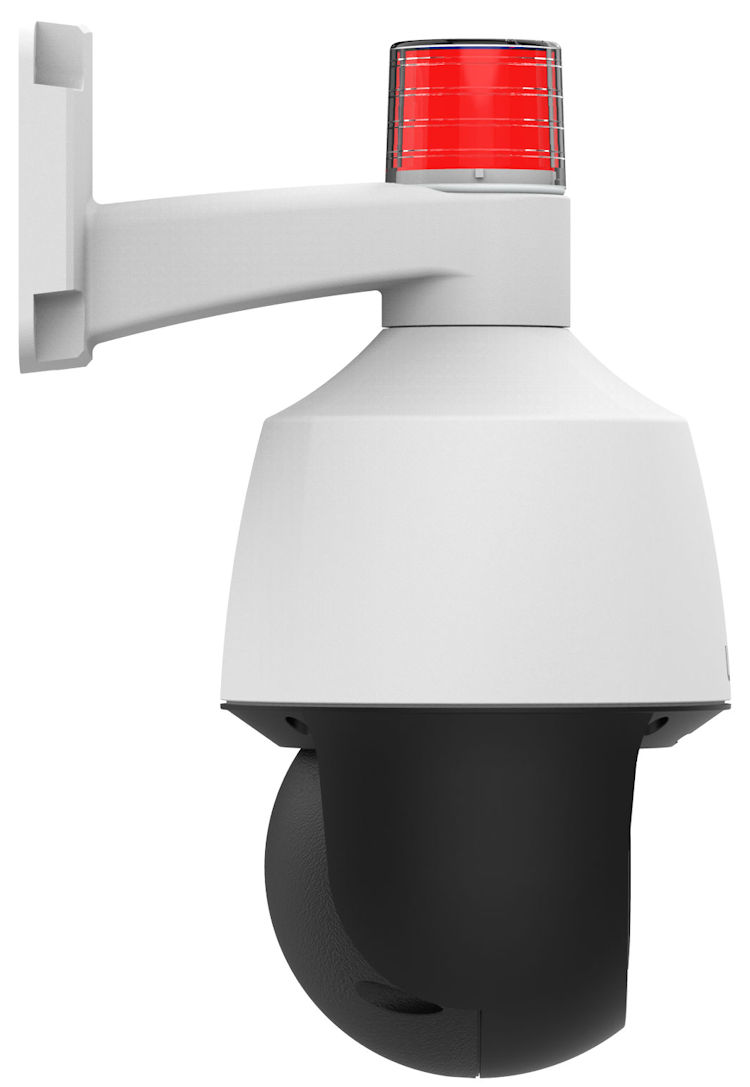

Eyemax NPT-R52D-YLW04 5MP Light, Sound, and Alarm; PTZ Camera 2.8 mm-12 mm, Two-Way Audio, Starlight, Auto Tracking

High-quality image with 5MP, 1/2.7” CMOS sensor
Ultra 265, H.265, H.264, MJPEG
LightHunter technology ensures ultra-high image quality in low illumination environments.
Up to 120 dB Optical WDR (Wide Dynamic Range)
Built-in Mic & Speaker
Smart IR, up to 50 m (164.04 ft) IR distance and 10 m (32.81 ft) warm light distance
Micro SD, up to 256 GB
IP66 protection
DC12V or PoE (IEEE 802.3af) power supply

SKU: NPT-R52D-YLW04 Categories: Network IP Cameras, PTZ Network IP Cameras Tags: 1/2.7" 5MP progressive scan CMOS sensors, 2.8 ~ 12 mm Motorized 5 Megapixel Lens, 2D / 3D DNR ( Digital Noise Reduction), Auto Tracking Function, AWB (Auto White Balance), Built-In Microphone and Speaker, Digital Defog, ICR True Day and Night Auto Switch, Intrusion Detection, IP66 Ingress Protection, LightHunter Technology, Mini PTZ Network IP, ONVIF (Profile S Profile G Profile T), PoE (IEEE 802.3af), Smart Intrusion Prevention SIP, Two-Way Audio, Ultra 265 H.265 H.264 MJPEG

Description

The Eyemax NPT-R52D-YLW04 is a top-of-the-line IP PTZ camera. It offers advanced surveillance features for optimal security.

This 5-megapixel camera boasts a high-definition resolution of 2880 × 1620 at 30 frames per second. This ensures crystal-clear footage that captures every detail.

The camera’s 2.8–12 mm auto-focus motorized zoom lens also contributes to its exceptional image quality. In addition, it provides a 4x optical zoom that allows for close-up views without sacrificing clarity.

One of the standout features of the Eyemax NPT-R52D-YLW04 is its active deterrence capabilities. These include a built-in sound alarm. This feature adds an extra layer of protection to your property by alerting potential intruders or trespassers of their presence. The sound alarm can be triggered manually or set to activate automatically when motion is detected. As a result, it serves as a powerful deterrent against criminal activity.

In addition to its active deterrence features, the Eyemax NPT-R52D-YLW04 also boasts an auto-tracking function. This allows the camera to automatically follow moving objects. It ensures that they remain in the frame at all times. This is especially useful in large areas or outdoor spaces where objects may be constantly moving. It eliminates the need for manual panning and tilting.

The camera’s 1/2.7” CMOS sensor is another notable component that contributes to its high-quality performance. This sensor allows for impressive low-light sensitivity, with a minimum illumination of 0.002 lux (F1.2) without IR. It also features a 120 dB true WDR (wide dynamic range). This helps to balance out contrast in high-contrast lighting situations. Therefore, this results in clear and detailed images, even in challenging lighting conditions.

The Eyemax NPT-R52D-YLW04 is not only technologically advanced but also designed with durability in mind. Its IP66 weatherproof rating makes it suitable for both indoor and outdoor use.

This ensures that it can withstand harsh weather conditions without compromising its performance. With its combination of high-definition resolution, advanced features, and rugged design, the Eyemax NPT-R52D-YLW04 is a top choice.

It is ideal for those looking for a reliable and effective IP PTZ camera for their surveillance needs.

Datasheet

Download

Upgrade your surveillance game with Eyemax NPT-R52D-YLW04, a 5MP IP PTZ camera with active deterrence features and 4x optical zoom. Get clear images even in low-light and high-contrast settings. Trust in its auto-tracking and sound alarm for enhanced security. Datasheet

Quick Start Guide

Download

Camera
Sensor	1/2.7” progressive scan, 5.0 megapixel CMOS
Min. Illumination	Color: 0.003 lux (F1.6, AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
WDR	120dB
S/N	>52dB
Lens
Lens type	2.8~12 mm, AF automatic focusing and motorized zoom lens
Digital Zoom	4
Optical Zoom	4
Iris	Fixed; F1.6
Angle of View (H)	104.1° ~ 30.6°
Angle of View (V)	54.9° ~ 17.4°
Angle of View (O)	108.3° ~ 34.4°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.8 mm	206.7 ft (63 m)	82.7 ft (25.21 m)	41.3 ft (12.59 m)	20.7 ft (6.31 m)
	12 mm	885.8 ft (0.27 km)	354.3 ft (0.11 km)	177.2 ft (54.01 m)	88.6 ft (27.01 m)
Illuminator
IR Range	Up to 164 ft.
Warm Light Range	Up to 33 ft.
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 5MP (2880×1620), Max 30fps; 4MP (2560×1440), Max 25fps; 3MP (2304×1296), Max 25fps; 3MP (2304×1296), Max 25fps; 2MP (1920×1080), Max 30fps; Sub Stream: 720P (1280×720), Max 30fps; D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps; Third Stream: D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90° Clockwise 90° Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion detection, audio detection, Tampering Alarm
Auto Tracking	Support
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZLive EZView
Web Browser	Plug-in required for live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range	0° ~ 345°
Pan Speed	0.1°/s ~ 50°/s
	Preset speed: 50°/s
Tilt Range	—10° ~ 110°
Tilt Speed	0.1°/s ~ 40°/s
	Preset speed: 40°/s
Number of Presets	256
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	15s~1800s
Home Position	Support
Interface
Built-in Mic	Support
Built-in Speaker	Support
Network	1 * RJ45 10M/100M Base-TX Ethernet
Alarm Light	Support
Certification
Safety	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC12V (±25%), PoE(IEEE 802.3af)
	Power consumption: MAX 18W
Power Interface	Ø 5.5 mm coaxial power plug

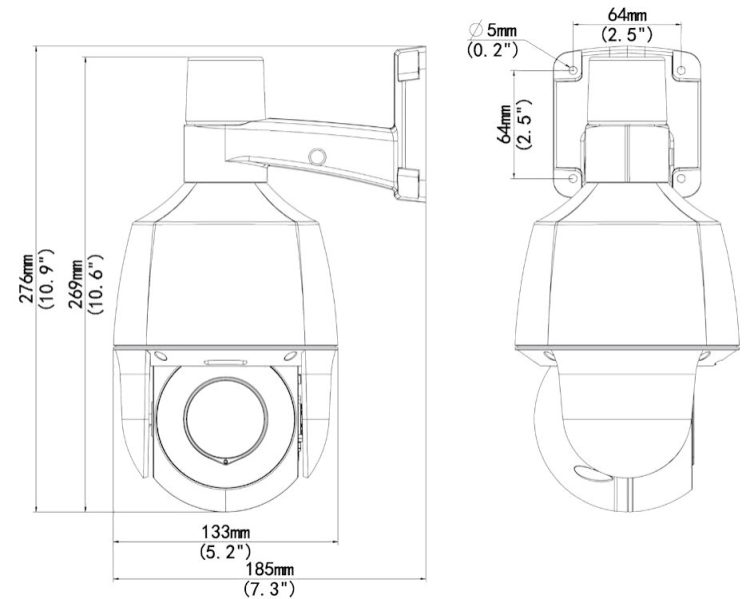

Dimensions (Ø x H)	Φ5.2 inches (5.08 cm) x 10.6 inches (26.92 cm)
Weight	1.92 lb
Working Environment	-4°F (-20°C) to 140°F (60°C), Humidity: ≤95% RH (non-condensing)
Storage Environment	-4°F (-20°C) to 140°F (60°C), Humidity: ≤95% RH (non-condensing)
Surge Protection	2KV
Reset Button	Support
Protection	Ingression protection: IP66 Vandal resistant: N/A

Additional information

Weight	6 lbs
Dimensions	13 × 7 × 7 in
