-43%

XNP-C9303RW

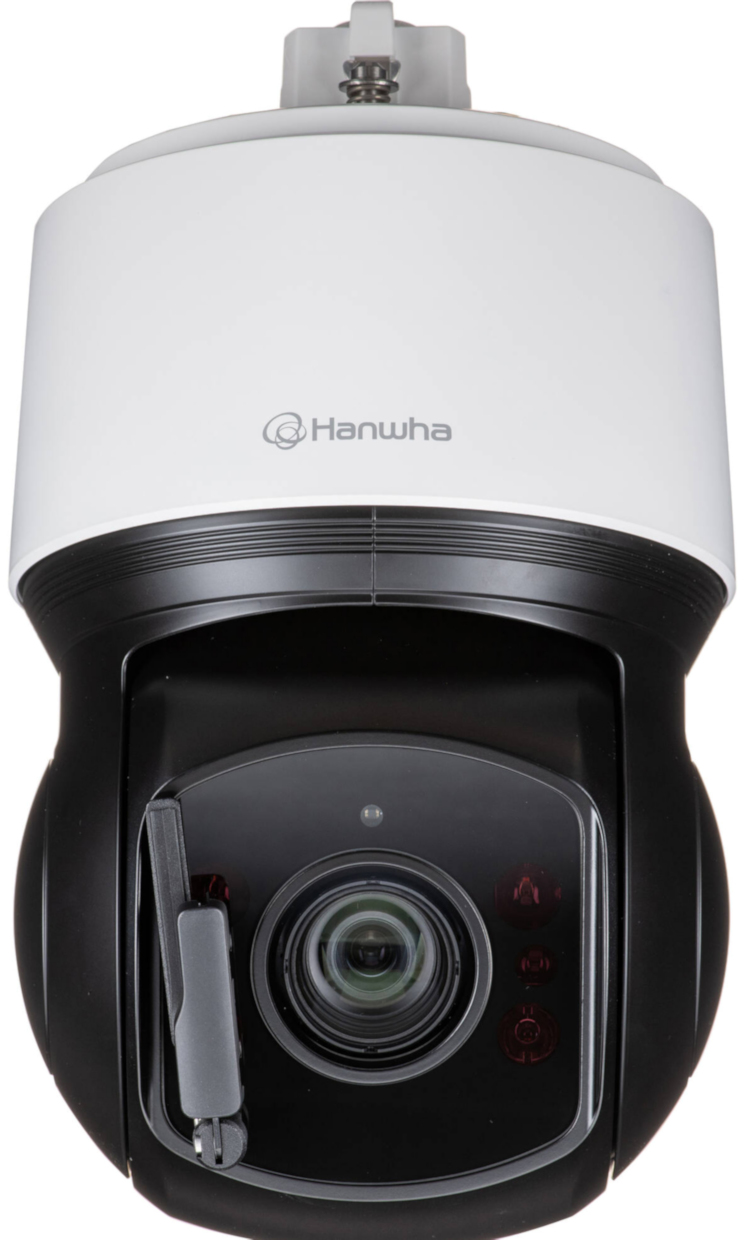

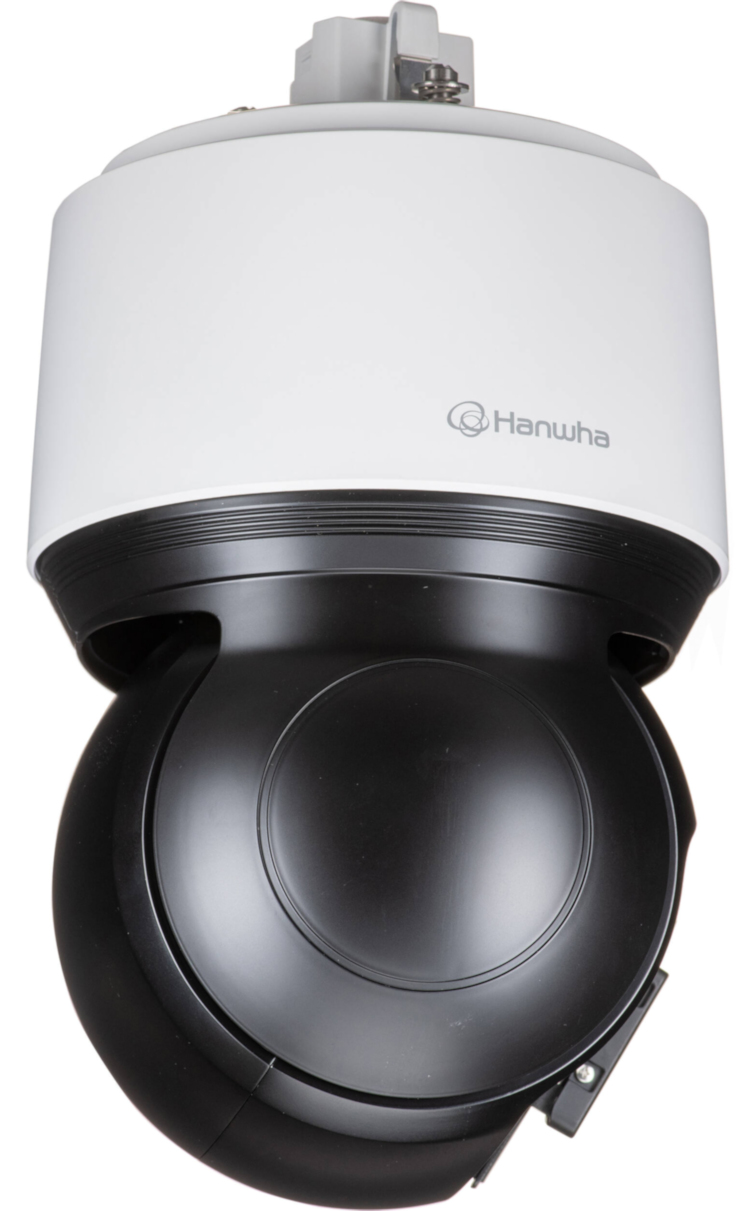

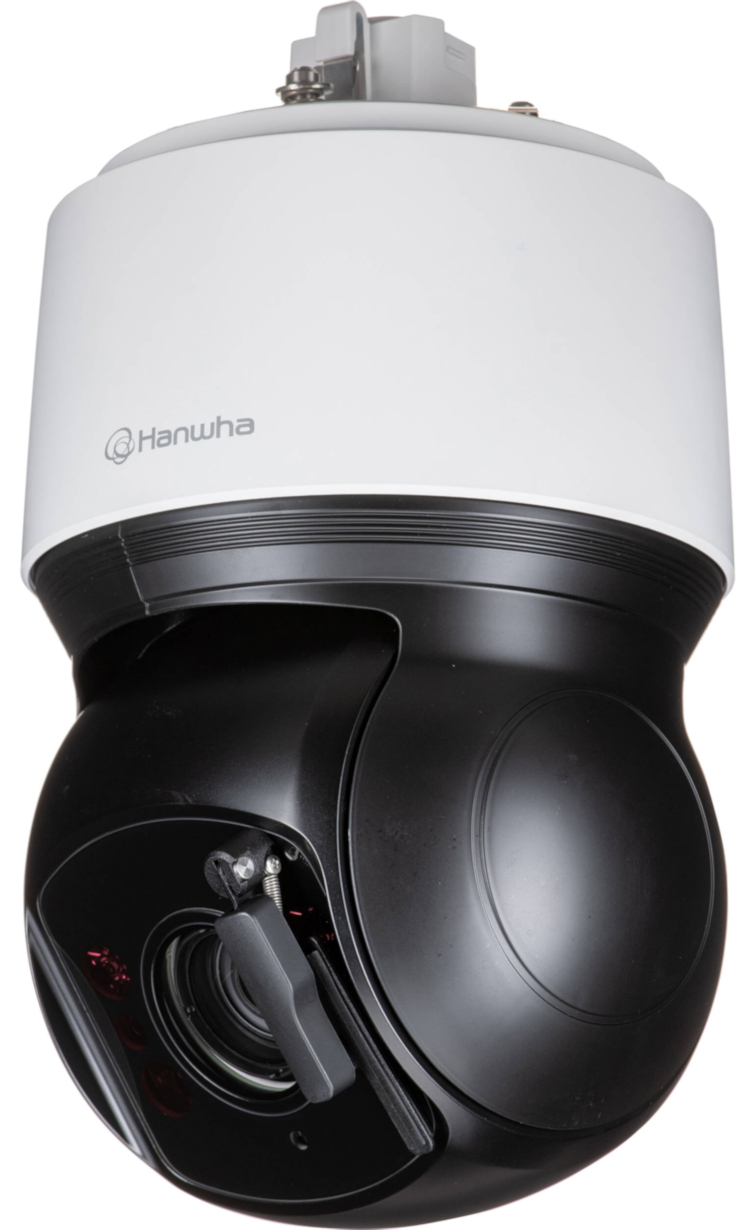

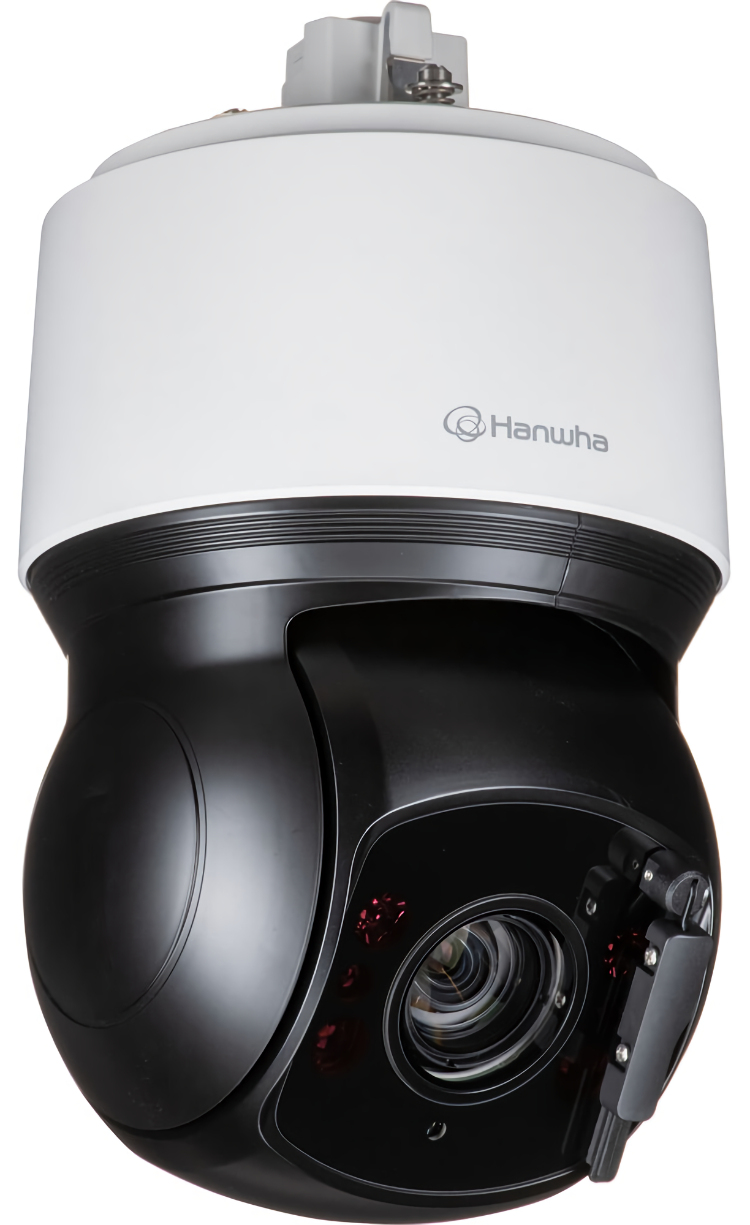

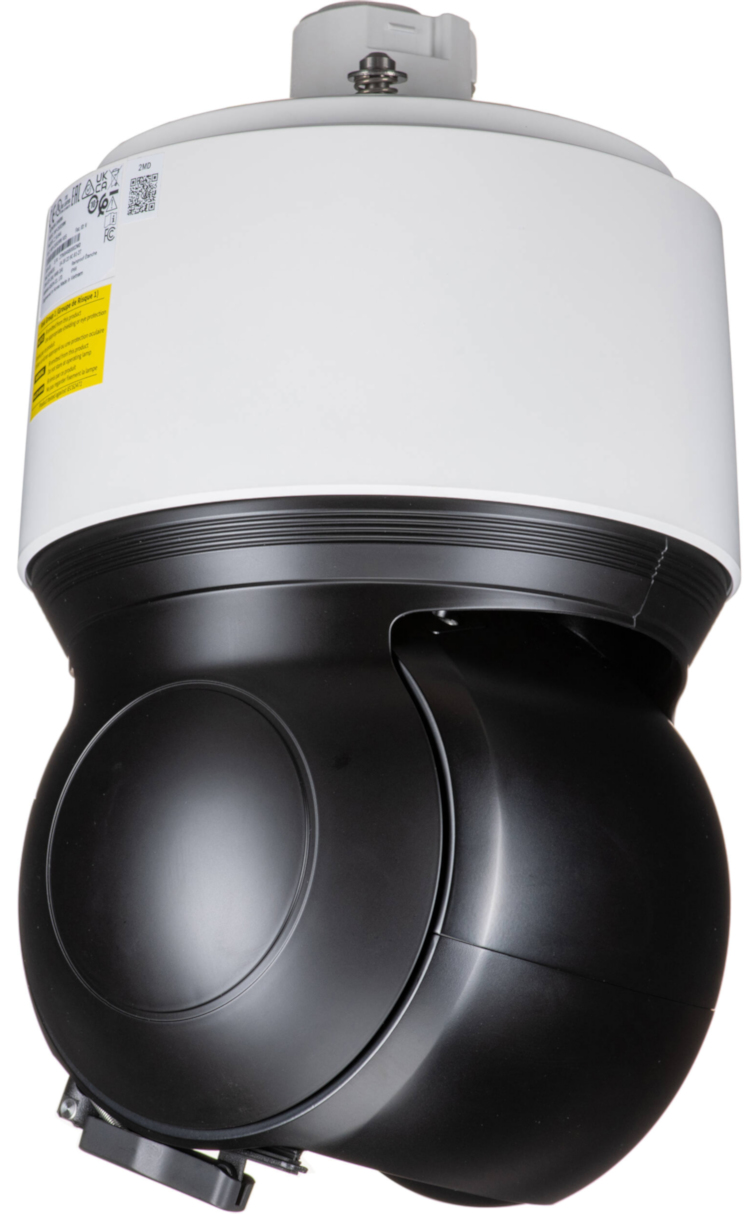

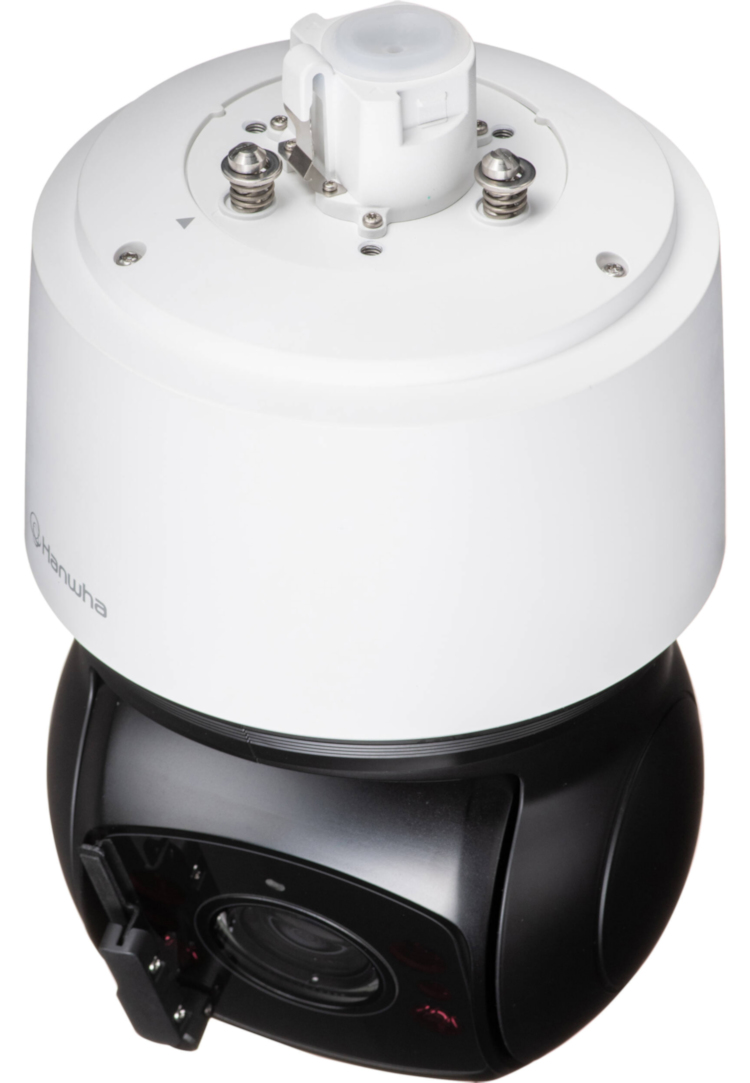

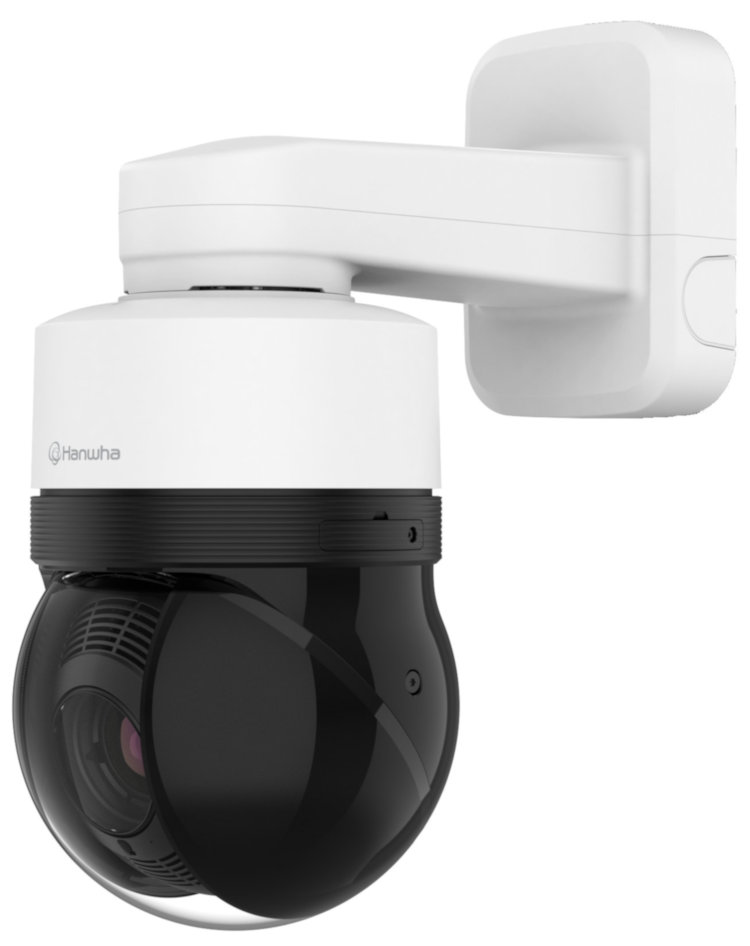

Hanwha XNP-C9303RW 8Megapixel 4K PTZ Camera. Featuring advanced AI technology and 30x optical zoom, it offers crystal clear UHD 4K resolution and reliable weather protection. Shop now at Collsam Security, your trusted Hanwha Vision Supplier.

XNP-C9303RW

Original price was: $5,099.99.Current price is: $2,884.95.

In stock

Original price was: $5,099.99.Current price is: $2,884.95.

Hanwha XNP-C9303RW 4K 30x AI IR Wiper PTZ Camera with 5-150mm Lens

  • 4K resolution
  • IR viewable length : 656ft (199.95 m)
  • 30x optical zoom lens (5mm ~ 150mm) (57.42° ~ 2.19°)
  • -20° tilt look-up capability to see above the horizon
  • Wiper and lens heater for water/snow removal
  • H.265, H.264, MJPEG triple codec support
  • Multiple streaming, WiseStream III support
  • Day and Night (ICR), extreme WDR
  • DIS with Built-in Gyro sensor
  • Azimuth display (Cardinal & intermediate directions)
  • AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
  • Analytics events based on AI engine
    • Object detection
      • Person
      • Face
      • Vehicle
      • License plate),
    • IVA
      • Virtual line
      • Area
      • Enter or Exit
      • Loitering
      • direction
      • intrusion,
  • Analytics events:
    • Defocus detection
    • Motion detection
    • Tampering
    • Fog detection
    • Audio detection
    • Sound classification (with NW I/O box)
    • Object auto-tracking
      • Person
      • Vehicle
      • Target lock track
  • Dual Memory slots (Maximum 512GB x 2)
  • IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
  • HPoE (IEEE802.3bt, Class6, Type3, Injector included)
  • TPM 2.0 with FIPS 140-2 level 2
  • Optional SPM-4210 Network I/O box for alarm & audio I/O
  • Built-in wiper
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Hanwha XNP-C9303RW camera is compelling and can be used for many types of surveillance. The cutting-edge features of this camera make it a top pick for any security system.

It’s the 5-150mm 30x optical zoom lens on the Hanwha XNP-C9303RW that really sets it apart. The powerful zoom capability makes it an ideal choice for large spaces such as parking lots, warehouses, and more.

In addition to its impressive zoom capabilities, the Hanwha XNP-C9303RW also captures images with exceptional clarity and detail. This camera can record clear and sharp video at 30 frames per second in UHD 4K resolution. Advanced codecs like H.265, H264, and MJPEG make monitoring easier and more reliable.

One of the standout features of the Hanwha XNP-C9303RW is its AI-based object auto-tracking and target lock tracking. This camera can automatically track moving objects in its field of view, so no suspicious activity goes unnoticed. This makes it an excellent choice for high-security areas where constant monitoring is necessary.

You can set up alerts and notifications based on things that happen or move with the Hanwha XNP-C9303RW. Furthermore, the Hanwha XNP-C9303RW has smart video analysis, which allows you to set

The Hanwha XNP-C9303RW has a wiper and heater that help remove water, snow, or debris from the lens. This ensures that your camera can always capture clear and unobstructed footage, no matter the weather conditions.

The Hanwha XNP-C9303RW 8 Megapixel 4K 30x AI IR Wiper PTZ Camera offers exceptional features and performance. With its powerful zoom capabilities, high-resolution footage, advanced AI technology, and intelligent video analytics, it is a reliable and effective choice for all your security needs.

Trust Collsam Security to be your dependable Hanwha Vision Supplier and experience the difference this camera can make in your monitoring system.

Video
Imaging Device1/2.8” CMOS
Resolution3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Frame rate.H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps)
Min. IlluminationColor: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Lens
Focal Length (Zoom Ratio)5~150mm(30x) zoom (digital 32x, total 960x zoom)
Max. Aperture Ratio.F1.6(Wide)~F4.56(Tele)
Angular Field of ViewH: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele)
Min. Object Distance.9.84ft (3 m)
Focus ControlOne shot AF, Focus save
Lens TypeDC auto IRIS
Pan / Tilt / Rotate
Pan Range360° Endless
Pan SpeedMax. 500°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range110°(-20°~90°)
Tilt SpeedMax. 350°/sec, Manual: 0.024°/sec~250°/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset AccuracyUp to ±0.1°, Pan/Tilt correction
Operational
Camera TitleDisplayed up to 85 characters
Direction IndicatorSupport
Day and NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic RangeExtreme WDR(120dB)
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport (built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, Quadrangle Support
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Gain ControlOff / Max gain / Manual
White BalanceATW / Narrow ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control (Based on AI engine)
Video RotationFlip and Mirror
AnalyticsClassified object type : Person/Face/Vehicle/License plate Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot
Analytics events based on AI engine
– Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit) Analytics events
– Motion detection, Tampering, Fog detection, Shock detection, Virtual area (Appear/Disappear)
* Audio detection, Sound classification (Via optional I/O box SPM-4210)
Alarm TriggersAnalytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription
Alarm EventsWhen alarm trigger occurred
– File upload (image) : e-mail/FTP
– Notification : e-mail
– Recording : SD/SDHC/SDXC or NAS recording at event triggers
– Handover:  PTZ preset, send message by HTTP/HTTPS/TCP
– MQTT: publication
* Alarm output / Audio clip playback (Via optional I/O box SPM-4210)
IR Viewable LengthWise IR 200m(656.17ft)
Water RemovalSupport (Wiper)
Auto-TrackingSupport
Object auto-tracking (Person/Vehicle) Target lock tracking
Network
EthernetMetal shielded RJ-45 (10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI Engine)
Video Quality AdjustmentH.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast (20 users) / Multicast (128 users) Multiple streaming (Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Application Programming InterfaceONVIF Profile S/G/T/M
SUNAPI (HTTP API)
Wisenet open platform
Security
OS / Firmware ProtectSecure boot, Signed firmware, Firmware encryption
User authenticationDigest Authentication, Prevent brute-force attack
Network authentication802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure CommunicationHTTPS, SRTP, WSS (Web socket secure)
Access ControlAccess control based on IP address
Data ProtectAuthentication information encryption, ZIP compression encryption
AuditUser Access/System/Event log management
Device IDDevice Certificate (Hanwha Private Root CA)
Secure StorageTPM (Trusted platform module), HTPM(Hanwha trusted platform module), SD card partition encrypt
Security CertificateTPM with FIPS 140-2 level 2
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 2slot 1TB (512GBx2)
Memory4GB RAM, 512MB Flash
Environmental and Electrical
Operating Temperature / Humidity-40 °F (-40 °C) ~ +131 °F (55 °C) /
165 °F (73.89 °C) (MAX) based on NEMA-TS 2(2.2.7)
* Start up should be done at above -22 °F (-30 °C) 0~95% RH(Non-condensing)
Storage Temperature / Humidity-58 °F (-50 °C) ~ 140 °F (60 °C) / 0~90% RH
CertificationIP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
Input VoltagePoE++(IEEE802.3bt, Class6, Type3, Injector included)
Power ConsumptionTypical 26W, Max 46W
Mechanical
Color / MaterialWhite, Black / Aluminum+Polycarbonate
RAL CodeWhite: RAL9003 / Black: RAL9005
Product Dimensionsø 7.28 inch (18.49 cm) x1 2.55 inch (6.48 cm)
Weight12.34lb (5.6 kg)
Hanging Mount (Dome)SBP-156HMW
Ceiling Mount (Assy)SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
Wall MountSBP-156WMW, SBP-390WMW2
Pole MountSBP-300PMW2
Parapet MountSBP-156LMW, SBP-300LMW
Corner MountSBP-156KMW, SBP-300KMW1
CabinetSBP-300NBW
Certifications and Standards
EMCICES-3(A)/NMB-3(A) CE/UKCA
– EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
EnvironmentEN IEC 63000
IEC 60529 IP66, IEC 62262 IK10
NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9)
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 460ft (140.21 m) / Tele: 13182.6ft (4.02 km)
Observe (63PPM/ 19PPF)Wide: 184ft (56.08 m) / Tele: 5273.1ft (1,607.24 m)
Recognize (125PPM/ 38PPF)Wide: 92ft (28.04 m) / Tele: 2636.5ft (803.61 m)
Identify (250PPM/ 76PPF)Wide: 46ft (14.02 m) / Tele: 1318.3ft (0.4 km)
