NVR504-32B-P16
Original price was: $1,969.00.$688.95Current price is: $688.95.
SKU: NVR504-32B-P16
Categories: 32 Channel Network Video Recorders NVRs, Network Video Recorders NVRs
Tags: 16 PoE, 802.3AF, 802.3AT, Face detection, H.264, H.265, NDAA Compliant;, ONVIF (Profile S Profile G Profile T), People Counting People Flow Counting, RAID 0/1/5, Smart Intrusion Prevention SIP, Temperature Detection, Two-Way Audio, Ultra 265, UMD (Ultra Motion Detection), VCA AI Search, Vehicle Detection- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description

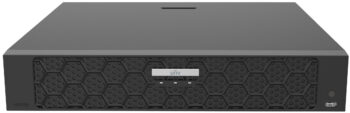

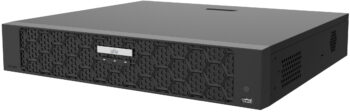

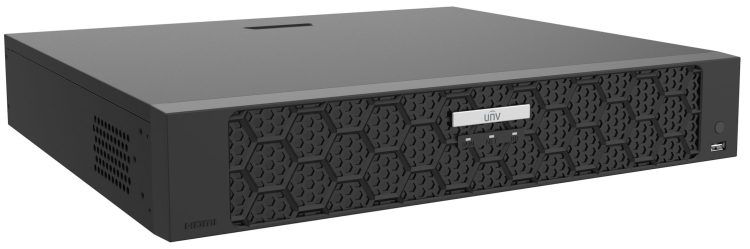

Introducing the Uniview NVR504-32B-P16, a state-of-the-art network video recorder designed for professional-grade security and surveillance monitoring. This high-capacity NVR is perfect for businesses, institutions, and large-scale residential properties that require superior video recording performance. With 32 IP video input channels, it can support up to 16 Megapixels (MP) of clarity and resolution. Therefore, it is ideal for capturing every detail of your surroundings.
One of the standout features of the Uniview NVR504-32B-P16 is its 16 plug-and-play independent Power over Ethernet (PoE) interfaces, following the IEEE 802.3af/at standards. These interfaces provide both power and data transmission to connected cameras. As a result, there is no need for separate power cables, which simplifies the installation process. This ensures a neat and efficient setup. It also saves time and labor costs.
With a maximum incoming bandwidth of 320 Mbps and outgoing bandwidth of 160 Mbps, this NVR can handle a substantial amount of data streams from multiple cameras simultaneously.
It also has 4 SATA interfaces. Each of these can support up to 16 TB per hard disk drive (HDD). Therefore, the Uniview NVR504-32B-P16 has a maximum storage capacity of 64 TB.
This provides ample space for storing footage and allows for longer video retention.
The Uniview NVR504-32B-P16 is equipped with advanced video compression technology, supporting Ultra 265, H.265, and H.264 video formats. These formats optimize data streams, reducing storage costs and bandwidth usage by up to 75%. As a result, you save space. In addition, this increases efficiency, making the NVR an eco-friendly and cost-effective solution.
In addition, the NVR has built-in Automatic Network Redundancy (ANR) technology. This feature ensures that in the event of a dropped connection, the NVR will immediately download recorded video from cameras with localized SD cards as soon as the connection is restored. This leads to continuous and uninterrupted recording, without any gaps or loss of footage.

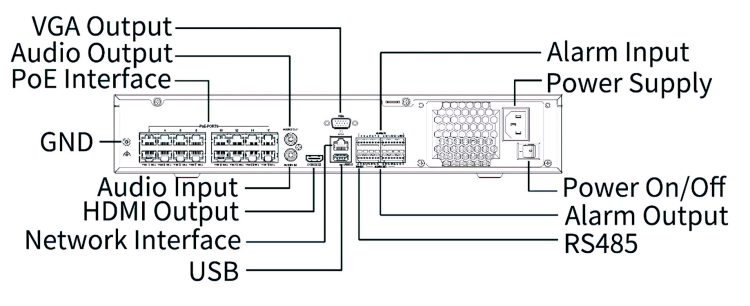

The Uniview NVR504-32B-P16 also offers various output options, including independent HDMI (up to 4K resolution) and standard VGA video outputs. It also has a 1-channel RCA audio input/output for two-way communication. There are also 16-channel physical alarm inputs and 4-channel alarm outputs. These features enable seamless integration with third-party camera manufacturers. The NVR is ONVIF profile compliant (Profiles S, G, and T) and supports standard RTSP protocols.
In conclusion, the Uniview NVR504-32B-P16 is a top-of-the-line NVR that provides unmatched performance, storage capacity, and versatility for all your security and surveillance needs. With its advanced features and high-quality recording capabilities, it is the perfect solution for businesses and properties that require superior surveillance and monitoring.
| Decoding | |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR504‑16B‑P16: Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP (4800×2688) @30, 2 x 12MP @30, 2 × 4K @30, 4 x 5MP @30, 6 x 4MP @30, 8 x 3MP @30, 14 × 1080P @30, 16 × 720P @30 NVR504‑32B‑P16: Ultra 265/H.265: 2 x 16MP @30, 2 x 12MP @30, 4 × 4K @30, 6 x 5MP @30, 8 x 4MP @30, 10 x 3MP @30, 16 × 1080P @30, 32 × 960P @25 H.264: 2 x 16MP (4800×2688) @ 30, 2 x 12MP @ 30, 2 × 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @ 30, 14 × 1080P @ 30, 30 × 720P @ 30, 32 x D1 |
| AudioCompression | G.711A, G.711U |
| Network | |
| IncomingBandwidth | 320Mbps |
| OutgoingBandwidth | 160Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6 |
| Browser(Plugin) | Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) |
| Video/AudioInput | |
| IPVideoInput | NVR504‑16B‑P16:16‑ch NVR504‑32B‑P16:32‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | |
| HDMIOutput | HDMI: 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGAOutput | VGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR504‑16B‑P16: 1/4/6/8/9/16 NVR504‑32B‑P16: 1/4/6/8/9/16/25/32 |
| CorridorModeScreen | NVR504‑16B‑P16:3/4/5/7/9/10/12/16 NVR504‑32B‑P16:3/4/5/7/9/10/12/16/32 |
| Two-wayAudio | |
| Two-wayAudio | 1‑ch, RCA (using the audio input and output) |
| Snapshot | |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | |
| RecordingResolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | 16‑ch |
| Smart | |
| VCADetectionbyIPC | Face Detection; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| VCASearch | Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| SmartbyIPC | All channels (up to 8 images/s in total): face detection, vehicle detection, temperature detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | |
| GeneralAlarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| AlertAlarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
| GUILanguage | |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16TB for each HDD (the maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| RedundantStorage | Support |
| DiskArrayType | RAID 1, 5 |

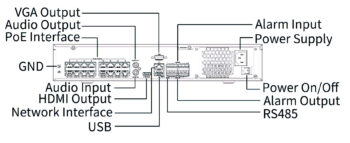

| External Interface | |
| NetworkInterface | 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 1 x USB 2.0; rear panel: 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| AlarmIn | 16‑ch |
| AlarmOut | 4‑ch |
| PowerSupply | AC 100 ～ 240 V |
| PowerSwitch | Support |
| PoE | |
| Interface | 16 RJ45 10M/100M self‑adaptive Ethernet Interface |
| MaxPower | Max 30W for a single port, max 150W in total |
| SupportedStandard | IEEE 802.3at, IEEE 802.3af |
| WorkingEnvironment | |
| WorkingTemperature | 14°F (‑10°C) ~ 131°F (55°C ) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 20W |
| Dimensions | |
| Weight(withoutHDD) | 8.82 lb |

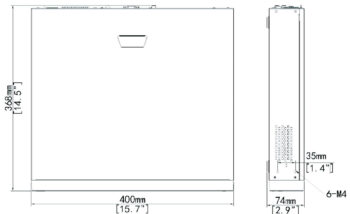

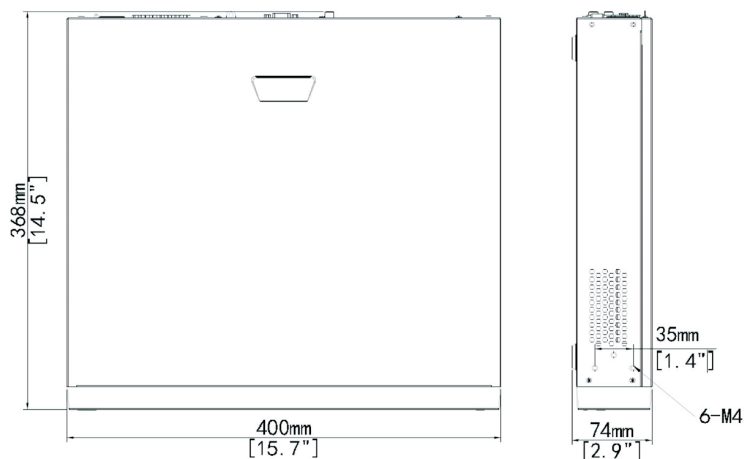

| Dimensions | 15.7 inches (39.88 cm) × 14.5 inches (36.83 cm) × 2.9 inches (7.37 cm) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part 15, Subpart B |
Additional information
| Weight | 11 lbs |
|---|---|
| Dimensions | 19 × 18 × 6 in |
