NVR508-32B
Price range: $1,694.95 through $15,420.95

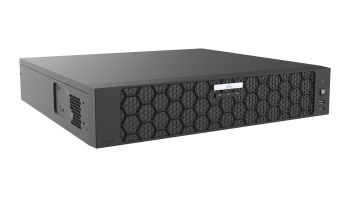

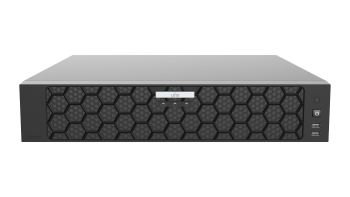

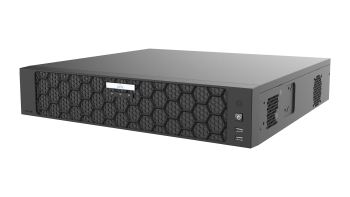

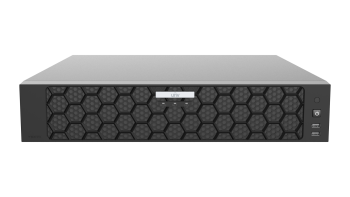

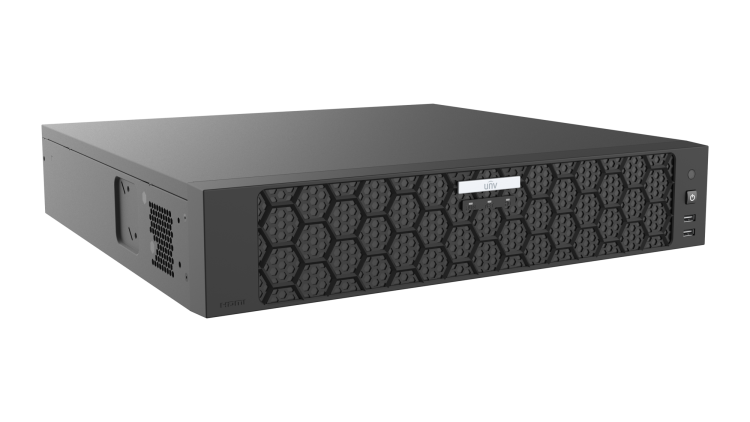

Uniview NVR508-32B 32-Channel Network Video Recorder
- 32 IP camera channels with recording up to 16 MP
- Ultra 265, H.265, and H.264 video compression
- Eight SATA interfaces with RAID 1 and RAID 5 support
- 4K HDMI output and 16-channel synchronized playback
- Dual gigabit Ethernet, alarm I/O, ANR, and NDAA compliance
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The NVR508-32B network video recorder by Uniview is an 8-bay surveillance NVR for commercial security systems. This 16MP security camera recorder handles video from up to 32 IP cameras and supports resolutions up to 16 megapixels. Ultra 265, H.265, and H.264 compression reduce bandwidth and storage needs while preserving useful detail for live monitoring and investigations. This design suits offices, warehouses, schools, retail sites, and larger properties.
Two gigabit Ethernet ports provide reliable network connections. In addition, independent HDMI and VGA outputs support flexible monitoring setups. The HDMI output reaches 4K resolution for clear local viewing. The NVR508-32B network video recorder also plays back up to 16 channels at once. Therefore, teams can review several locations quickly.
Eight SATA interfaces give this 8-bay surveillance NVR substantial local storage. This recorder supports large surveillance hard drives, RAID 1, RAID 5, disk groups, and redundant storage. Therefore, administrators can build storage around retention and resilience goals. N+1 hot spare support, ANR, and recovery tools also help protect recordings during equipment or network interruptions. These options support both planned expansion and long-term video retention.
The 16MP security camera recorder helps users find people, vehicles, motion, intrusion events, heat maps, and other camera analytics. Moreover, 16 alarm inputs and four alarm outputs support event-based system designs. Dual audio connections enable two-way communication. USB 2.0, USB 3.0, and RS-485 ports simplify local operation and integration with compatible security equipment.
The 2U rack-mount chassis fits professional equipment rooms and operates from 100–240 VAC. Its clear interface supports daily security work without adding unnecessary complexity. Finally, NDAA compliance makes the NVR508-32B network video recorder suitable for eligible projects that require approved equipment, centralized video management, expandable storage, and dependable 4K display performance. Remote access also helps authorized teams manage distributed locations efficiently.
| Model | NVR508-32B |
|---|---|
| Product Type | 32-channel network video recorder |
| Video Compression | Ultra 265, H.265, H.264 |
| IP Video Input | 32 channels |
| Recording Resolution | Up to 16 MP; also supports 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, 2CIF, and CIF |
| Synchronous Playback | Up to 16 channels |
| Incoming / Outgoing Bandwidth | 320 Mbps / 160 Mbps |
| Remote Users | Up to 128 |
| Video Outputs | Independent HDMI and VGA; HDMI supports up to 4K (3840 × 2160) at 30 Hz |
| Audio | 1 RCA input, 1 RCA output, one-channel two-way audio; G.711A/G.711U |
| Storage | 8 SATA interfaces; up to 24 TB per HDD |
| Storage Protection | RAID 1, RAID 5, disk groups, redundant storage, N+1 hot spare, and ANR |
| Network Interfaces | 2 × RJ45 10/100/1000 Mbps Ethernet |
| USB | Front: 2 × USB 2.0; rear: 1 × USB 3.0 |
| Control / Alarm | 1 × RS-485, 16 alarm inputs, 4 alarm outputs |
| Power | 100–240 VAC; maximum 25 W without HDD |
| Operating Environment | 14°F (-10°C) — 131°F (55°C); up to 90% RH, non-condensing |
| Product Dimensions | 17.4 inches (ca. 44 cm) × 16.8 inches (ca. 43 cm) × 3.5 inches (ca. 9 cm) |
| Product Weight | Up to 12.13 lb (5.5 kg) without HDD |
| Certifications | CE, FCC, UL, RoHS, WEEE, and NDAA compliant |
Additional information
| Weight | 16 lbs |
|---|---|
| Dimensions | 20 × 19 × 6 in |
| Hard Drive | No Hard Drive, 2 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive, 8 TB Hard Drive, 10 TB Hard Drive, 12 TB Hard Drive, 24 TB Hard Drive, 48 TB Hard Drive, 96 TB Hard Drive, 144 TB Hard Drive, 192 TB Hard Drive |
Brand
Uniview
Uniview security cameras provide professional video monitoring for commercial, residential, and enterprise applications. Video surveillance recorders provide centralized recording and storage for compatible security cameras. Uniview NVR systems help manage network video, while IP surveillance cameras support flexible indoor and outdoor monitoring across many security environments.
These security solutions support new installations, upgrades, and system expansion. Uniview security cameras provide options for different monitoring requirements. Video surveillance recorders help users store and review recorded footage. Uniview NVR systems support scalable recording, while IP surveillance cameras help expand coverage across connected networks.
Collsam Security provides Uniview products for professional surveillance applications. Available cameras, recorders, accessories, and intelligent video solutions support businesses and other protected properties. These products provide practical options for building, expanding, and maintaining dependable video security systems while supporting effective monitoring, recording, storage, and system management.
