XRN-3220B4

Upgrade your surveillance system with Hanwha Vision XRN-3220B4 8K NVR. With 32 channels, 520 Mbps recording, and AI search, it's a top choice for security. Get yours now at Collsam!

XRN-3220B4

Price range: $3,863.95 through $13,691.95

In stock

Price range: $3,863.95 through $13,691.95

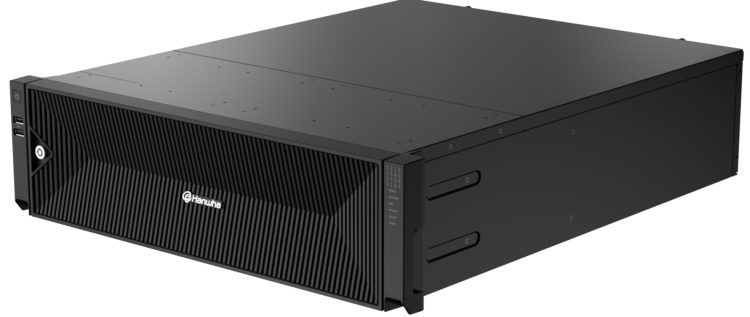

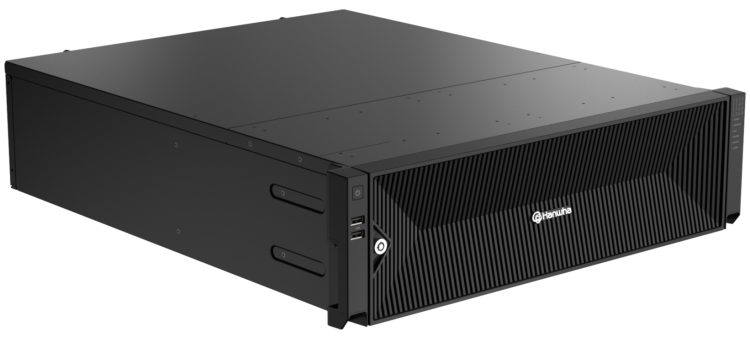

Hanwha Vision XRN-3220B4 32 Channels 8K Intel Based NVR with Up to 160 TB

  • 32CH, 32MP resolution
  • SATA 16 HDD Bays (up to 160TB)
  • Up to 520Mbps recording / transmission bandwidth
  • Easy Channel/Event/Alarm configuration
  • Virtual Channel View
  • Dynamic layout
  • Built-in Support for Web Management (up to 100)
  • Compatible with Wisenet Viewer, Wisenet mobile
  • NDAA compliant and TPM integrated
  • Manual event support
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Hanwha Vision XRN-3220B4 8K NVR is a high-performance network video recorder designed for professional surveillance systems. This camera has 32 cameras and 16 slots for hard drives that can hold up to 10 TB of information. This makes it ideal for large-scale security installations that require long-term storage of high-resolution video footage.

This NVR offers versatile recording options, supporting the latest compression standards including H.265, H.264, and MJPEG. You can use SUNAPI, ONVIF, ARB, and Failover (N+1) to have many cameras and a good backup system. Even though multiple cameras can record and view simultaneously, the maximum recording and playback bandwidth is 520 Mbps.

The Hanwha Vision XRN-3220B4 can record two streams and use iSCSI to save space. It can also be accessed from far away. Adapting the frame rate and compression according to the amount of motion in the recorded scene further enhances storage efficiency. This results in significant bandwidth and storage savings while maintaining high-quality video recording.

Advanced features such as HDMI dual display, alarm I/O and 2-way audio support are offered by the Hanwha Vision XRN-3220B4. Use this to watch and interact with the cameras in real-time. This NVR has a high-quality camera with a resolution of 32MP and can record video without any distortion.

The Hanwha Vision XRN-3220B4 can use AI search and QR codes to find things on your phone or computer. Data can be protected using RAID 5 or 6 and swapped in RAID mode for easy maintenance and data management. The Hanwha XRN-3220B4 is a powerful digital video recorder that meets the strict requirements of professional surveillance systems.

Datasheet

Download

Upgrade your surveillance system with Hanwha Vision XRN-3220B4 8K NVR. With 32 channels, 520 Mbps recording, and AI search, it's a top choice for security Datasheet.

Quick Guide

Download

Upgrade your surveillance system with Hanwha Vision XRN-3220B4 8K NVR. With 32 channels, 520 Mbps recording, and AI search, it's a top choice for security Quick Guide.

Specifications

Download

Upgrade your surveillance system with Hanwha Vision XRN-3220B4 8K NVR. With 32 channels, 520 Mbps recording, and AI search, it's a top choice for security Specifications.

User's Manual

Download

Upgrade your surveillance system with Hanwha Vision XRN-3220B4 8K NVR. With 32 channels, 520 Mbps recording, and AI search, it's a top choice for security User's Manual.

Display
Network cameraInputsMax. 32CH
Resolution32MP ~ CIF
ProtocolsSUNAPI, ONVIF
DecodingLocal Display[Dual Display]
HDMI 1: 3840×2160 (30Hz)
HDMI 2: 1920×1080 (60Hz)
Multi Screen Display[Local Monitor]

  • Dynamic layout, Virtual channel view
  • Clone Mode : Up to 32 Division
  • Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 16 Div.

[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9

Resolution32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(4ch@30fps), 1080p(16ch@30fps), 720P(32ch@30fps), D1(48ch@30fps)
Intelligent Analysis
AI SearchObject AttributeCompatible for Hanwha AI Camera
Performance
Operating SystemEmbeddedLinux
RecordCompressionH.265, H.264, MJPEG
Recording BandwidthDistributed mode : Up to 520 Mbps
Normal mode : Up to 300 Mbps
{RAID mode}
Normal : Up to 520 Mbps
Degrade/ Rebuild : Up to 520 Mbps
Resolution32MP ~ CIF
Mode                                                                  Normal, Dual Stream, Schedule (Continuous / Event), Event (Pre/Post), Bookmark
Event TriggerAlarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Event Actione-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer,
Monitor Out, FTP,
SUNAPI Command, Shutdown
Search and PlayUserMax. 4 Users (Local 1, Remote 3)
Simultaneous playbackMax. 80CH (Local 32CH, Remote 16CH per user)
Fisheye Dewarping Support (Local 1CH), CMS
ModeTime/ Event/ Text/ ARB/ Bookmark/ Smart search
Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Playback ControlFast/Slow Forward / Backward, Move one step Up / Down
StorageSupported HDDUp to 10TB
HDD SlotSATA 16ea (Max. 160TB, Non-RAID mode), Hot swap
RAID RAID-5/6 (Array Size : 8 HDDs x 2 Array)
ExternaliSCSI storage
BackupFile backupRecorder/SEC/AVI/JPG (Local), AVI/PNG (Network)
FunctionMultichannel (Up to 16CH) Play, Date-Time/Title display
Network
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNSHanwha DDNS
Transmission BandwidthMax. 520Mbps
AudioInput/Output32 CH (network)
CompressionG.711, G.726, AAC (16/48KHz)
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast (10), Multicast (20)
SecurityIP address filtering, User access Log, 802.1x, TLS, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmware, TPM support
Web viewerSupported OSWindows10 or higher, macOS 13.5.2 or higher
Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software                                                    SSM, Web viewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera SetupRegisterAuto, Manual
ItemIP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera
Webpage
PTZControlVia GUI, Web viewer, SPC-2000/2001
Preset300 Presets
SmartphoneSupport Model  iOS, Android
Protocol SupportRTP, RTSP, HTTP, CGI(SUNAPI)
Max. Remote Users.Search(3), Live Unicast (10)
ControlLive 16CH(Multi-Profile Support), Playback 4CH
RedundancyFailoverN+1
ARBSupport
Easy configurationP2P(QR code)

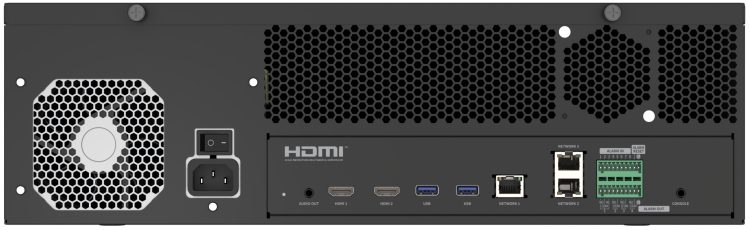

Interface
FrontIndicatorHDD, Alarm, Power, Record, Backup, Network, RAID
StorageYes
ResetPower button
HDD Key LockYes
HDMI2EA (Playback/Setup → HDMI1)
HDMI1 : 3840×2160 30Hz
HDMI2 : 1920×1080 60Hz
AudioOut 1EA (3.5mm Audio Jack)
EthernetRJ-45 3EA (LAN/WAN, 1Gbps)
AlarmIn 8EA, Out 4EA
USB4EA (Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inletAC 1EA
System
LogLog ListMax. 100,000 (System Log, Event Log each)
System ControlMouse (include wireless), Keyboard (include wireless), Web, Controller (SPC-2000/2001)
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 32 °F (0 °C) to 104 °F (40 °C)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS)
Power ConsumptionMax. 265W (904.2 BTU with HDD 16ea)
Mechanical
Color / MaterialBlack / Metal
Dimension (W × H × D)17.32 inches (43.99 cm) x 5.2 inch (13.21 cm) x 22.48 inch (57.1 cm)
WeightApprox. 30.9 lb (14.02 kg), HDD not included
