XRN-3210RB2

Hanwha XRN-3210RB2 8K NVR. With 32 channels, 80 TB storage, and advanced features like WiseStream technology and AI search, you'll have peace of mind knowing your property is secure.

XRN-3210RB2

Price range: $2,706.95 through $4,386.95

In stock

Price range: $2,706.95 through $4,386.95

Hanwha Vision XRN-3210RB2 32 Channel 32Megapixel Network Video Recorder up to 80 Terabyte Hard Drive

  • Up to 32 channels, Supports up to 32 megapixel camera resolution
  • 400Mbps network camera recording
  • Support 4K video out
  • Support dual monitor video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 8 internal Hard Drive
  • Support RAID 5/6
  • Plugin-free web UI
  • ARB & failover(N+1), dynamic event, Wisenet AI metadata search support
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Hanwha XRN-3210RB2 8K NVR network video recorder that offers advanced features for high-quality surveillance and recording. With its Intel-based processor, this NVR can handle up to 32 channels, making it perfect for large-scale security systems.

It doesn’t have a hard drive, so you can choose how much space you need. You can store up to 80 terabytes using 8 hard drives inside the computer. This NVR has advanced features, such as RAID 5 and 6, ARB, and WiSeStream technology.

The Hanwha XRN-3210RB2 8K NVR can record video at up to 400 Mbps and play it back smoothly. Dual stream recording allows you to record two streams at different resolutions at the same time. This NVR can record and display 32 megapixels, which makes every detail clear and precise.

The Hanwha XRN-3210RB2 8K NVR has easy management and control features. With HDMI and VGA dual display, you can view live footage on multiple screens simultaneously. The web UI 2.0 eliminates the need for plugins and allows for a smooth and user-friendly experience. The NVR can search for specific videos and events with Wisenet AI cameras.

The Hanwha XRN-3210RB2 8K NVR can use DEWARP Fisheye footage online. This makes it look better and more realistic. This feature is particularly useful for monitoring large areas or tight spaces, such as shopping malls or warehouses. With the CMS on your NVR, you can monitor your security system from anywhere.

The Hanwha XRN-3210RB2 8K NVR offers features like HDD hot swapping. This allows for seamless and continuous operation, even during maintenance or upgrades. This NVR is a good choice for businesses and organizations that want a high-quality surveillance system.

Datasheet

Download

Hanwha XRN-3210RB2 8K NVR. With 32 channels, 80 TB storage, and advanced features like WiseStream technology and AI search, you'll have peace of mind knowing your property is secure datasheet.

Manual

Download

Hanwha XRN-3210RB2 8K NVR. With 32 channels, 80 TB storage, and advanced features like WiseStream technology and AI search, you'll have peace of mind knowing your property is secure Manual.

Specification

Download

Hanwha XRN-3210RB2 8K NVR. With 32 channels, 80 TB storage, and advanced features like WiseStream technology and AI search, you'll have peace of mind knowing your property is secure Specification.

Quick Guide

Download

Hanwha XRN-3210RB2 8K NVR. With 32 channels, 80 TB storage, and advanced features like WiseStream technology and AI search, you'll have peace of mind knowing your property is secure Quick Guide.

Display
Network cameraInputsMax. 32CH
Resolution32MP ~ CIF
ProtocolsSUNAPI, ONVIF
DecodingLocal Display[Dual Display]
HDMI 1: 3840x 2160 (30Hz) HDMI 2: 1920x 1080 (60Hz)
Multi Screen Display[Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/  8/ 9/ 13/ 16/ 25/ 36/ Sequence
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps),
720P(960fps), D1(960fps)
Performance
Operating SystemEmbeddedLinux
RecordCompressionH.265, H.264, MJPEG
Recording BandwidthMax. 400Mbps
Resolution32MP ~ CIF
ModeNormal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark
Event TriggerAlarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Event Actione-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search and PlayPlayback BandwidthRAID Mode : Max. 64Mbps(64CH simultaneously)
Non-RAID Mode : Max. 32Mbps
UserMax. 4 Users (Local 1, Remote 3)
Simultaneous playbackMax. 80CH (Local 32CH, Remote 16CH per user)
Fisheye DewarpingCMS
ModeDate & Time (Calendar), Event list, Text Search, Smart Search
ResolutionCIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Playback ControlFast/Slow Forward / Backward, Move one step Up / Down
StorageSupported HDDUp to 10TB ea
HDD SlotSATA 8ea (Max. 80TB, Non-RAID mode)
ExternaliSCSI storage
RAIDRAID-5/6 (Single, 1 Array)
BackupFile backupBU/Exe(GUI), JPG/AVI (Network)
FunctionMultichannel (Up to 16CH) Play, Date-Time/Title display
Network
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNSHanwha DDNS
Transmission BandwidthMax. 400Mbps
Audio GUI32 CH (network)
WebG.711, G.726, AAC (16/48KHz)
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast (10), Multicast (20)
SecurityIP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewerSupported OSWindows 10, macOS 10.13
Supported browserGoogle Chrome, Microsoft Edge, Mac Safari
Viewer SoftwareWAVE, SSM, Web viewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera SetupRegisterAuto, Manual
ItemIP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZControlVia GUI, Web viewer, SPC-2000
Preset300 Presets
SmartphoneSupport ModeliOS, Android
Protocol SupportRTP, RTSP, HTTP, CGI(SUNAPI)
ControlLive 16CH(Multi-Profile Support), Playback 4CH
Max. Remote Users.Search(3), Live Unicast (10)
RedundancyFailoverN+1
ARBSupport
Easy configurationP2P(QR code)

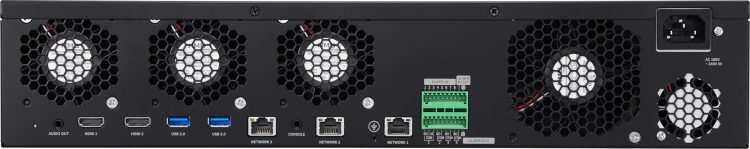

Interface
FrontIndicatorHDD, Alarm, Power, Record, Backup, Network
StorageOK
ResetOK
HDD Key LockOK
HDMI2EA (Playback/Setup → HDMI1)
HDMI1 : 3840×2160 30Hz
HDMI2 : 1920x 1080 60Hz
AudioOut 1EA
EthernetRJ-45 3EA (LAN/WAN, 1Gbps)
AlarmIn 8EA, Out 4EA
USB4EA (Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inletAC 1EA
System
Log  Log ListMax. 100,000 (System Log, Event Log each)
System Control                                        Mouse, Web, Controller (SPC-2000)
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature32 °F (0 °C)to 104 °F (40 °C)
Operating Humidity20% ~ 85% RH
Electrical
Power Input100 ~ 240 VAC ±10%; 50/60 Hz, 1.7A (Single SMPS)
Power ConsumptionMax. 160W (with 10TB HDD 8EA)
Mechanical
Color / MaterialBlack / Metal
Dimension (W × H × D)17.24 inches (43.79 cm) × 3.35 inch (8.51 cm) × 17.12 inch (43.48 cm)
Weight20.1 lb (9.12 kg), HDD Not Included
Intelligent Analysis
AI Search                 Object AttributeCompatible for Wisenet AI Camera
• The latest product information / specifications can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
