SLA-T2480

0 out of 5

( There are no reviews yet. )

Original price was: $215.00.Current price is: $139.75.

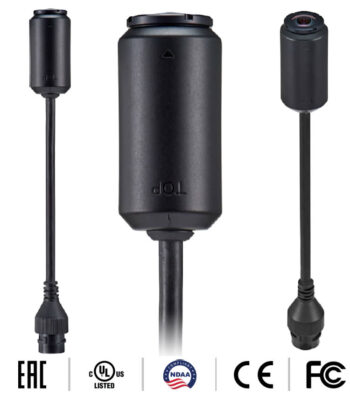

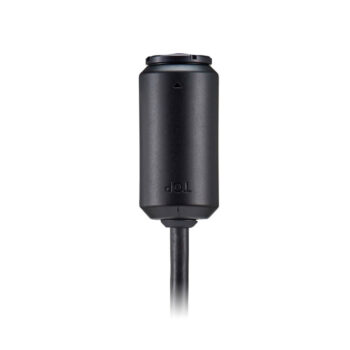

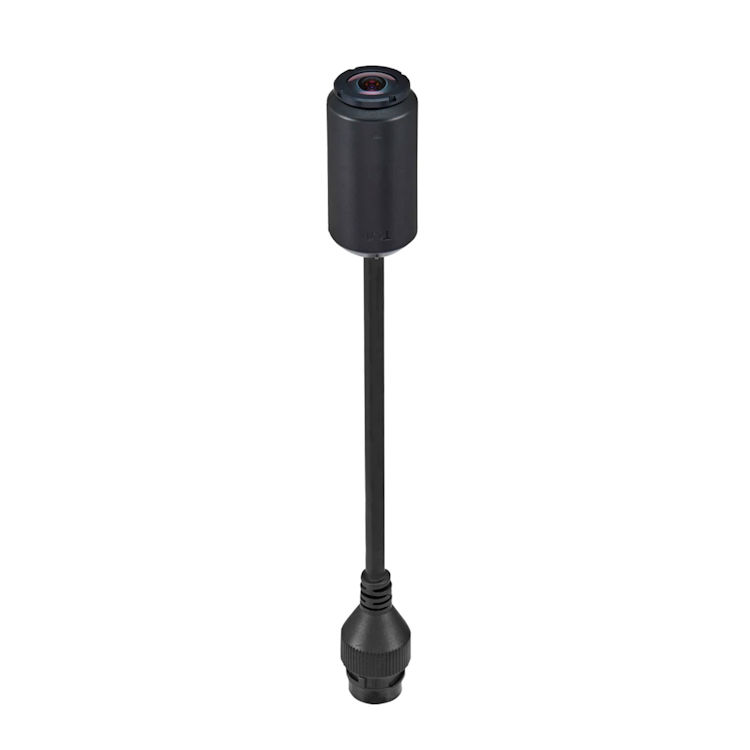

Hanwha Techwin SLA-T2480 2.4mm Lens/Imager Straight Body for XNB-6001 314.96 inches (8 m) cable

2.4 mm fixed lens module
Max. 2 Megapixel (1920 × 1080) resolution
0.45 Lux@F2.0
120dB WDR
FoV: H: 138°

SKU: SLA-T2480 EAN: 8801089137883 Categories: Camera Lenses, Covert Cameras and DVRs, Spy and Surveillance Equipment Tags: 1/2.8" 2 Megapixel CMOS Sensor, 2.4 mm fixed lens, Covert Camera Lens, NDAA Compliant;

Description

The Hanwha Vision SLA-T2480 is a state-of-the-art imaging device designed to collaborate exclusively with the Hanwha Wisenet XNB-6001 covert camera main unit. This ultra-wide fixed lens imager module is an essential component for creating modular and discreet surveillance setups. Therefore, it is ideal for use in various environments such as retail spaces, banking environments, and compact operational areas.

This 2MP imager module boasts a maximum resolution of 1920 × 1080 at up to 60 frames per second. This setup ensures fluid and sharp video capture.

Its fixed 2.4 mm focal length and f/2.0 aperture make it perfect for capturing high-quality images and videos. As a result, it provides reliable and accurate surveillance footage.

With a 138° horizontal, 73° vertical, and 168° diagonal reach, the Hanwha Vision SLA-T2480 offers expansive visual coverage. It allows for comprehensive monitoring of any space.

One of the standout features of the Hanwha Vision SLA-T2480 is its 120 dB Wide Dynamic Range (WDR). This effectively balances high-contrast scene exposure, resulting in clear and detailed footage even in challenging lighting conditions. The device can operate in low light conditions, with clear performance down to 0.45 Lux. Therefore, you can capture crucial details in any situation.

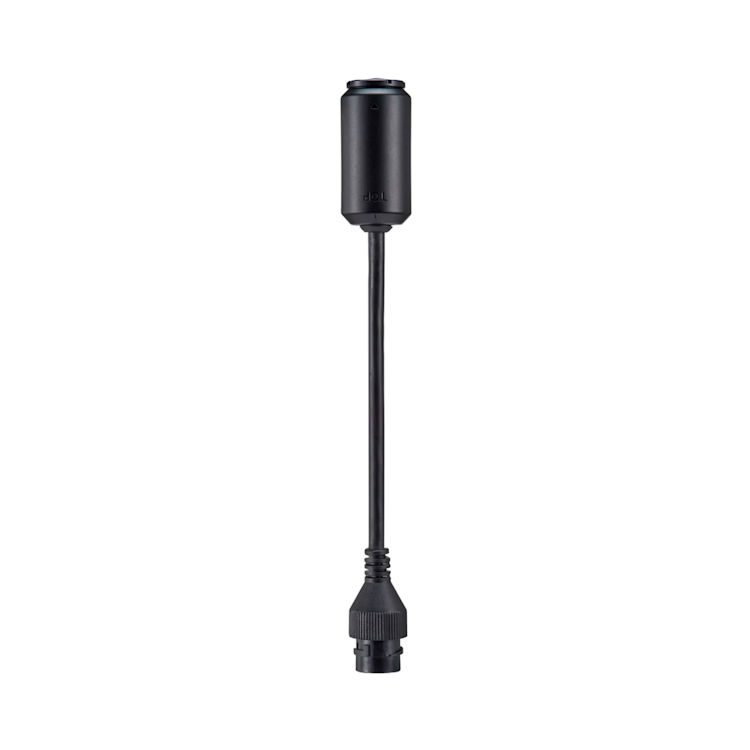

An 8-meter (26-foot) integrated RJ-12 cable connects the straight body design of the Hanwha Vision SLA-T2480. This makes it easy to install and set up.

It is important to note that this component cannot function as a standalone security camera. Instead, it must be directly plugged into the Hanwha Wisenet XNB-6001 Main Unit.

During deployment, the integrated cable can be cut to the desired length and returns data to the main processing unit. This feature allows for a customized and discreet surveillance setup.

In addition to its impressive technical specifications, the Hanwha Vision SLA-T2480 is also fully compliant with the National Defense Authorization Act (NDAA). This makes it eligible for deployment in government installations and strictly regulated infrastructure. Moreover, this is a testament to the high quality and reliability of this professional-grade imager module. It is a top choice for those seeking a discreet and efficient surveillance solution.

Datasheet

Download

Hanwha Vision SLA-T2480, a professional-grade 2MP ultra-wide fixed lens module for discreet monitoring. With 120dB WDR and 0.45 Lux performance, it's perfect for retail, banking, and compact areas. Fully NDAA compliant and designed for use with the Hanwha Wisenet XNB-6001 main unit. Get clear, fluid video with a 138° horizontal, 73° vertical, and 168° diagonal reach. Order now for reliable, high-quality surveillance. Datasheet!

Imaging Device	1/2.8” 2M CMOS
Total Pixel	1,945(H) x 1,109(V) 2.16M
Effective Pixel	1,945(H) x 1,097(V) 2.13M
Scanning System	Progressive Scan
Min Illumination	Color : 0.45Lux (F2.0) B/W: 0.45Lux (F2.0)
S/n Ratio	50dB
Wide Dynamic Range	120dB
Day & Night	Electrical
Lens
Focal Length Zoom Ratio	2.4mm
Max. Aperture Ratio.	F2.0
Angular view of Field	H : 138° / V: 73° / D: 168°
Min Object Distance	0.3m (0.98ft)
Lens Type	Fixed focal
Mount Type	RJ12 connected with the main unit
Environmental
Operation Tempreture/ Humidity	14°F (-10°C) ~ 131°F (55°C) / Less than 90% RH
Storage Tempreture/ Humidity	-58°F (-50°C) ~ +140°F (60°C) /Less than 90% RH
Mechanical
Color/Metal	Lens : Black / Plastic Cable : Black

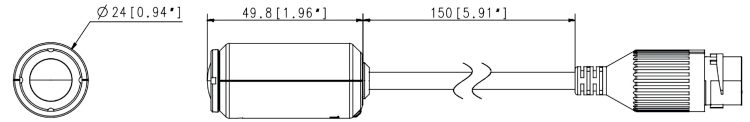

Dimension (W × H x D)	Ø 0.94 inches (2.39 cm) x 1.96 inches (4.98 cm)
Cable Length	Cable : 314.96 inches (8 m)
Weight	0.70 lb (0.32 kg)
