TNO-L3030T
Hanwha TNO-L3030T Thermal Bullet Camera
- Discontinued model; specifications retained for reference
- 320 × 240 thermal imaging, up to 8 fps
- 13.7mm fixed lens; 16° horizontal view
- WiseStream II; microSD storage up to 256GB
- IP66, IK10, NEMA 4X; PoE/12VDC/24VAC
- Description
- Product Documents
- Specification
- Additional information
- Collsam Brands
- Reviews (0)
Description

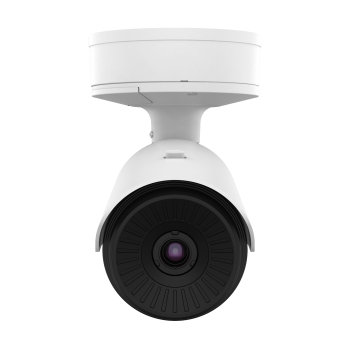

The Hanwha TNO-L3030T thermal camera combines QVGA imaging with a fixed 13.7 mm lens in an outdoor bullet housing. Its uncooled detector produces 320 × 240 video at up to 8 frames per second. The 16° horizontal field provides focused coverage. However, this model is discontinued; this listing keeps its key details for reference.
Thermal imaging shows heat patterns without visible light. In addition, the sensor uses an 8–14 μm spectral range and 12 μm pixels. Whitehot, Blackhot, Rainbow and Iron palettes offer different viewing options. Built-in gyro stabilization also helps reduce image movement.
The TNO-L3030T thermal camera provides motion, tampering, virtual line and virtual area analytics. Furthermore, audio, sound classification, shock and temperature-change detection offer more event options. Events can trigger recording, alerts or alarm outputs. However, temperature-change alerts alone do not make it suitable for medical screening or exact temperature readings.
For recording, H.265, H.264 and MJPEG compression work with WiseStream II to manage bandwidth. A microSD/SDHC/SDXC slot supports cards up to 256 GB. Meanwhile, ONVIF profiles S, G and T help integrate compatible systems. Check recorder support before replacing equipment.

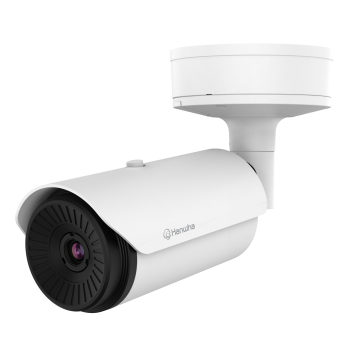

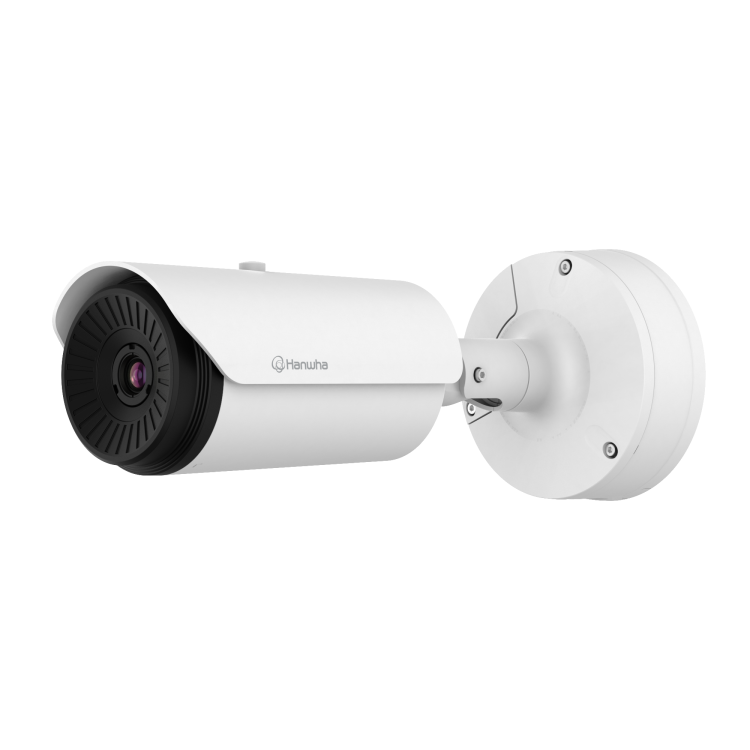

The TNO-L3030T thermal camera has a white aluminum housing rated IP66, IK10 and NEMA 4X. It operates from -40°F to 140°F. Also, installers can choose IEEE 802.3af PoE, 12 VDC or 24 VAC power. The unit measures 5.81 inches in diameter and 14.78 inches long. These measurements also help installers check mounting space before choosing hardware. Product weight is about 5.54 lb; shipping allowances remain separate.
Finally, review the TNO-L3030T thermal camera datasheet, Specification tab and size drawing before setup. Hanwha lists TNO-C3042T as the replacement model. Therefore, confirm lens coverage, mount fit and recording requirements before choosing an alternative. Contact Collsam Security for help comparing options.
| Manufacturer / model | Hanwha Vision TNO-L3030T |
|---|---|
| Product type / lifecycle | QVGA thermal network bullet camera; discontinued |
| Thermal detector | Uncooled microbolometer, 320 × 240; 12 μm pixel size |
| Maximum resolution / frame rate | 320 × 240; up to 8 fps with H.265, H.264 or MJPEG |
| Spectral range / NETD | 8–14 μm; ≤60 mK |
| Installation video output | CVBS 1.0 Vp-p / 75 Ω; Micro USB Type B preview/installation only, Wi-Fi dongle required |
| Lens / aperture | 13.7 mm fixed; F1.0 |
| Field of view | Horizontal 16°; vertical 12°; diagonal 20° |
| Instantaneous field of view | 0.87 mRad |
| Minimum object distance | 8 m (26.25 ft) |
| Image stabilization | Digital stabilization with a built-in gyro |
| Motion / privacy zones | 8 polygonal motion zones; 32 polygonal privacy masks |
| Privacy mask options | Gray, green, red, blue, black, white or mosaic |
| Image orientation | Flip, mirror and hallway view (90°/270°) |
| Thermal palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron and Custom |
| Analytics | Motion, tampering, audio, sound classification, shock, virtual area (loitering, intrusion, entry/exit, appear/disappear), virtual line (crossing/direction), temperature change |
| Alarm inputs / outputs | 1 input; 2 outputs |
| Alarm triggers | Analytics, network disconnection or alarm input |
| Event actions | Image upload by email/FTP, email notification, SD or NAS recording, alarm output, and PTZ preset handover |
| Audio connections | Selectable microphone/line input; line output |
| Ethernet | RJ-45, 10/100BASE-T |
| Video compression / smart codec | H.265/H.264 Main/Baseline/High and MJPEG; WiseStream II |
| Audio compression | G.711 μ-law, G.726 and AAC-LC |
| Bit-rate control | H.265/H.264: CBR or VBR; MJPEG: VBR |
| Streaming | Up to 20 Unicast users; multicast; up to 10 profiles |
| Network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP and PIM-SM |
| System integration | ONVIF S, G and T; SUNAPI HTTP API; Hanwha Vision Open Platform |
| Security | Encrypted firmware and credentials; digest authentication; IEEE 802.1X EAP-TLS/EAP-LEAP; HTTPS/WSS/SRTP; IP access control; access, system and event logs; device certificate |
| Memory | 1 GB RAM; 256 MB flash |
| Local recording | One microSD/SDHC/SDXC slot, maximum 256 GB |
| Operating conditions | -40°C to +60°C (-40°F to +140°F); 0–90% RH, non-condensing |
| Storage conditions | -50°C to +60°C (-58°F to +140°F); 0–90% RH, non-condensing |
| Power inputs | IEEE 802.3af PoE Class 3, 12 VDC or 24 VAC |
| PoE consumption | 8.7 W maximum; 7.5 W typical |
| 12 VDC consumption | 7.8 W maximum; 6.7 W typical |
| 24 VAC consumption | 9.2 W maximum; 8.0 W typical |
| Housing | White aluminum, RAL 9003 |

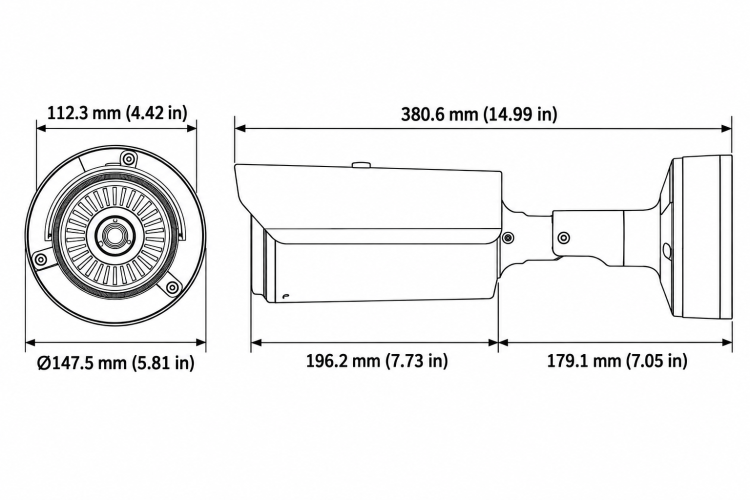

| Product dimensions (datasheet) | Ø 5.81 inches (ca. 15 cm) × 14.78 inches (ca. 38 cm) |
| Overall CAD length including hood | 14.99 inches (ca. 38 cm) |
| Product weight | 2,512 g (5.538 lb) |
| Environmental ratings | IP66 (IEC 60529); IK10 (IEC 62262); NEMA 250 Type 4X |
| Manufacturer-listed compliance marks | CE, EAC, FCC, UL Listed, NDAA and TAA |
