TNM-C4940TD

0 out of 5

( There are no reviews yet. )

Original price was: $11,647.99.Current price is: $6,987.95.Ea.

Hanwha TNM-C4940TD Bi-Spectrum Thermal Camera

VGA thermal imaging and 4K visible video
9.1mm thermal lens; 4.4–9.3mm motorized visible lens
AI people/vehicle detection; 30m IR
Dual microSD storage, up to 512GB
IP66/IP67, IK10; PoE+ or 12VDC

CE, EAC, FCC, NDAA, TAA and UL Listed compliance marks

SKU: TNM-C4940TD EAN: 8801089217608 Categories: Dome Thermal Cameras, Thermal Cameras Tags: 4K camera, AI video analytics, bi-spectrum camera, Hanwha Vision, NDAA Compliant;, Network Camera, PoE camera, Thermal Camera, TNM-C4940TD

Description

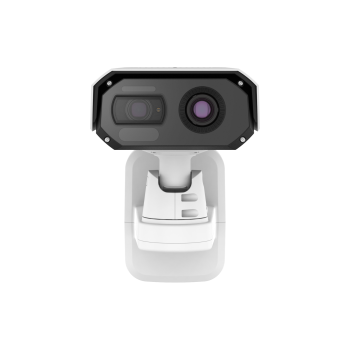

The Hanwha TNM-C4940TD thermal camera combines VGA thermal imaging and 4K visible video in one network device. Its two channels share one IP address, helping installers manage both views. For example, use the thermal channel to detect heat signatures and the visible channel to capture scene detail.

A 640 × 480 thermal sensor works with a fixed 9.1 mm lens. Meanwhile, the visible channel uses an 8 MP sensor and a 4.4–9.3 mm motorized varifocal lens. Also, built-in infrared illumination reaches up to 30 m. In addition, 120 dB wide dynamic range helps reveal detail in bright and shaded areas.

The TNM-C4940TD thermal camera uses AI analytics to detect people and vehicles on the thermal channel. The visible channel also detects faces and license plates. Furthermore, virtual line, stopped-vehicle and traffic-jam events help operators review important activity. Moreover, WiseNR II reduces visible-image noise, while WiseStream compression helps manage bandwidth.

For flexible viewing and recording, the camera supports H.265, H.264 and MJPEG video, plus up to three streaming profiles. In addition, two microSD card slots support up to 256 GB each, for 512 GB total. HTTPS, secure boot and a TPM 2.0 security module help protect the device and its connections.

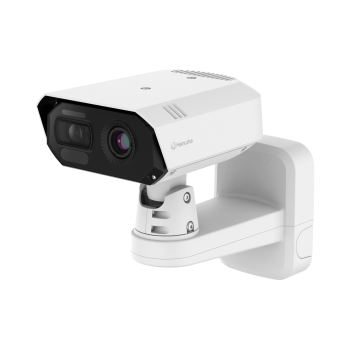

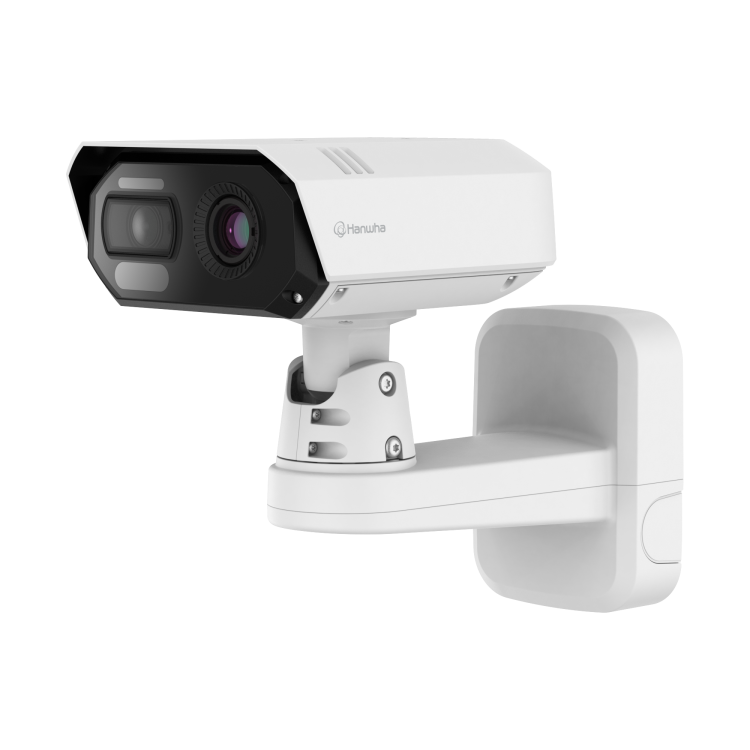

For outdoor use, the TNM-C4940TD thermal camera has an aluminum housing with IP66, IP67 and IK10 ratings. It operates from -40°C to 60°C (-40°F to 140°F). Also, installers can power the unit through PoE+ or 12 VDC. The integrated wall-and-pole mounting design also simplifies installation planning.

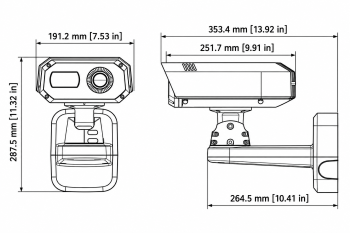

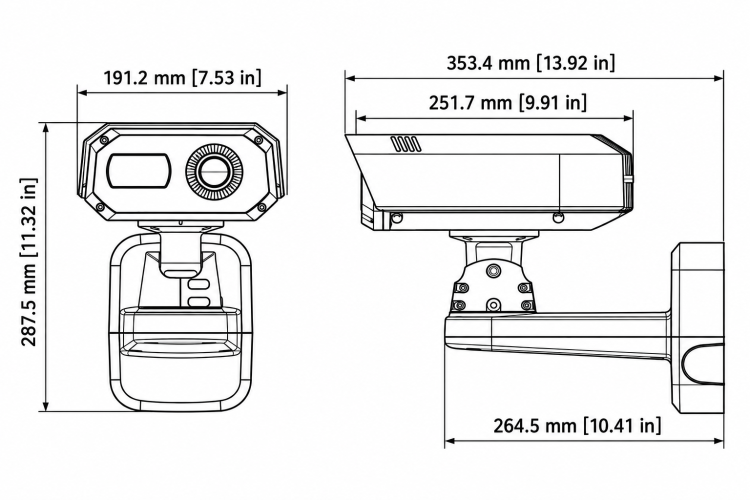

The TNM-C4940TD thermal camera measures 353.4 × 287.5 × 191.2 mm and weighs 4.53 kg. Finally, review the Specification tab and official datasheet for installation details. Browse more thermal cameras, or download the official Hanwha datasheet (PDF).

Hanwha TNM-C4940TD Datasheet

Download

Official Hanwha Vision datasheet with technical specifications, dimensions, electrical requirements, and mounting information.

Video	Thermal	Visible
Imaging Device	Uncooled micro bolometer	1/1.8″ CMOS
Resolution	640×480 (can be scaled up to 1280×960) 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360	3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate	H.265/H.264: Max. 30fps/25fps (AI 2CH ON – 15fps) MJPEG: Max. 3fps	H.265/H.264: Max. 30fps/25fps (AI 2CH ON – 15fps) MJPEG: Max. 1fps
NETD	＜60mK
Pixel Size	12㎛
Min. Illumination		Color: 0.06Lux(F1.3, 1/30sec) BW: 0.004Lux(F1.3, 1/30sec), 0Lux(IR LED on)
Video Out	USB : Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio)	9.1mm fixed focal	4.4~9.3mm(2.2x) motorized varifocal
Max. Aperture Ratio	F1.0	F1.3(Wide)~F2.15(Tele)
Angular Field of View	H: 50.0°, V: 37.0°, D: 63.8°	H:112.1°(Wide)~47.5°(Tele) / V:58.0°(Wide)~26.6°(Tele) / D:137.5°(Wide)~54.6°(Tele)
Min. Object Distance	3.5m(11.48ft)	Wide: 1.75m(5.74ft) / Tele: 5.21m(17.09ft)
Focus Control	Fixed	Simple foucs
Operational
Camera Title	Displayed up to 85 characters
Day & Night		Auto(ICR)
Backlight Compensation		BLC, WDR, SSDR
Wide Dynamic Range		WDR(120dB)
Digital Noise Reduction		SSNR V, WiseNR II
Digital Image Stabilization		Support(built-in gyro sensor)
Motion Detection	8ea, polygonal zones
Privacy Masking	6ea, rectangle zones – Color: Gray/Black/White
Gain Control		Low / Middle / High
White Balance		ATW / AWC / Manual / Indoor / Outdoor
LDC		Support
Electronic Shutter Speed		Minimum / Maximum / Anti flicker(1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine)
Analytics	– Analytics events based on AI engine : Object detection (Person/Vehicle), Bestshot, IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam – Analytics events : Motion detection	Analytics events based on AI engine – Object detection(Person, face, Vehicle(car/bus/truck/motorcycle/bicycle), License plate), Bestshot, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam – Analytics events : Defocus detection, Motiondetection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)

General
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage	Micro SD/SDHC/SDXC 2slots 512GB
Memory	4GB RAM, 512MB FLASH

Audio Out	Line out, Max.output level: 1Vrms
IR Viewable Length		30m (98.42ft)
Color Palettes	Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Network
Ethernet	Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/High, MJPEG
Audio Compression	G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec	WiseStreamⅡ	Manual(5ea area), WiseStreamⅢ
Video Quality Adjustment	H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)

Security

TPM 2.0 (FIPS 140-2 level 2)

HTTPS(SSL) login authentication

Digest login authentication

IP address filtering

User access log

802.1X authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)

Device certificate(Hanwha Techwin Root CA, pre-installed) Secure boot, Secure firmware

Environmental & Electrical
Operating Temperature / Humidity	-40°C to +60°C(-58°F to +140°F) * Start up should be done at above -30°C less than 95% RH(non-condensing)
Storage Temperature / Humidity	-50°C to +60°C(-58°F to +140°F) / Less than 95% RH(Non-condensing)
Certification	IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage	PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption	PoE+ : Max 25.5W, Typ 16.0W 12VDC : Max 21.5W, Typ 14.0W
Mechanical
Color / Material	White / Aluminum
RAL Code	RAL9003
Product Dimensions / Weight	353.4 * 287.5 * 191.2mm (13.92 * 11.32 * 7.53in) / 4.533kg
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)	Wide: 51.7m(169.94ft) / Tele: 174.5m(572.64ft)
Observe (63PPM/ 19PPF)	Wide: 20.7m(67.85ft) / Tele: 69.8m(229.06ft)
Recognize (125PPM/ 38PPF)	Wide: 10.3m(33.93ft) / Tele: 34.9m(114.53ft)
Identify (250PPM/ 76PPF)	Wide: 5.2m(16.96ft) / Tele: 17.5m(57.26ft)
