DWC-D4283WD
Original price was: $368.99.$210.95Current price is: $210.95.each

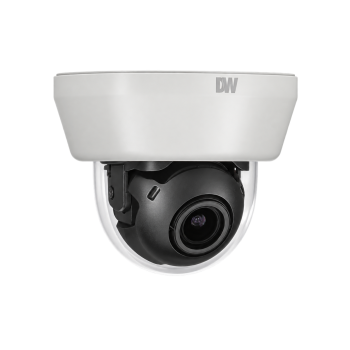

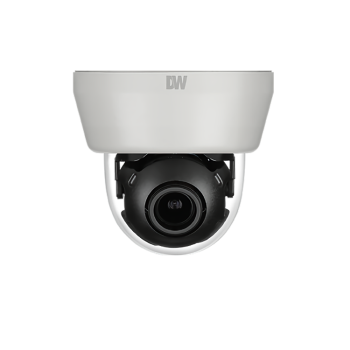

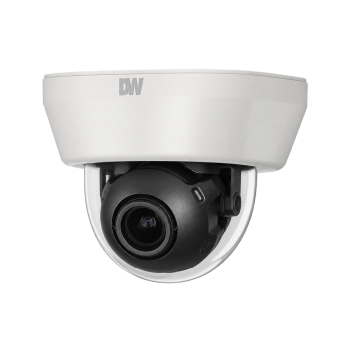

Digital Watchdog DWC-D4283WD Camera Highlights
- 2.1MP/1080p indoor HD-TVI dome camera
- Real-time video at 30 fps
- 2.8–12 mm motorized vari-focal P-Iris lens
- Star-Light™ low-light imaging
- True 100 dB wide dynamic range
- Built-in microphone and alarm output
- HD-TVI, HD-CVI, HD-Analog, and CVBS output
- 12 VDC or 24 VAC dual-voltage power
- NDAA compliant with a five-year warranty
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Digital Watchdog 2.1MP HD-TVI camera provides clear indoor video over existing coax. This Star-Light indoor dome camera records 1920 × 1080 video at 30 frames per second. Its motorized dome camera lens helps installers frame wide or narrow areas. As a 1080p HD-TVI security camera, it also supports HD-CVI, HD-Analog, and CVBS video. Additionally, the DWC-D4283WD HD-TVI dome camera is known for its reliability in demanding environments.
The Digital Watchdog 2.1MP HD-TVI camera uses true 100 dB WDR to balance bright and dark areas. Meanwhile, Smart DNR reduces video noise. De-Fog also preserves detail when visibility is poor. The camera provides motion detection, backlight control, white balance, mirror, flip, and sixteen privacy zones. The DWC-D4283WD HD-TVI dome camera offers extensive feature support for a variety of applications.
The Star-Light indoor dome camera delivers useful color in dim scenes. In addition, its motorized dome camera lens has a 2.8–12 mm range and a 91° to 28° view. Installers can frame a room, door, counter, or corridor. UTC control also allows remote changes through supported coax equipment. In summary, the DWC-D4283WD HD-TVI dome camera streamlines installation and flexible use.
The 1080p HD-TVI security camera includes a built-in microphone for recorded audio. Moreover, one alarm output supports connected security devices. The progressive-scan sensor provides smooth live views and detailed playback. Therefore, operators can review daily activity more easily, especially with the DWC-D4283WD HD-TVI dome camera integration.
The Snapit housing makes indoor mounting and service easier. Dual-voltage 12 VDC or 24 VAC power gives installers more wiring options. Its compact ivory housing also blends into many business interiors. Furthermore, the DWC-D4283WD is NDAA compliant and UL listed.
Digital Watchdog supports the camera with a five-year warranty. Overall, this dome camera combines flexible views, clear low-light video, and broad coax support. It is a practical choice for upgrading an analog system to 1080p HD.
IMAGE | |
| Image sensor | 2.1MP/1080p 1/3″ CMOS |
| Active pixels | 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support |
| Synchronization | Internal |
| Resolution | 1920 x 1080 (1080p) |
| Minimum scene illumination | 0.3 lux (color) |
| S/N ratio | 55dB |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H |
I/O | |
| Alarm output | 1 alarm output |
| Audio input/output | 1 built-in microphone |
| Audio sensitivity | -38dB ± 2dB |
| Audio frequency response | 50Hz ~ 10KHz |
LENS | |
| Focal length | 2.8 ~ 12mm |
| Lens type | Motorized zoom auto-focus p-iris lens |
| Field of view (FoV) | 91 – 28° |
OPERATIONAL | |
| Shutter mode | Auto, manual, FLC |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 100dB |
| Dynamic range compressor (DRC) | Off, low, middle, high |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto / auto-ex / preset / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | 0~10 |
| Motion detection | Yes |
| Privacy zones | 16 programmable privacy zones |
| Sharpness | 0 ~ 10 |
| Gamma | 0.45 ~ 0.75 |
| De-fog | On, off |
| RS485 / UTP built-in | Pelco D / Pelco C |
ENVIRONMENTAL | |
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/AC24V dual voltage |
| Power consumption | DC12V: 3.0W |
| AC24V: 2.3W | |
MECHANICAL | |
| Material | Snapit™ plastic housing, polycarbonate dome |

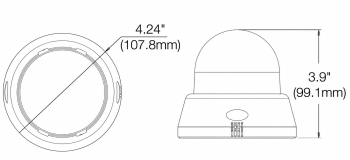

| Dimensions | 4.24″ x 3.9″ (107.8 x 99.1 mm) |
| Weight | 0.529 lbs (0.24kg) |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 5 in |
