AIB-C2032FV
Original price was: $138.99.$58.95Current price is: $58.95.

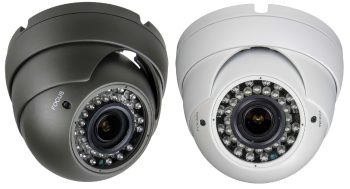

Telpix AIB-C2032FV A-HD 1080p 2Megapixel IR Eyeball Camera with 30 IR LED
- 1080p Real-Time Image
- Varifocal lens size 2.8 mm, 3.6 mm, 6 mm, 8mm, or 12-mm for multiple fields of view
- High Resolution
- True Color AHD Lossless Video Output
- Up To 1000 TVL Resolution
- CMOS Progressive Scan
- Perfectly Capture the Moving Object Support OSD Menu
- Support Motion Alarm
- High Speed
- Long Distance
- Real-Time Transmission Auto Color to Black And White low Illumination
- Support ICR Switch
- True Day
- Night Support Noise Reduction Function
- 20 ~ 30m IR Night View Distance
- IP66 Ingress Protection
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Telpix AIB-C2032FV is a reliable and versatile AHD (Analog High Definition) IR Eyeball camera. This camera offers superb 1080P (2MP) high-definition video quality, making it an ideal choice for capturing clear and detailed footage.
The AIB-C2032FV has a Varifocal lens that lets you capture different angles and perspectives. Users can choose between five different lens sizes: 2.8 mm, 3.6 mm, 6 mm, 8 mm, or 12-mm.
The Telpix AIB-C2032FV has 30 infrared LEDs, which makes it great for night vision. This camera is designed to take clear and crisp pictures even in low-light or dark conditions. Its night vision range is typically specified, providing users with an understanding of the camera’s capabilities in different lighting situations.
The AIB-C2032FV also supports motion alarm, making it a highly efficient surveillance tool. With this feature, the camera can send out an alert if it sees anything moving within its field of view. This allows for proactive monitoring and response. This is especially useful in preventing theft or vandalism and ensuring the safety of the premises.
The Telpix AIB-C2032FV is designed for outdoor use and is designed to withstand harsh weather conditions. It comes with an IP66 rating, indicating its durability and protection against dust and water ingress. The camera is compatible with outdoor settings, such as parking lots, construction sites, and other public spaces.
The Telpix AIB-C2032FV uses AHD technology to transmit high-definition video over a standard coaxial cable. This makes it a cost-effective option as it eliminates the need for expensive cabling and allows for easy installation.
The Telpix AIB-C2032FV is a reliable and efficient camera that offers high-quality video, night vision, and motion detection.
| Camera | |
| Image Sensor | 1 / 3”CMOS |
| Resolution | 1920 × 1080 |
| Image System | PAL / NTSC |
| Min. Illumination | 0 Lux (LED ON) |
| Lens | 6 mm (3.6 mm, 8 mm, 2.8 ~ 12 mm optional) |
| IR Distance | 20 ~ 30 m |
| Waterproof | IP66 |
| Video Output | BNC × 1 |
| Image Size | 1080P (1920 × 1080) |
| Frame Rate | 30 fps (60 Hz), 25 fps (50 Hz) |
| Functions | |
| Screen Display | 12 languages supported |
| Function Control | OSD |
| Day & Night | Yes (ICR) |
| BLC & HLC | Yes |
| Defog | Yes |
| WDR | Yes |
| 3D NR | Yes |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 8 areas |
| Defect Correction | Yes (support live and static defective pixel correction) |
| S / N Ratio | > 52 dB ( AGC off ) |
| Electronic Shutter | 1 / 50s ~ 1 / 50000s (PAL ); 1 / 60s ~ 1 / 50000s (NTSC) |
| AGC | Yes |
| White Balance | ATW, AWC→SET, Indoor, Outdoor, Manual |
| Advanced Image | Sharpness, saturation, brightness, etc. are adjustable |
| Mirror | Yes |
| Smart IR | Yes |
| Others | |
| Power Supply | DC 12V (± 10%) |
| Working Environment | -4 °F (-20 °C) ~ 122 °F (50 °C), 10% ~ 90% humidity |
| Dimensions (mm) | Ф 4.2913 inch (10.9 cm) × 5.1181 inch (13 cm) |
| Weight ( net) | 1.46lb (0.66 kg) |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
| Color | Black, White |
Brand
Telpix
Telpix Video Surveillance Equipment
Telpix develops security cameras, digital video recorders, network video recorders, lenses, mounts, connectors, and supporting CCTV equipment. Available products can be used for residential security, retail monitoring, office surveillance, warehouses, parking areas, and other compatible video security applications.The correct equipment depends on the existing camera technology, required resolution, number of channels, recording capacity, installation environment, and remote access requirements.Security Cameras
Available camera styles may include bullet, dome, turret, eyeball, box, indoor, and weather-resistant outdoor models. Depending on the model, cameras may provide infrared night vision, fixed or varifocal lenses, day-and-night operation, motion detection, image adjustment, and HD video output.Before selecting a camera, confirm:- Video technology and recorder compatibility
- Supported resolution
- Indoor or outdoor installation
- Fixed or varifocal lens
- Required viewing angle
- Infrared illumination distance
- Power requirements
- Mounting location
- Weather-resistance rating
- Cable and connector type
DVR and Hybrid Recording Systems
Telpix recording systems provide centralized live viewing, recording, playback, search, backup, and system management. Available recorders may support four, eight, sixteen, or more camera channels.Compatible hybrid models can work with several video formats, depending on the recorder. These may include standard analog, AHD, TVI, CVI, and selected IP-camera inputs. Features vary by model and may include HDMI and VGA outputs, USB backup, motion recording, remote access, PTZ control, mobile viewing, and internal SATA hard-drive storage.Always verify the recorder’s supported camera formats, resolution, channel capacity, hard-drive limits, compression type, mobile application, and network requirements.IP Cameras and NVR Equipment
Selected Telpix IP cameras and network video recorders support video transmission through compatible Ethernet networks. Available equipment may provide PoE connectivity, megapixel resolution, remote configuration, network recording, and mobile access.Network compatibility, bandwidth, PoE requirements, supported protocols, firmware, and recorder compatibility should be confirmed before installation.CCTV Lenses and Mounting Hardware
Telpix lenses may support fixed or adjustable fields of view for compatible box cameras and other surveillance equipment. Camera mounts, brackets, housings, and ceiling-mounting hardware help position compatible cameras for the required viewing area.Choose lenses and mounting hardware based on the camera body, sensor size, mounting surface, viewing distance, environmental conditions, and required field of view.Connection and Power Accessories
Available installation hardware may include:- BNC connectors
- Compression connectors
- DC power plugs
- Power pigtails
- Terminal-block connectors
- Camera power supplies
- Video cables
- Ethernet connectors
- Camera mounts
- Protective housings
- Cable-termination tools
Selecting Telpix Equipment
Consider the following factors:- Existing camera and recorder technology
- Required image resolution
- Number of camera channels
- Indoor or outdoor use
- Night-vision requirements
- Recording duration
- Hard-drive capacity
- Local and remote viewing
- Mobile-device compatibility
- Cable distance and connection type
- Power-supply requirements
- Replacement-part compatibility
