CB-AU-1U1604H2B5

CONSTRUCTION

This CB-AU-1U1604H2B5 cable consists of four bare copper insulated conductors and an overall core wrap. The overall assembly has an overall extruded jacket.

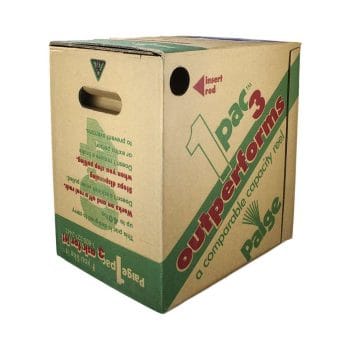

This is a 16 AWG 4 conductor audio (speaker) cable. The conductors are made from oxygen free copper. The number of strands is 65. The Jacket is made from PVC and the cable is equipped with a rip cord. This cable is rated to be CMR/CL3 and can be used for riser or in-wall installations. This product is comes in a pull box.

APPROVALS

ETL, cETL, UL Standard 13 and UL 444, And NEC Articles 800 CM

APPLICATION

• CB-AU-1U1604H2B5 Audio Cable

CB-AU-1U1604H2B5 CONSTRUCTION PARAMETERS

• Conductor: 16 AWG brew copper
• Stranding: 65/34
• Insulation Material: FR-PVC
• Nom. Insulation Thickness: 0.012 inch (0.3 mm)
• Insulated Conductor Diameter: 0.080 inch (2.03 mm)
• Number of Conductors: 4
• Nom. Lay Length: 5.1 inch (12.95 cm).
• Jacket Material: Extra Flexible FR-PVC
• Core Wrap: Nonwoven
• Jacket Thickness: 0.028 inch (0.71 mm)
• Nom. Overall Cable Diameter: 0.249 inch (6.32 mm).
• Approximate Cable Weight (lbs./Kft.) 50
• Flame Rating: UL 1581 vertical tray flame test

ELECTRICAL PROPERTIES

• Nom. DC Resistance per Conductor @ 20 °C: 4.02 Ohm/Kft. nom.
• Capacitance Between Conductors @ 1KHz: 30 pF/ft. nom.
• Operating Voltage: 300V RMS max.
• Temperature Rating: −20 °C to 60 °C

OTHERS

• Insulation Colors: Black, Red, White, and Green
• Jacket Color: White
• Legend (Surface Ink Print): PAIGE USA 1U1604H2B5 16/4 (65/34) OFC – HI-FLEX AUDIO CM ETL (C) ETL 4000379 75C ROHS COMPLIANT DC 0317 ZONE 0 1 2 3 4 5 6 7 8 9
