CB-C6-CD-BK

0 out of 5

( There are no reviews yet. )

Original price was: $337.99.Current price is: $188.95.

Eyemax CB-C6-CD-BK CAT6 UTP Direct Burial 1000 feet (304.8 m) Dry-type, Double Jacket

ETL Listed (UL 444 Standard)
CAT6
1000 feet (304.8 m)
99% Bare Copper
Direct Burial
23AWG / 4 Pair
Double Jacket Black

SKU: CB-C6-CD-BK Categories: Cables and Accessories, Ethernet Cables Tags: Bare Copper, Bulk Ethernet Cable, CAT6, CAT6 UTP Cable, Direct Burial, Ethernet (PoE) cables, Ethernet 99% Copper, ETL Listed, Gigabit Ethernet Cable, UL Listed Ethernet Cable

Description

The Eyemax CB-C6-CD-BK Category 6 (Cat6) Unshielded Twisted Pair (UTP) Direct Burial Ethernet Cable is a top-of-the-line networking cable designed for outdoor use in both commercial and residential settings. This cable is the perfect solution for those looking to establish a reliable and high-speed network connection over long distances, up to 1000 feet (304.8 m) in length. Whether you need to connect multiple devices in your backyard or set up a network for an entire office building, this Ethernet cable has got you covered.

One of the standout features of this cable is its black outer jacket color, which not only gives it a sleek and professional look but also makes it highly durable and weather-resistant. The sturdy construction of the jacket allows the cable to be directly buried underground without the need for any additional protection, making it ideal for outdoor installations. This not only saves time and effort but also ensures a long-lasting and reliable network connection, even in harsh weather conditions.

The Eyemax CB-C6-CD-BK Ethernet cable is made with 23 AWG (American Wire Gauge) 99% pure bare copper, which is known for its excellent conductivity and low resistance. This, along with the 4-pair unshielded twisted pair (UTP) design, ensures a stable and high-speed connection with minimal interference or crosstalk. The cable is also ETL listed, conforming to safety standards such as UL 444 Standard, ensuring that it meets the highest quality and safety requirements for use in both residential and commercial settings.

This Ethernet cable is perfect for a wide range of networking applications, including internet connections, VoIP (Voice over Internet Protocol) phone systems, security cameras, and more. With a bandwidth capacity of up to 250 MHz, it can easily handle high-speed data transmissions, making it suitable for even the most demanding network setups. The cable is typically provided in a bulk spool or box, allowing for easy installation and customization based on your specific networking needs.

In conclusion, the Eyemax CB-C6-CD-BK Category 6 (Cat6) Unshielded Twisted Pair (UTP) Direct Burial Ethernet Cable is a top-quality cable that offers excellent performance, durability, and versatility. With its black outer jacket, pure copper construction, and ETL listing, this cable is a reliable and safe choice for all your outdoor networking needs. So, whether you’re setting up a network in your backyard or connecting multiple devices in a commercial setting, this Ethernet cable will ensure a fast, stable, and secure connection every time.

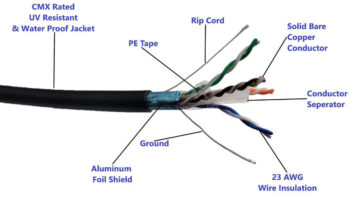

PHYSICAL SPECIFICATIONS
Cable Construction	23 AWG UTP, 4P (0.57 mm ± 0.01mm)
Conductor Material	Bare Copper
Insulation Material	HDPE
Insulation Thickness	Min 0.15mm
Insulation Diameter	1.03 mm ± 0.03mm
Filler	Yes
Number of Insulation	4 Pair
Pair Colors
P1	Blue/White-Blue
P2	Green/White-Green
P3	Orange/White-Orange
P4	Brown/White-Brown
Jacket-1
Material	PVC
Thickness	Min 0.4mm
Diameter	6.0 mm ± 0.2mm
Jacket-2
Material	PE
Thickness	Min 0.60mm
Diameter	7.05 mm ± 0.25mm
Marking	TBD
Rip Cord	Nylon
ELECTRICAL CHARACTERISTICS
Temperature Range	-4°F (-20°C) to 197°F (75°C)
Voltage Rating	≤300V
DC Resistance	≤7.22 Ω/100m
DC Resistance Unbalance	<5%
Delay Skew of a Pair	45nS/100m
Pair-to-Ground Capacitance Unbalance	≤330pF/100m
Insulation Resistance	≥5000 MΩ·km
Spark Test	2.5 KV DC
Dielectric Strength	1.5 KV AC for 2s
Cold Bend	-4°F (-20°C) for 4 hr
Min. Bending Radius.	≥4 times of O.D.
Max. Pulling Tension.	≤110N
APPLICABLE STANDARD
Standards	ANSI/TIA-568.2-D ISO/IEC 11801-1 IEC 61156-5 UL 444 CSA 22.2 No.214
COMPLIANCE & CERTIFICATIONS
Certifications	c(ETL)us Listed RoHS Compliant CE

Additional information

Weight	35 lbs
Dimensions	15 × 15 × 15 in
