CB-C6E-710648DB
Original price was: $364.99.$264.95Current price is: $264.95.
Paige CB-C6E-710648DB Outdoor Cat6 Shielded Cable — 1,000 ft (ca. 305 m)
- 23 AWG, four-pair Cat6 cable
- 1,000-foot wooden reel
- Shielded F/UTP construction
- Black outdoor-rated jacket
- UV-resistant and water-resistant
- CMX rated
- Supports network and IP-device installations
- Suitable for indoor and outdoor applications
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Paige® CB-C6E-710648DB is the ultimate choice for a reliable and high-performing outdoor CAT6 cable. This premium cable is designed to meet all your networking needs, whether it’s for indoor or outdoor use. With its UV rating, this cable can withstand harsh outdoor conditions, making it the perfect choice for setting up a local area network system in your home or office.
What sets the Paige® CB-C6E-710648DB apart from other CAT6 cables is its 99% solid copper construction. This ensures superior performance and a stable internet connection, with minimal signal loss or interference. By using solid copper, this cable can support higher bandwidth and faster transfer speeds, making it ideal for heavy internet usage and demanding applications.
In addition to its solid copper construction, the Paige® CB-C6E-710648DB also features a 4-pair, 23 AWG design. This means that the cable has four twisted pairs of wires, each with a 23-gauge thickness, tightly twisted together to minimize crosstalk and interference. This results in a cleaner and more reliable signal, allowing for faster data transmission and better overall performance.

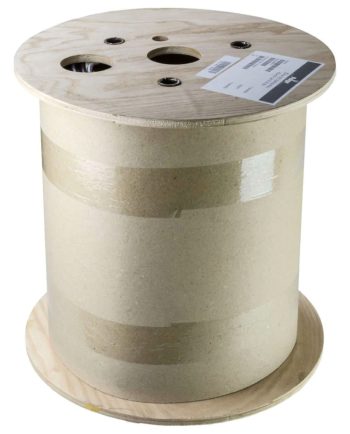

The 1000 ft (304.8 m) wooden spool packaging of the Paige® CB-C6E-710648DB not only makes it convenient to store and transport, but it also ensures the cable remains untangled and undamaged. This makes installation a breeze, as you can easily pull the required length of cable without worrying about knots or tangles.
At Collsam Distribution, we take pride in offering only the highest quality networking products, and that includes the Paige® CB-C6E-710648DB. With our premium bulk CAT6 cable, you can rest assured that your network will have the best possible connectivity, both indoors and outdoors. Don’t settle for subpar network cables, choose the CB-C6E-710648DB for a fast, reliable, and efficient network system.
CONSTRUCTION
- Flame Rating: CMX
- Jacket: PE
- Color: Black
- Water Blocking Tape
- OD: 0.283 inch (7.19 mm)
- Packaging: 1000 ft (304.8 m) Wooden Spool
APPLICATIONS
- 10 BaseT, 100 BaseT, ATM 155
- 100 VG-AnyLAN, Token Ring
- TP-PMD, 100 MB’s CDDI
INDUSTRY STANDARDS
- UL444
- UL, ETL and 3P Verified to Standards
- ISO/IEC-11801
- TIA-EIA 568-B.2-1
- RoHS
MATERIAL DESCRIPTIONS
- Conductor: 23 AWG solid bare copper
- Insulation: HDPE
- Ripcord under jacket
- Jacket: CMX, UV Rated
ELECTRICAL CHARACTERISTICS
- Impedance: 1 ~ 400MHz 100±15ohms
- Cold Bend Test: −20°C × 48 Hrs. No crack.
- Structural Return Loss: 400MHz 10 dB Min.
- DC Resistance Unbalance of a pair: 5% max
- Delay Skew: 400MHz 25 ns/100 m Max.
- Capacitance Unbalance (Pair to Ground): 3300pf/Km Max
- Propagation Delay: 400MHz 536nS/100m Max
- Attenuation-to-Crosstalk Ratio: At 250MHz: 7.5dB/min.
| Frequency (MHz) | 1 | 31.25 | 62.5 | 100 | 155 | 200 | 250 | 300 | 400 | 550 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ATT Max | 2 | 10.7 | 15.4 | 19.8 | 25.1 | 29 | 32.8 | 36.4 | 43 | 51.8 | 54.5 |
| NEXT Min | 76.3 | 53.9 | 49.4 | 46.3 | 43.5 | 41.8 | 41.3 | 39.2 | 37.3 | 37.2 | 36.6 |
| ACR Min | 72.3 | 41.2 | 32 | 24.5 | 16.4 | 10.8 | 5.5 | 0.8 | — | — | — |
| PS. Next min. | 72.3 | 49.9 | 45.1 | 42.3 | 39.5 | 37.8 | 36.3 | 35.2 | 33.3 | 31.2 | 30.6 |
| PS. ACR Min. | 70.3 | 39.2 | 30 | 22.5 | 14.4 | 8.8 | 3.5 | 0 | — | — | — |
| ELFEXT Min | 70.3 | 39.2 | 30 | 22.5 | 14.4 | 8.8 | 3.5 | 0 | — | — | — |
| PS. ELFEXT Min. | 64.8 | 34.9 | 28.8 | 24.8 | 20.9 | 18.7 | 16.8 | 15.2 | 12.7 | 9.9 | 9.2 |
| RL Min | 20 | 23.6 | 21.5 | 20.1 | 18.8 | 18 | 17.3 | 16.8 | 15.9 | 14.9 | 14.7 |
Additional information
| Weight | 35 lbs |
|---|---|
| Dimensions | 18 × 18 × 16 in |
Brand
Paige
