XA-HDMI-SDI01

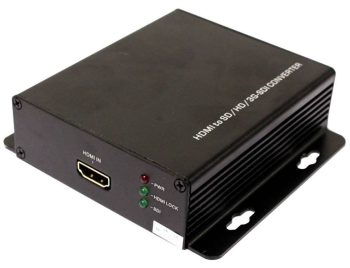

Collsam XA-HDMI-SDI01 HDMI to SDI Converter, 3G/HD-SDI Auto Format Detection Extender for CCTV Cameras
- Support series connection function in transmitter and receiver and easy to build a network system by installer
- Switch easily between two HDMI sources by remote control
- HDMI signal converts SDI signal to achieve long-distance transmission.
- Transmission distance can be up to 400 ft (121.92 m) max for 1080p using RG-6U cable.
- Maintains the highest HDMI single-link video resolution 1080p@30Hz/60Hz
- Support digital video formats in Deep Color Mode at up to 12 bits/color
- Support full HDMI audio and video
- Normal mode and Turbo mode switch

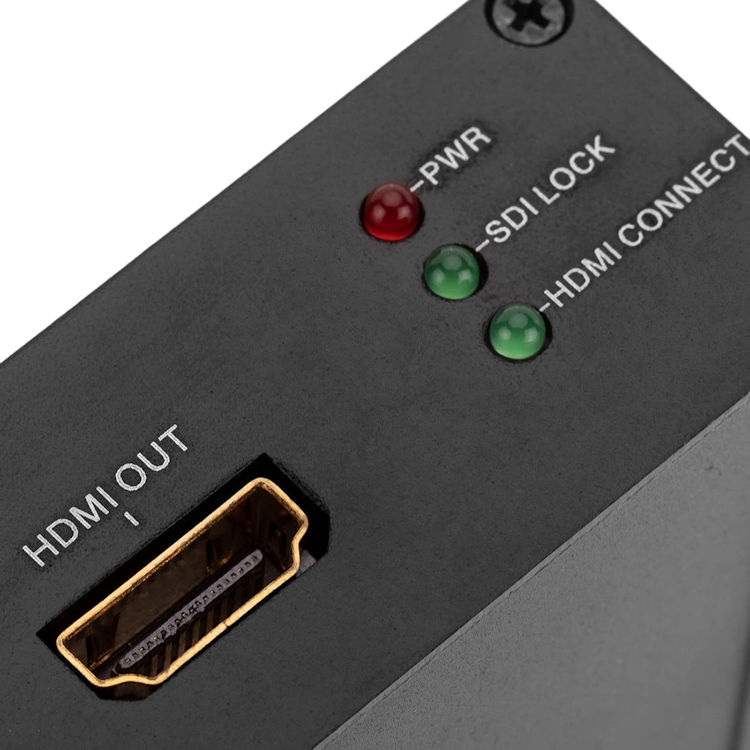

- Power supply and SDI signal format indicator
- Description
- Product Resources
- Additional Information
- Spicifications
- Collsam Brands
Description
The Collsam XA-HDMI-SDI01 is a high-quality HDMI to HD-SDI/SDI converter that is perfect for various professional settings. The device changes one channel of an HDMI signal to an SDI signal. This makes connecting HDMI devices to SDI systems simple and safe. With its advanced technology and robust construction, the Collsam XA-HDMI-SDI01 is a must-have tool for any audiovisual professional.
One of the key features of the Collsam XA-HDMI-SDI01 is its ability to split and change the HDMI audio signal before adding it to the HD-SDI signal. This means that you can send both sound and video simultaneously, without any loss of quality or delay. Keeping the audio and video in sync is critical during live broadcasts, so this is very helpful.
The collsam XA-HDMI-SDI01 will perfectly align your audio and video, giving your production a smoother, more polished look.

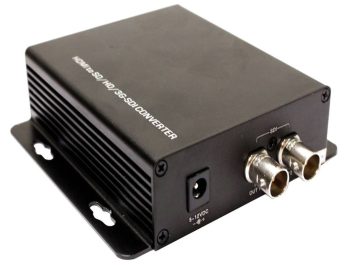

In addition to its advanced audio capabilities, the Collsam XA-HDMI-SDI01 also boasts dual HD-SDI outputs and an HDMI input. This allows for longer cable runs and more effective workflow, making it ideal for use in larger or more complex setups.
If any of the equipment fails, the two outputs will always make sure that your signal is safe. This level of reliability and versatility is essential in professional settings, where every detail counts.
Additionally, the XA-HDMI-SDI01 has a sturdy aluminum frame to guarantee its durability. This robust design not only makes it more resistant to wear and tear, but it also helps to dissipate heat, ensuring that the device operates at an optimal temperature. Additionally, the converter only needs 12 volts to operate, making it energy-efficient and environmentally friendly.
For added convenience and versatility, the XA-HDMI-SDI01 comes with a mounting bracket that securely attaches to 15 mm rod-based systems or accessory mounts. This allows you to easily integrate the converter into your existing setup, providing a seamless and clutter-free production environment.
Whether you are using it for professional broadcasting, live events, or CCTV cameras, the Collsam XA-HDMI-SDI01 is the perfect tool to improve your workflow and streamline your audiovisual setup.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 5 × 1 in |
| Input Interface | 2x HDMI |
| Frequency Bandwidth | 225MHz/ up to standard with HDCP:HDMI 1.3 |
| Support Input Format | 480i, 576i, 720p@50/60, 1080i@50/60, 1080p@24/25/30, 1080p50/60 |

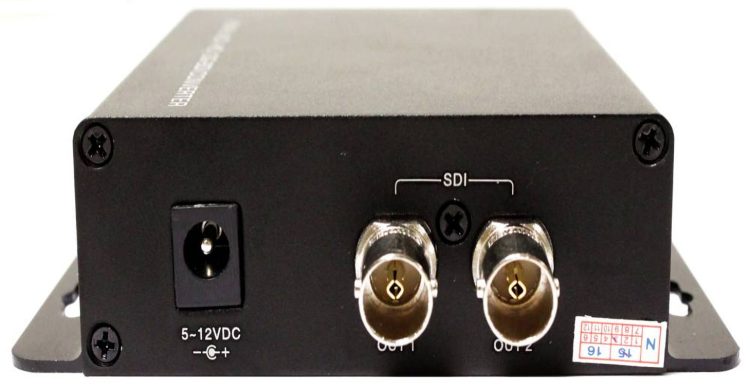

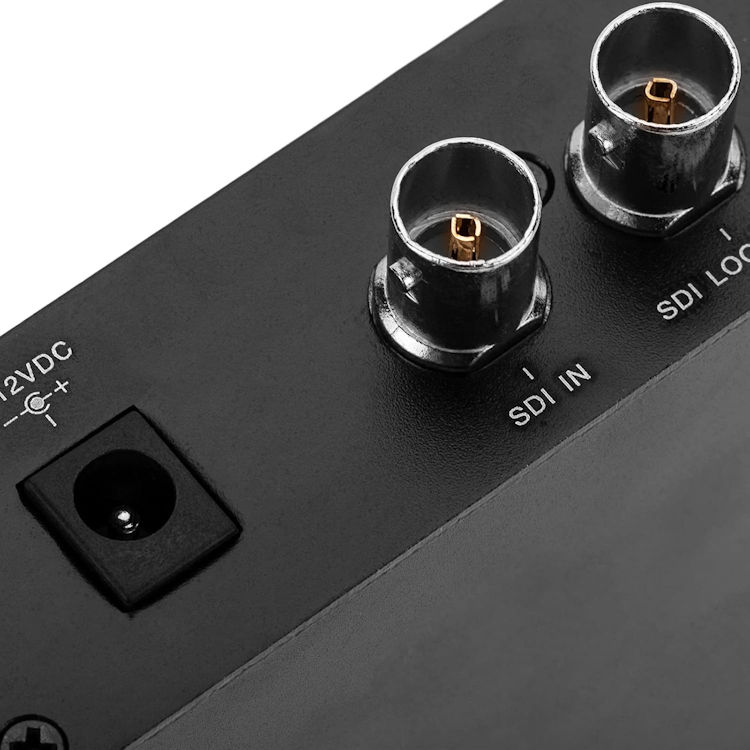

| SDI Out Interface | 2x BNC (SD-SDI/HD-SDI/3G-SDI) |
| SDI Signal Range | 0.8V p-p |
| SDI Impedance | 75 ohms |
| SDI Coupling Type | AC Coupling |
| SDI Signal Jitter (Typical Value) | SD-SDI≤0.1 UI / HD-SDI≤0.2 UI / 3G-SDI≤0.4 UI |
| Max. Output Coax Length. | Belden 1694A SD-SDI 130 ft (39.62 m) ; HD-SDI 600 ft (182.88 m) ; 3G-SDI 450 ft (137.16 m) |

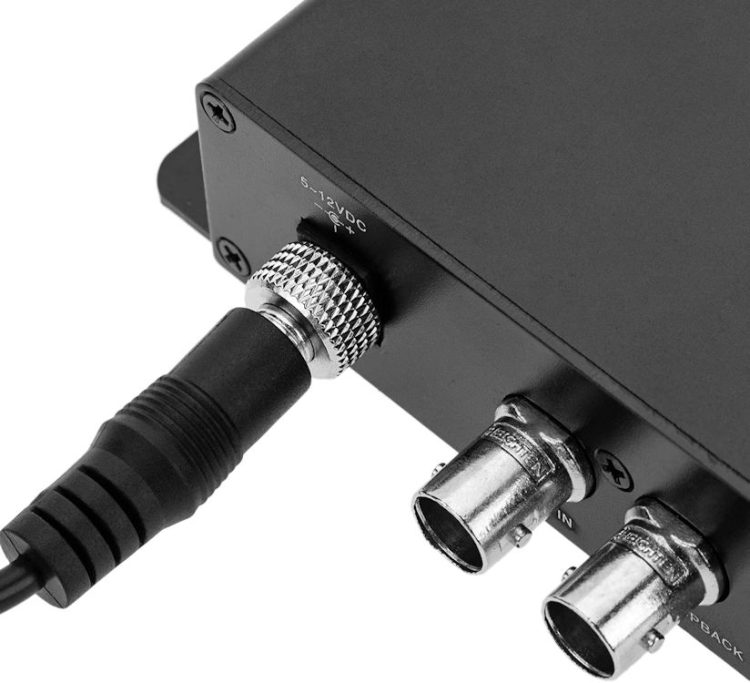

| Power Supply | 12V DC, 1A w/ Locking Power Connector |
| Power Consumption | 3~6 Watts |
| Operating Temperature | 14°F (-10°C) ~ 140°F (60°C) |
| Storage Temperature | -22 °F (-30 °C) ~ 158 °F (70 °C) |
| Relative Humidity | 20~90% RH (non-condensation) |
| Dimension | 4.40 inches (11.18 cm) × 4.46 inches (11.33 cm) × 0.98 inches (2.49 cm) |
