IEN16-1U
Original price was: $1,009.99.$604.95Current price is: $604.95.

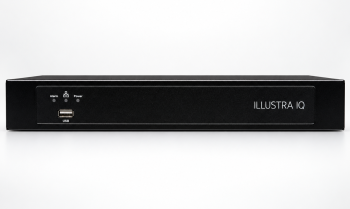

Illustra IEN16-1U Video Encoder
- Moves up to 16 analog camera feeds to IP video
- Supports H.264, H.265, and video up to 8MP
- Adds PTZ control, two-way audio, and alarm links
- Works with ExacqVision and Tyco VideoEdge systems
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Illustra IEN16-1U video encoder sends analog video to an IP network. It is a 16-channel HD video encoder for sites with coax cable and analog cameras. This 1U rackmount video encoder can keep old gear in use. A site may then avoid a full camera change. This analog-to-IP video encoder turns up to 16 camera feeds into network streams.
Also, the 16-channel HD video encoder fits one rack unit. Its case keeps the rack neat. It can serve stores, schools, offices, plants, and other sites that use analog cameras. The unit gives each site a clear path to network video.
This analog-to-IP video encoder uses H.264 and H.265 video. Thus, these formats can cut network traffic and storage use. The unit can send video up to 8MP at 10 frames each second. Staff can then see clear video during live view, search, and review.
The 1U rackmount video encoder has RS-485 links for PTZ camera control. Staff can move a supported PTZ camera from the video system. Also, two-way audio sends sound in both ways. Digital input and output ports can also link alarms and other gear to event actions.
The Illustra surveillance video encoder works with ExacqVision and Tyco VideoEdge systems. Next, teams can add it to a video process they know. The Illustra surveillance video encoder also helps a site move to IP in steps. The site can replace cameras when its plan and budget allow.
The IEN16-1U puts 16 video inputs, new video formats, PTZ control, audio, and alarm links in one unit. It lets a site keep analog gear while it adds network access for recording, live views, and event response. See more encoder and decoder products from Collsam.
| Video | |
| Video compression | H.265, H.264, MJPEG |
| Max. Resolution & frame rate. | Per channel: 5MP at 6fps, 4MP at 8fps, 1080p at 15fps, 720p/540p/360p/270p at 30 fps |
| Frame rate range | 1–30 fps |
| Bitrate control | CBR/VBR |
| Stream sharing | Up to 64 live streams |
| Pan/Tilt/Zoom | Supports analog PTZ camera control via the Pelco D & Pelco P protocol |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio compression | G.711 μ-law |
| Audio input/output | 4-line input and 1-line output |
| Network | |
| Ethernet | RJ-45, 10/100/1000 Mbps (Gigabit ethernet) |
| Authentication and security | TLS, HTTPS (HTTP over TLS), WS-Security, multi-level password protection, IP address filtering, HTTPS encryption, user access log, IEEE 802.1x, PEAP |
| Network Protocols | TCP/IP, IPv4, IPv6, FTP, SFTP, TCP, UDP, HTTP, LLDP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTSP, WS-discovery, UPNP, TLS, Unicast, Multicast, NTP, SMTP, WS-Security |
| Network management | SNMP v2c & SNMPv3 |
| System Integrations | |
| Application programming | ONVIF Profile S/T |
| Video management systems | American Dynamics VideoEdge and Exacq |
| Event triggers | Motion and Alarm input |
| Event actions | E-mail notification |
| Browser supported | Microsoft Edge, Google Chrome, Mozilla Firefox, or Apple Safari |
| I/O Interfaces | |
| Alarm input | 4-in, 3V~12V (High) / 0.5V (Low) |
| Auxiliary output | 1-out, Relay contact 24Vdc 3A /120VAC 3A |
| Video output | HDMI, VGA and BNC |
| LED indicators | For power, network, and alarm |

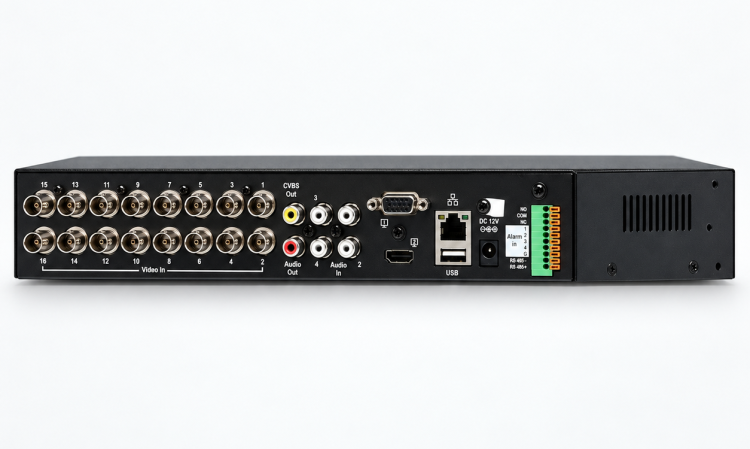

| I/O Connector | 16x analog video BNC input 1x CVBS output 1x WAN port 2x USB port 1x RS485 |
| Analytics | |
| Application | Motion detection with ROI |
| Regulatory | |
| Safety | UL 62368-1, CB: IEC 62368-1, cTUVus |
| Emission & Immunity | CE, FCC |
| Environmental | RoHS, WEEE, REACH |
| General | |
| Users | 10 simultaneous users |
| User account access level | Admin/operator and user |
| Power rating | DC12V/2A, 24W |
| Operating temperature | 32°F (0°C) to 104°F (40°C) |
| Storage temperature | -13°F (25°C) to 158°F (70°C) |
| Operating humidity | 0-95%, non-condensing |

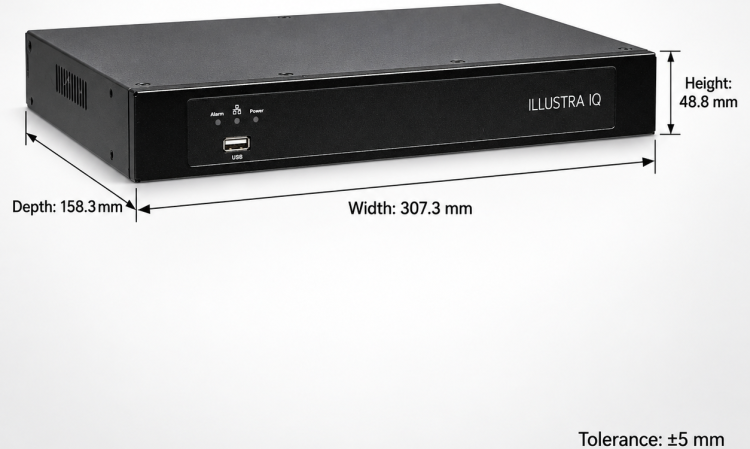

| Dimensions WxDxH | 12.1 inches (30.73 cm) x 6.23 inches (15.82 cm) x 1.92 inches (4.88 cm) ± 0.2 inches (5.08 mm) |
| Weight | 3.13 lb (1.42 kg) |
| Shipping weight | 5.29 lb (2.4 kg) |
| Casing | Metals casing 1U standalone or rackmount Color: EN532T Black sand texture |
| Warranty | 3 Years |
