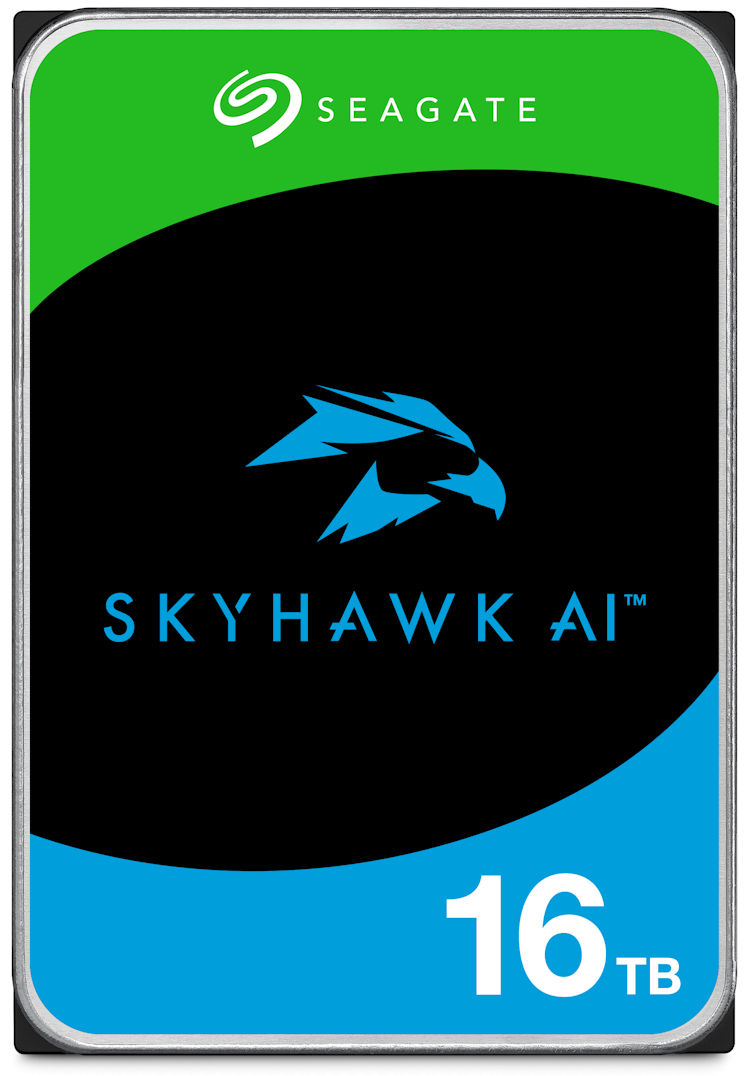

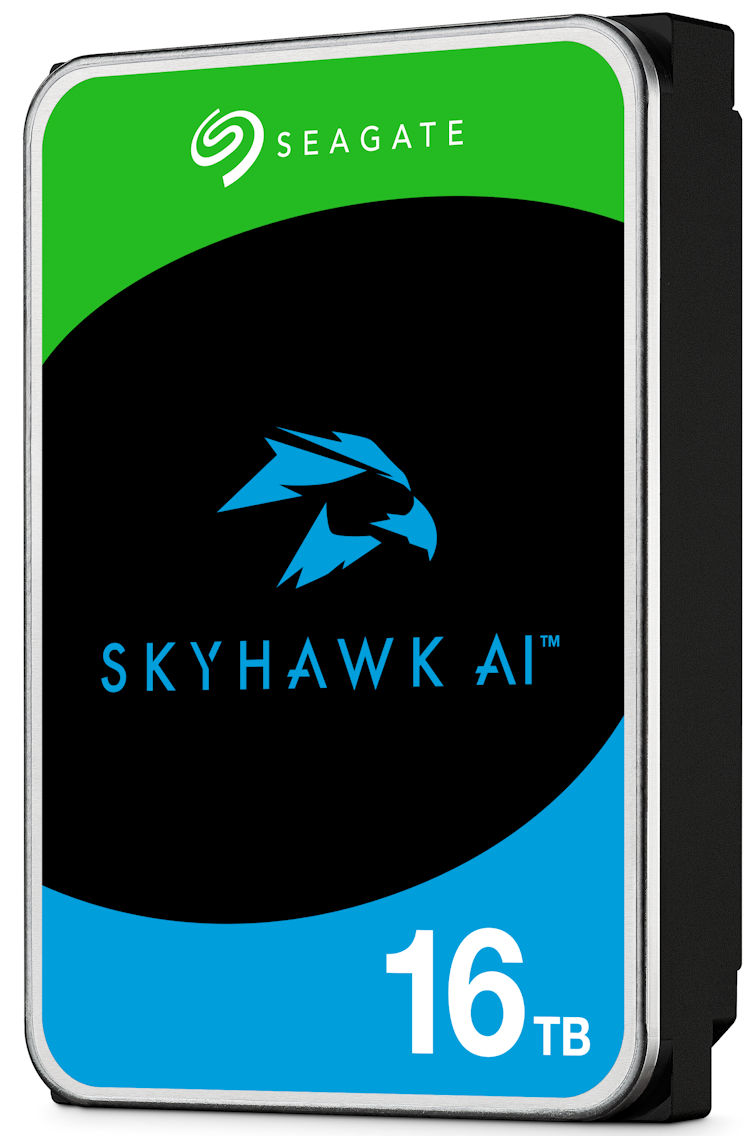

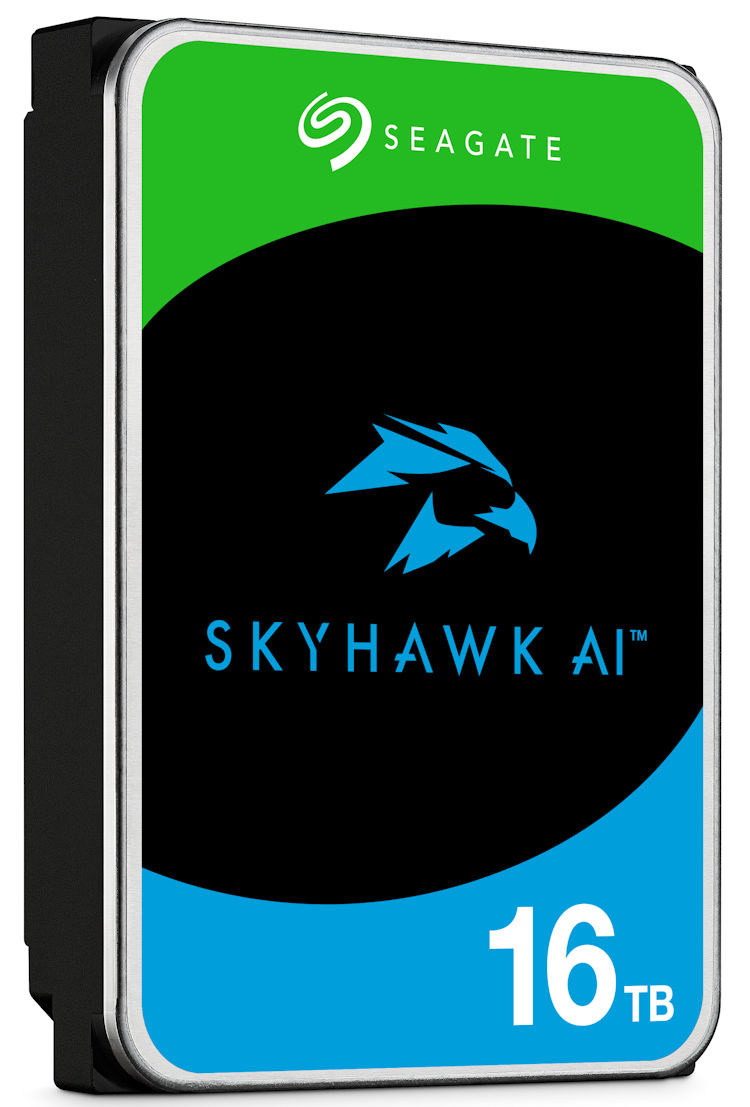

ST16000VE002
Original price was: $1,549.99.$929.95Current price is: $929.95.Ea
- 16 TB SkyHawk AI surveillance storage
- Supports up to 64 HD cameras and 32 AI streams
- 7200 RPM, 256 MB cache, and SATA 6 Gb/s
- Designed for continuous 24/7 recording
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The ST16000VE002 SkyHawk surveillance hard drive provides dependable Seagate SkyHawk 16TB surveillance storage for continuous DVR and NVR recording. It stores large volumes of high-resolution video from multiple cameras. Therefore, it suits businesses and security professionals who need reliable access to surveillance footage around the clock.
The Seagate ST16000VE002 16TB surveillance hard drive uses a 7200 RPM spindle and 256 MB cache to keep video playback smooth during heavy workloads. In addition, the SATA 6 Gb/s interface provides fast transfers and easy integration with compatible recorders. Conventional Magnetic Recording supports steady video recording.
The ST16000VE002 SkyHawk surveillance hard drive uses ImagePerfect AI firmware to support up to 64 HD camera streams and 32 AI streams at the same time. As a result, it can process AI video analytics while maintaining clear recordings without dropped frames.
Seagate designed this Seagate SkyHawk 16TB surveillance storage for demanding 24/7 environments. Moreover, its workload rating reaches 550 TB per year, and its mean time between failures reaches 2 million hours. The drive monitors its health so operators can respond early to potential storage problems.
Finally, a three-year Rescue Data Recovery Services plan helps protect recorded evidence from unexpected data loss. The Seagate ST16000VE002 16TB surveillance hard drive delivers reliable, high-capacity storage for professional security systems.
| Capacity | 16TB |
| Interface | SATA 6 Gb / s |
| Recording Technology | CMR |
| Drive Design | Helium |
| Features and Performance | |
|---|---|
| Drive Bays Supported | 16+ |
| AI Channels | 32 |
| AI Real-Time Capture Events / Sec1,2 | Up to 120 |
| AI Real-Time Compare Events / Sec1,2 | Up to 96 |
| HD Cameras Supported3 | Up to 64 |
| RV Sensors | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 250MB / s |
| Cache (MB) | 256 |
| Reliability / Data Integrity | |
| Tarnish Resistant | Yes |
| Load / Unload Cycles | 300000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL)4 | 550 |
| Mean Time Between Failures (MTBF) (hours) | 2,000,000 hr |
| Warranty, Limited (years)5 | 3 |
| Rescue Data Recovery Services (years)6 | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 6.71 W |
| Idling Average (W) | 5.1 W |
| Standby Mode / Sleep Mode, Typical (W) | 1.05 / 1.05 |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Environmental / Temperature | |
| Operating (ambient, min °C) | 5 |
| Operating (drive case, max °C)7 | 70 |
| Non-operating (ambient, min °C) | −40 |
| Physical | |
| Height (mm/in, max) | 1.028 inches (2.61 cm) |
| Width (mm/in, max) | 4.01 inches (10.19 cm) |
| Depth (mm/in, max) | 5.787 inches (14.7 cm) |
| Weight (g/lb, typical) | 1.477 lb (669.96 g) |
1 Events can be human, vehicle, or object capture.
2 Tested and verified using embedded AI NVR – 64-ch HD recording, 16-ch PB. Average picture size ~250 KB
3 1080P, H.265, 25 fps
4 SkyHawk AI surveillance drives are designed for always-on workloads of 550 TB/year. For higher transaction workloads, see Seagate’s enterprise-class drive offerings.
5 Extended warranty options available. Consult your distributor for details.
6 From May 1, 2020, a 3-year Rescue Data Recovery Services plan may be offered in addition to the standard warranty. This is offered for selected regions only. Check with the reseller on availability.
7 Seagate does not recommend operating at sustained extreme temperatures. Operating at higher temperatures will reduce the useful life of the product.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
Brand
Seagate
eagate supplies reliable storage for continuous video recording in residential, business, and commercial surveillance systems. Seagate SkyHawk hard drives are purpose-built for security applications that require dependable recording and video retention. These drives support compatible DVR hard drives and NVR hard drives applications across a wide range of surveillance installations.
Seagate SkyHawk hard drives are available in different capacities to support various camera counts and retention needs. Purpose-built DVR hard drives provide storage for compatible digital video recorders, while NVR hard drives support compatible network video recording systems. These storage options help maintain recorded footage for monitoring, review, and security investigations.
Collsam Security provides Seagate surveillance storage for professional security projects. Available solutions support new surveillance installations, storage upgrades, system expansion, and replacement drives for compatible recording equipment that requires reliable, continuous video storage.
