ST6000VX009
Original price was: $508.99.$274.95Current price is: $274.95.

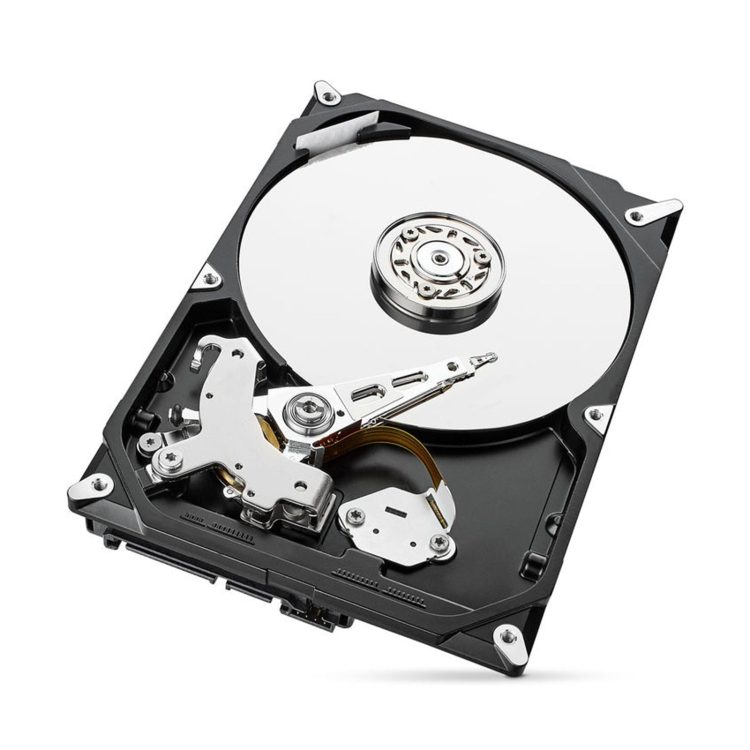

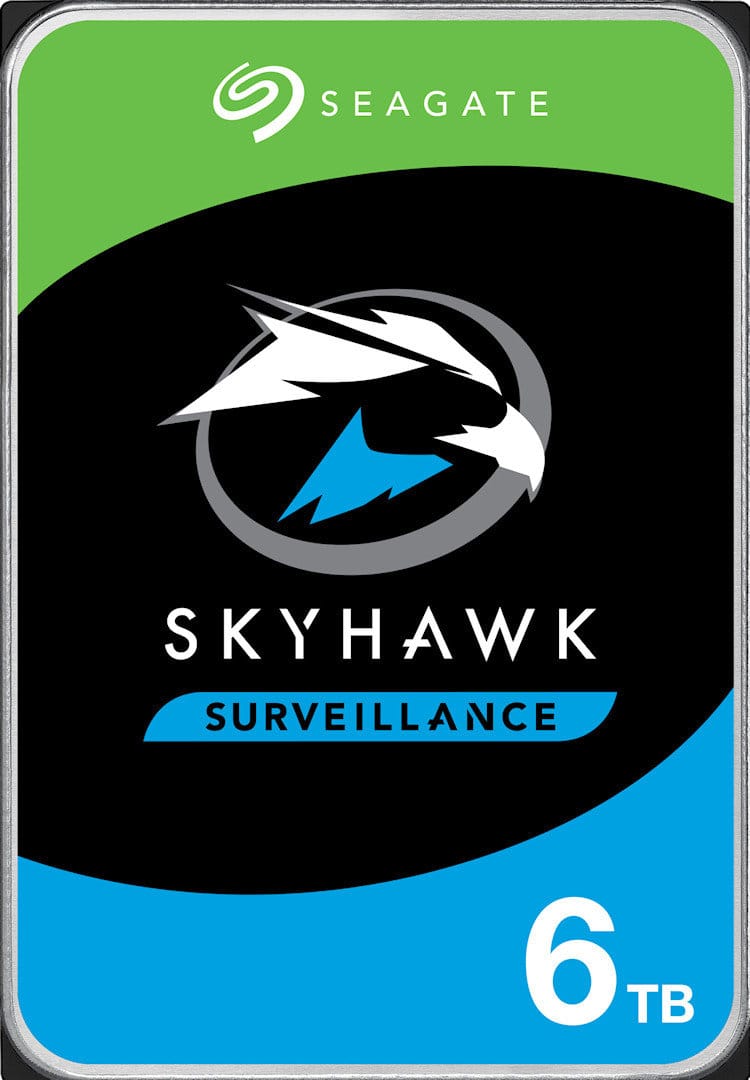

Seagate SkyHawk ST6000VX009 6TB Surveillance Hard Drive
- 6TB SkyHawk surveillance-grade internal hard drive
- SATA 6Gb/s interface
- CMR recording technology
- 256MB cache
- Rotational-vibration sensors for multi-bay systems
- Supports systems with up to 16 drive bays
- Designed for up to 64 surveillance cameras
- Up to 180MB/s sustained transfer rate
- Compatible with select NVR and DVR systems using 3.5-inch SATA drives
- 3-year limited warranty
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
The Seagate SkyHawk ST6000VX009 is the perfect internal hard drive for your digital video recording needs. Digital video recorders and network video recorders can use it with a spacious 6 TB capacity. Security systems, surveillance purposes, and even home entertainment can benefit from this powerful hard drive.
The SkyHawk ST6000VX009 has a 256 MB buffer and a spindle speed of 5400 RPM. This buffer acts as a temporary storage area for data, which improves the overall performance of the hard drive. The 5400 RPM spindle speed also helps you to quickly access and transfer large files without lag.
Equipped with a SATA interface and SATA/600 drive interface standard, this hard drive offers lightning-fast data transfer speeds. Modern computers typically use the SATA interface. Meanwhile, the SATA/600 drive interface standard provides maximum data transfer rates of up to 600 MB/s. This means that you can easily transfer large files, such as high-resolution videos. In fact, you can do this in a matter of seconds.
In addition to its impressive performance, the Seagate SkyHawk ST6000VX009 also comes with 3 years of Seagate Rescue Data Recovery service. This service ensures that your data is protected in case of accidental deletion, hardware failure, or any other data loss event. With Seagate Rescue, you can rest easy. You will know that your important data is in safe hands.
At Collsam Distribution, we are proud to offer the Seagate SkyHawk ST6000VX009 as part of our product range. We are committed to providing our customers with high-quality and reliable products. These products are designed to meet their specific needs. With the SkyHawk ST6000VX009, you can expect top-notch performance, reliability, and data protection. Therefore, it is the perfect choice for all your DVR and NVR needs.
| SkyHawk™ Health Management Included | Yes |
| Interface | SATA 6Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Features and Performance | |
| Drive Bays Supported | Up to 16 |
| AI Channels | N/A |
| AI Real-Time Capture Events/Sec 1,2 | N/A |
| AI Real-Time Compare Events/Sec 1,2 | N/A |
| HD Cameras Supported3 | Up to 64 |
| RV Sensors | Yes |
| Max Data Transfer Rate (MB/s) | 180MB/s |
| Cache (MB) | 256MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) 1 | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1000000hr |
| Warranty, Limited (years) 2 | 3 |
| Rescue Data Recovery Services (years) 3 | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8A |
| Average Operating Power (W) | 5.3W |
| Idle Average (W) | 3.4W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25W |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Environmental/Temperature | |
| Operating (ambient, min °C) | 32 °F (0 °C) |
| Operating (drive reported, max °C) 4 | 149 °F (65 °C) |
| Nonoperating (ambient, min °C) | -40°F (-40 °C) |
| Physical | |
| Height (mm/in, max) | 1.028 inches (2.61 cm) |
| Width (mm/in, max) | 4.00 inches (10.16 cm) |
| Depth (mm/in, max) | 5.787 inches (14.7 cm) |
| Weight (g/lb, typical) | 1.389 lb (630.04 g) |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
Brand
Seagate
Seagate SkyHawk Video Storage
Seagate SkyHawk hard drives provide dedicated storage for compatible video-surveillance systems. They are engineered for continuous recording workloads commonly found in DVRs, NVRs, and network video security installations.Unlike standard desktop drives, surveillance hard drives are designed to manage multiple video streams and extended recording periods. This makes them suitable for security systems that continuously capture and retain footage.Storage for DVR and NVR Systems
SkyHawk surveillance hard drives can be installed in compatible digital video recorders and network video recorders. Available capacities allow installers to select storage based on the number of cameras, recording resolution, frame rate, compression settings, and required retention time.A higher-capacity drive can retain more recorded footage before the recorder begins overwriting older video. Actual retention depends on the complete system configuration and recording schedule.Continuous Video Recording
Security recorders may operate around the clock, creating storage demands that differ from ordinary computer use. SkyHawk drives are optimized for continuous surveillance recording and the sustained handling of video data.Supported workloads and features vary by drive model. Always confirm the recorder’s maximum supported capacity, drive-bay requirements, interface, firmware compatibility, and recommended hard-drive list before installation.Choosing a SkyHawk Drive
Consider the following factors when selecting a drive:- DVR or NVR compatibility
- Required storage capacity
- Number of connected cameras
- Camera recording resolution
- Continuous or motion-based recording
- Desired footage-retention period
- Available drive bays
- Supported SATA interface and form factor
