22Pe1-DOOR-01-304
Original price was: $669.99.$487.95Current price is: $487.95.

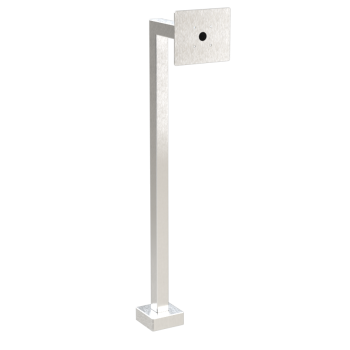

Pedestal PRO 22PE1-DOOR-01-304 for DoorBird D1101KH
A 45-inch brushed 304 stainless steel gooseneck pedestal with a 12-inch reach and a device-specific faceplate for the DoorBird D1101KH surface-mount intercom.
- 2-inch square tube with .120-inch wall
- Dedicated DoorBird faceplate
- Internal cable routing
- Indoor or outdoor access control installations
- Description
- Product Resources
- Additional Information
- Ordering, Shipping & Return Conditions
- Collsam Brands
- Reviews
Description
22PE1-DOOR-01-304 is a DoorBird D1101KH mounting pedestal. This 45-inch access control pedestal puts the unit at an easy height. Also, its 12-inch neck brings the device closer to drivers and guests. The Pedestal PRO DoorBird mount is a stainless steel gooseneck pedestal made from brushed 304 steel.
The fitted front plate holds the DoorBird D1101KH unit. So, it gives a neat fit and saves work. The 22PE1-DOOR-01-304 uses a strong 2-inch square tube with a .120-inch wall. Its cover opens for service, while the base plate gives the post a firm anchor.
For example, this 45-inch access control pedestal works at walk-up gates, doors, and parking entries. Crews can run wires through the hollow post. As a result, the DoorBird mount hides wires and keeps the unit within reach.

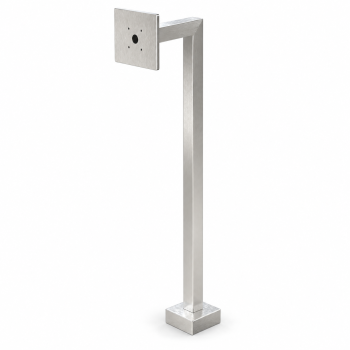

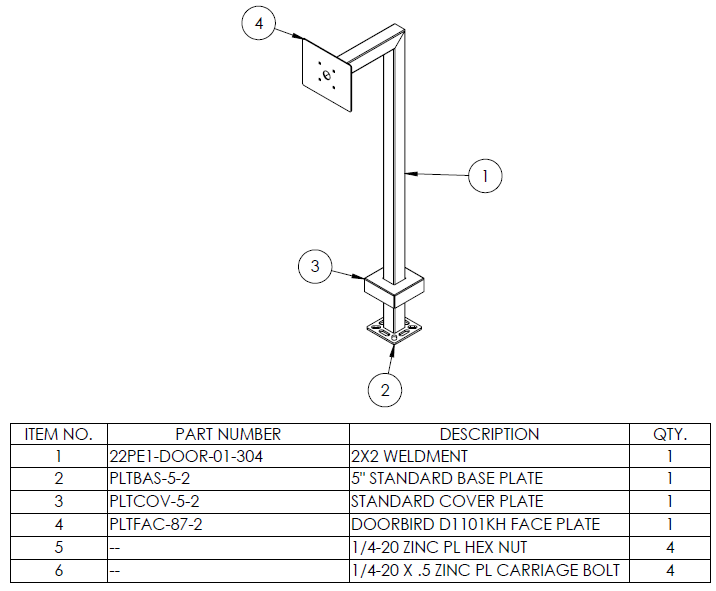

The 22PE1-DOOR-01-304 is a stainless steel gooseneck pedestal for indoor or outdoor use when crews follow the care guide. Also, the photos show the post, parts, size, and anchor points. Thus, crews can plan the cable path before work begins.

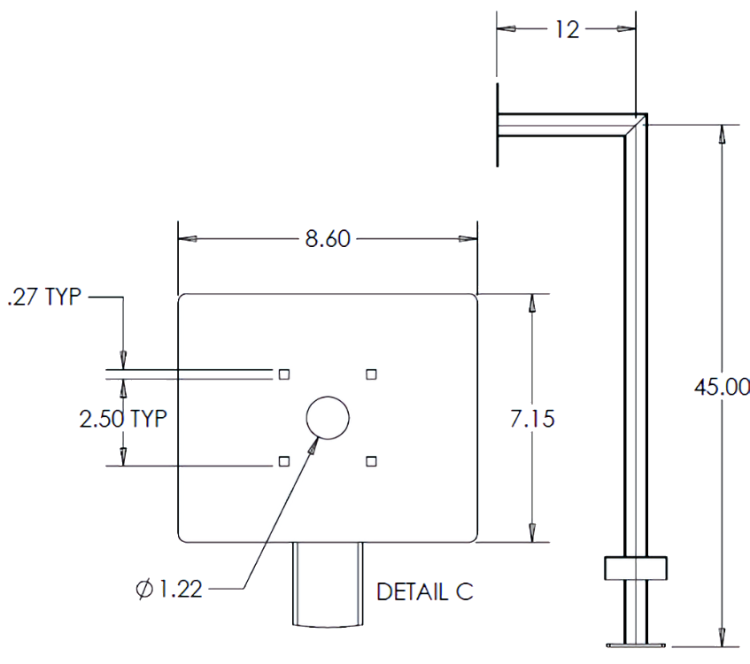

First, build a level concrete base and check the wire route. Next, check the site with the size drawing. The Pedestal PRO DoorBird mount includes the post and mount parts. But the DoorBird device is included only when the order lists it.
Finally, choose the 22PE1-DOOR-01-304 when a job needs a DoorBird D1101KH mounting pedestal with an exact fit. Its reach, hidden cable path, opening cover and steel that resists rust make this 45-inch access control pedestal a good choice for entry points.
Additional information
| Weight | 22 lbs |
|---|---|
| Dimensions | 50 × 12 × 7 in |
Ordering and Lead Times
Order conditions depend on whether an item is a standard stock product or a built-to-order/custom product. The lead time shown on the product or quotation takes priority.
- Stock products: In-stock items generally ship quickly, subject to current availability and order-processing cutoff times.
- Built-to-order and custom products: Fabrication begins after the order is accepted. Production time varies by product and project requirements.
- Rush production: Expedited fabrication may be available for an additional fee. Availability, pricing, and the promised production window must be confirmed before ordering.
- No minimum quantity: Orders may be placed for a single item or for larger project quantities.
Cancellations and Returns
- Built-to-order, customized, or modified products: Non-cancellable, non-refundable, and non-returnable.
- Standard stock products: A return authorization must be requested within 60 days of the invoice date.
- Authorized stock returns must arrive within the approved return period, freight prepaid, unmodified, undamaged, and in new or like-new resalable condition.
- Approved stock returns are subject to inspection and a 25% restocking fee. Credit is issued only after inspection and approval.
- The customer is responsible for return shipping, tracking information, and delivery confirmation.
Shipping and Delivery
- Carrier transit time is separate from the stated production or handling time. Carrier delays do not change the completed production date.
- Inspect the shipment and verify the package count before signing the delivery receipt.
- Visible damage or missing packages must be noted on the delivery receipt and reported to the carrier at delivery.
- Concealed shipping damage must be reported within five business days after delivery.
- Devices pictured or described with a pedestal, enclosure, or mounting product are not included unless specifically listed in the order.
Limited Warranty
Warranty coverage varies by product and material. Stainless-steel products include a one-year material-only limited warranty against defects in materials and workmanship under normal use. Warranty coverage does not include labor, installation, shipping, handling, normal wear, unauthorized modifications, improper use or maintenance, or damage caused by salt, chlorine, harsh chemicals, marine conditions, or industrial environments.
Brand
Pedestal PRO
Pedestal PRO provides professional mounting solutions for access control, surveillance, intercom, and security installations. Pedestal PRO products include access control pedestals, gooseneck pedestals, security device mounts, and camera mounting poles for commercial and professional security projects.
Installers can use access control pedestals for card readers, keypads, intercoms, and other entry devices. For installations requiring flexible positioning, gooseneck pedestals provide a practical way to mount access control and communication equipment at gates, entrances, and controlled-access locations.
Pedestal PRO security device mounts support clean installation of security and low-voltage equipment. These security device mounts provide practical mounting options for access control, intercom, surveillance, and related devices.
For surveillance installations, camera mounting poles provide dedicated mounting locations for security cameras and related equipment. Pedestal PRO camera mounting poles can support professional installations where suitable building or wall mounting locations are unavailable.
Collsam Security offers Pedestal PRO products for new installations, system upgrades, and expansion projects. Customers can choose professional mounting solutions for access control, surveillance, intercom, and other low-voltage security applications.
