TR-PIGTAIL-F

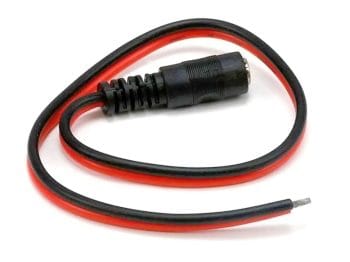

TR-PIGTAIL-F Female DC Power Pigtail with 2.1mm diameter standard DC Plug for use with CCTV security cameras.

Allows termination of any 2-lead bare wire to a DC plug to connect to a security camera. Also, great for use with Siamese cabling and power boxes. Suitable for use with equipment other than CCTV products as long as the DC connector diameter is the same.

Use TR-PIGTAIL-F DC power pigtail to connect your security cameras to your power distribution system or power adapter. It features a Female coaxial power plug on one end to two bare wires on the other.

Black and red wire jackets indicate polarity. Approximately 6 inches (15.24 cm) in length. It provides a simple solution for power connectivity.

Ultra thick 18 gauge 12v Female power pigtail cable are thicker than other 22 gauge pigtails wire, which can be used for higher current devices, the max Amp up to 7 Amp.

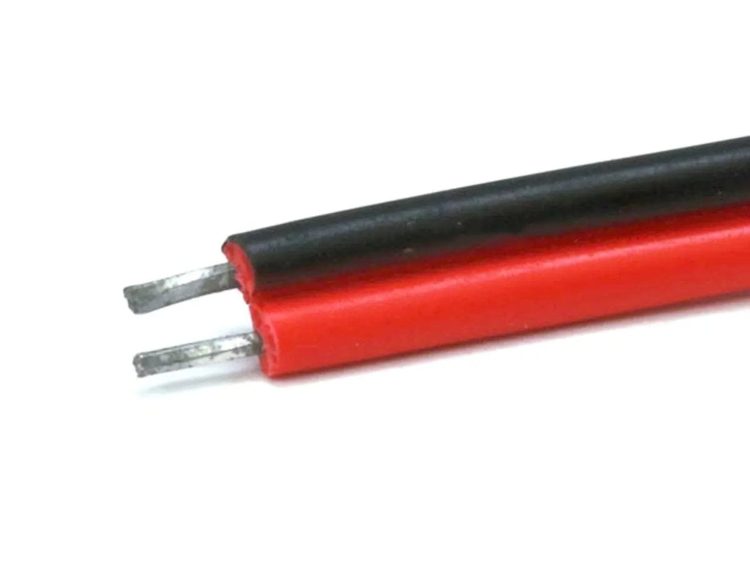

18 gauge stranded tinned copper wire Single strand on the micrometer is 0.008” and there are 24 strands for each cord.(Total 48 strands for 2 cords) ; Length: 8 inch (20.32 cm)

End of the DC power pigtail cables are pre-tinned making them super easy to solder, which is widely used for CCTV systems, surveillance, part lighting, LED strips light, car rearview monitor system video and other 2.1 × 5.5mm DC power devices.

Inside tip (Red wire) Positive; Outside of barrel (Black wire) Negative

Features

• Power Pigtail
• Female DC Plug
• Center Positive
• 6 inches (15.24 cm) length
• 12V DC Compatible
• Outdoor or Indoor Use

If being used outdoors, be sure to insulate the bare wire leads from the weather using electrical tape or heat shrink.
