SML-10GPA

0 out of 5

( There are no reviews yet. )

Original price was: $279.98.Current price is: $251.98.

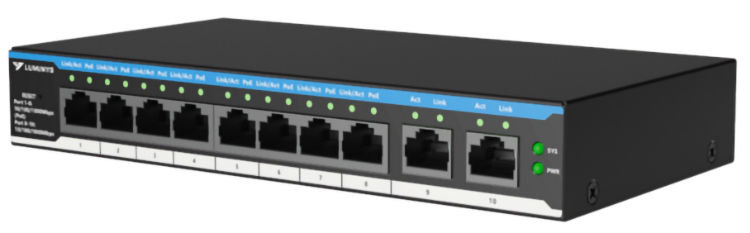

Luminys SML-10GPA 8-Port PoE++ Cloud Managed Gigabit Switch

8 PoE++ Gigabit Ports and 2 Uplink Ports
110W Total PoE Power Budget
LumiPoE Extends Power up to 820 ft (249.94 m).
Intelligent PoE with PoE Watchdog
Switching Capacity of 20 Gbps
LumiCloud basic remote management included.
Upgrade to LumiCloud switch subscription (LCL-SW100) for switch and port management features, sold separately.

Availability: In stock SKU: SML-10GPA UPC: 810161160044 Categories: Network Switch, PoE Switches, Telephone and Networking Tags: 8-Port Managed POE+ Switch, IEEE802.3u, IEEE802.3X;, Layer 2 Network ePoE Switch, NDAA Compliant;, PoE, PoE (IEEE 802.3), PoE (IEEE 802.3ab), PoE (IEEE 802.3af)

Description

The Luminys SML-10GPA is a high-performing 8-Port PoE++ Cloud Managed Gigabit Switch. It is designed for professional network deployments. Its feature-rich design makes it an ideal choice for a wide range of applications, such as security cameras and wireless access points.

With a total power budget of 110 Watts, this switch offers support for IEEE 802.3af, IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++) standards. This provides efficient power management for all connected devices.

Featuring eight Gigabit PoE ports and two additional RJ-45 uplink ports, the Luminys SML-10GPA offers a switching capacity of 20 Gbps. This allows for high-speed data transmission. It is a perfect choice for bandwidth-intensive applications, enabling smooth connectivity and fast data transfer.

Furthermore, with a maximum power output of 90W on a single port, the switch can efficiently power high-power devices like PTZ cameras. This makes it an ideal choice for security and surveillance systems.

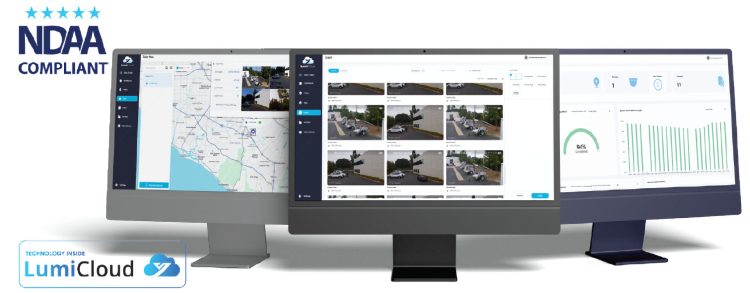

The Luminys SML-10GPA offers a unique dual-interface design that supports both web-based and cloud-based management. This feature provides users with the flexibility to choose between local and remote management options, depending on their preferences and requirements. By using the LumiCloud platform, users can easily configure and monitor their network remotely. This makes it a perfect choice for multi-site and distributed network deployments.

One of the most notable features of the Luminys SML-10GPA is its extended PoE signal capability. It can reach up to 820 feet (249.94 m) at 10 Mbps. This is particularly useful for long-distance installations, as it eliminates the need for additional equipment like repeaters and extenders. Moreover, the switch also includes intelligent power management with real-time monitoring. This ensures efficient power usage and prevents overloading.

It also comes with a PoE watchdog functionality that detects and reboots unresponsive connected devices automatically. This ensures uninterrupted operation.

Datasheet

Download

Upgrade your network with the Luminys SML-10GPA, an 8-port PoE++ cloud-managed switch designed for security cameras and wireless access points. With a 110W power budget and extended PoE signal, this switch offers flexible management and reliable operation in any environment. NDAA compliant and built to last, it's the perfect choice for professional network deployments Datasheet.

Hardware
PoE Ports	8 × 10/100/1000 Mbps PoE/PoE+/PoE++
Uplink Ports	2 × 10/100/1000 Mbps RJ-45
PoE Standards	IEEE802.3af, IEEE802.3at (PoE+), IEEE802.3bt (PoE++)
Network Standards	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
PoE Ports Power	Port 1: ≤ 90 W (PoE++) Ports 2 to 8: ≤ 30 W (PoE+)
Total Power Budget	110 W
PoE Pin Assignment	1, 2, 4, 5, (V+), 3, 6, 7, 8 (V-)
Performance
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.8 Mpps
Packet Buffer Size	4.1 Mbit
MAC Table Size	8,000
MTBF	127.3 Years
Features
Layer	2
Port Configuration	Port Rate Configuration, Flow Control, and Port Enabling
PoE Watchdog	PoE ports automatically detect and restart unresponsive cameras.
Long-Distance Transmission	Up to 820 ft (249.94 m) at 10 Mbps on PoE Ports
VLAN	Port-Based
VLAN Number	32
IEEE 802.3x Flow Control	Supported
Storm Control	Unknown Unicast, Multicast, and Broadcast
Port Mirroring	Supported
Port Isolation	Supported
LLDP	Supported
DHCP Function	Client
Electrical
Power Supply	54 VDC, 2.22 A, External Power Supply
Power Consumption	Idle: 6.0 W Total: 110.0 W
Surge Protection	Power Port: 4 kV/2 kV Telecom Port: 8 kV
Construction
Net Weight	1.2 lb (544.31 g)
Gross Weight	2.9 lb (1,315.42 g)
Operating Temperature	14 °F (-10 °C) to 131 °F (55 °C) 5 to 95% (RH), Non-Condensing
Storage Temperature	-40 °F (-40 °C) to 158 °F (70 °C) 5 to 95% (RH), Non-Condensing

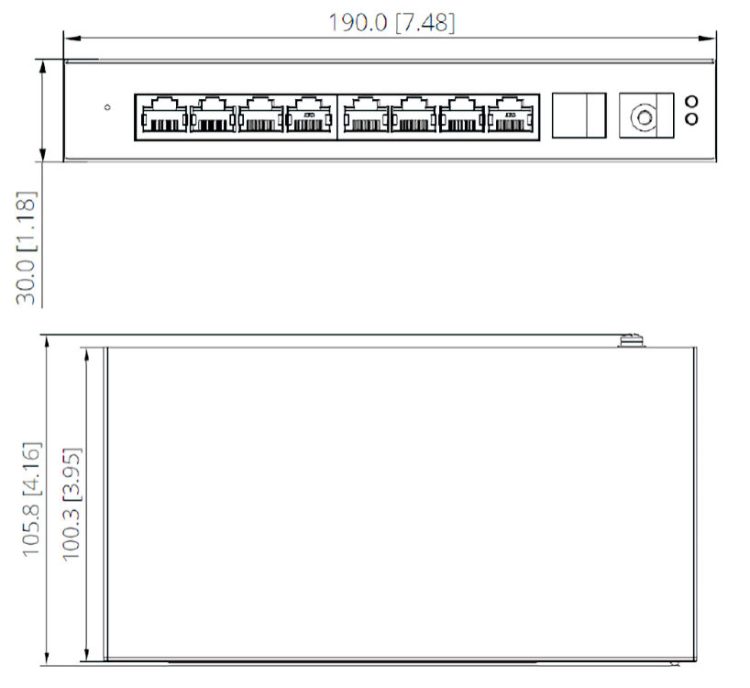

Product Dimensions (L× W × H)	7.5 inches (19.05 cm) × 4.2 inches (10.67 cm) × 1.2 inches (3.05 cm)
Material	Metal
Certifications and Compliance
Certifications	FCC Part 15 Subpart B
Transmission Performance	Switch power supply voltage to 53V. CAT5E/CAT6. Max. DC resistance < 10Ω/100m
IEEE802.3bt 90W
Cable (ft)	Load Capacity (W)	Bandwidth (Mbps)
328 ft (99.97 m)	71.3	1000
492 ft (149.96 m)	62	10
656 ft (199.95 m)	51	10
820	40	10
IEEE802.3at 30W
Cable (ft)	Load Capacity (W)	Bandwidth (Mbps)
328 ft (99.97 m)	25.5	1000
492 ft (149.96 m)	25.5	10
656 ft (199.95 m)	25.5	10
820 ft (249.94 m)	25.5	10
Note: Data from this table was collected by Luminys Systems Corporation test lab and is for reference only. The actual transmission distance may vary due to the power consumption of connected devices or the cable type and status.
