ACO-6020R

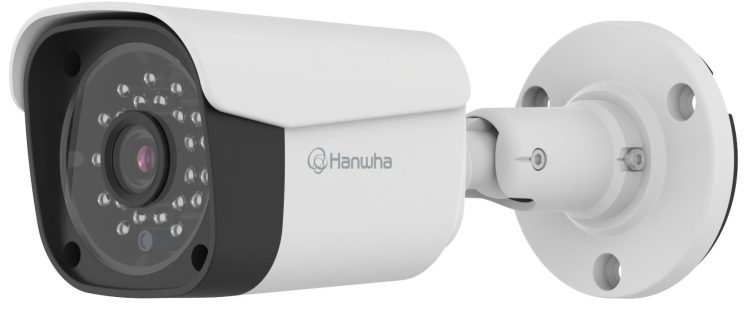

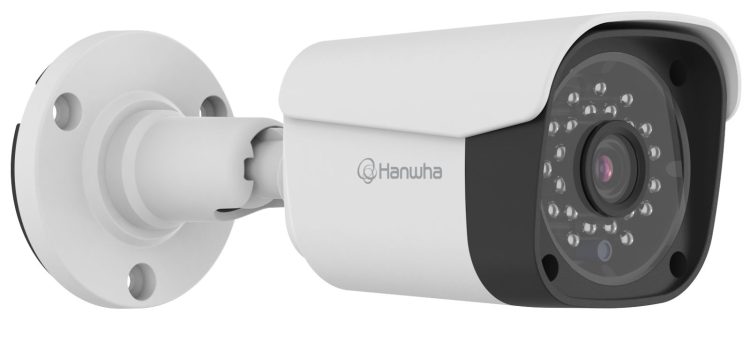

The Hanwha Vision ACO-6020R is a 2MP Analog HD IR Bullet Camera belonging to the Wisenet A Series. It is engineered for both indoor and outdoor surveillance, delivering high-definition video over coaxial cables.

ACO-6020R

Original price was: $93.00.Current price is: $63.95.

In stock

Original price was: $93.00.Current price is: $63.95.

Hanwha Vision ACO-6020R 2MP Analog HD IR Bullet Wisenet A Series 2MP IR bullet camera

  • 2MP Full-HD resolution @ 30FPS
  • 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
  • 3.6mm fixed focal lens FoV H: 81° / V: 42°
  • Day & Night (ICR), DWDR
  • IR distance 65.6 ft (19.99 m)
  • IP67, IK10
  • 12V DC power
  • Transmission distance Max.500m
  • Easy installation (plug and play), coaxial control
  • Multi-protocol compatible with AHD, TVI, CVI, CVBS
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R is the ultimate security camera for both residential and commercial use. The camera’s 3.6mm fixed focal lens and 81° viewing angle enable it to cover a larger area. The Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R is ideal for monitoring your front porch, backyard, or business entrance.

There is a 5MP resolution at 30FPS for high-quality, crystal-clear images provided by this camera. It has a 4MP resolution at CVI, so every detail is captured perfectly. The camera can still capture clear images in low-light conditions, giving you 24/7 surveillance.

One of the standout features of the Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R is its night vision capabilities. Even in complete darkness, this camera will give clear and detailed images. This makes it an ideal choice for outdoor surveillance, where lighting may be limited. You can rest easy knowing that your property is being monitored at all times, day and night.

Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R is easy to install thanks to its plug-and-play design. Simply connect the camera to your DVR or NVR, and you’re ready to go. You have more options when it comes to your surveillance setup with this camera being multiprotocol compatible. It also has a transmission distance of up to 500m, making it suitable for larger properties.

The Hanwha 2MP Analog HD IR Bullet ACO-6020R is built to last. With an IP66 weatherproof rating, this camera can withstand rain, snow, and extreme temperatures, ensuring reliable performance year-round. High-quality and reliable surveillance is provided by the Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R.

Datasheet

Download

Upgrade your security with the Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R. With 5MP resolution, night vision, and easy installation, it's a must-have for any surveillance system. Compatible with multiple protocols for added convenience Datasheet.

User's Manual

Download

Upgrade your security with the Hanwha Vision 2MP Analog HD IR Bullet ACO-6020R. With 5MP resolution, night vision, and easy installation, it's a must-have for any surveillance system. Compatible with multiple protocols for added convenience User's Manual.

Video
Imaging Device1/3” CMOS
Resolution1920×1080
Max. Frame rate.30fps
Min. IlluminationColor : 0.08Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on)
Video OutBNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance300m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)3.6mm fixed focal
Max. Aperture Ratio.F1.6
Angular Field of ViewH: 78° / V: 41° / D: 92°
Min. Object Distance.6.56 ft (2 m)
Operationala
Day & NightAuto(ICR)
Backlight CompensationBLC
Wide Dynamic RangeDWDR
Digital Noise Reduction2D + 3DNR
Gain ControlLOW / MIDDLE / HIGH
White BalanceATW / AWC
Electronic Shutter SpeedAUTO(1/30~1/50,000)
Video RotationMIRROR/V-FLIP/ROTATE
IR Viewable Length25m(82.02ft)
Coaxial ProtocolACP (AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C (Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity-22 °F (-30 °C)~+131 °F (55 °C) / 0~90% RH
Storage Temperature / Humidity-22 °F (-30 °C)~+140 °F (60 °C) / 0~90% RH
CertificationIP67, IK10
Input Voltage12VDC
Power ConsumptionMax 3.6W, Typical 2.9W
Mechanical
Color / MaterialWhite / Aluminum / Plastic
Product Dimensions / Weight2.76 inches (7.01 cm) x 2.72 inches (6.91 cm) x7.32 inches (81.28 cm), 0.93 lb (421.84 g)

Additional information

Weight2 lbs
Dimensions8 × 3 × 3 in
