Description

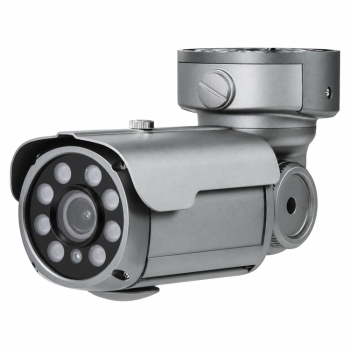

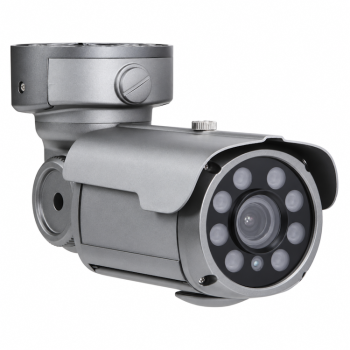

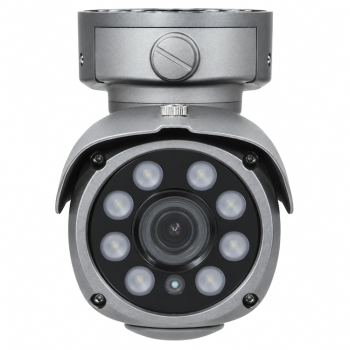

The Eyemax TIR-M2332V-B is a discontinued 2MP HD-TVI outdoor bullet camera for compatible coaxial surveillance systems. Its 1/2.9-inch Sony IMX-222 CMOS sensor supports 1080p, 720p and 720p crop video.

This model combines a motorized 2.8–12 mm auto-iris varifocal lens with eight COB infrared LEDs. The camera can produce an image at 0 lux when infrared illumination is active.

Eyemax TIR-M2332V-B key features

• 2MP 1080p HD-TVI video
• 1/2.9-inch Sony IMX-222 CMOS sensor
• Motorized 2.8–12 mm auto-iris varifocal lens
• Eight COB IR LEDs with Smart IR control
• IP68-rated outdoor housing
• WDR and digital noise reduction
• Day/night operation with ICR option
• TVI and CVBS video output
• RS-485 communication using Pelco-D
• 12V DC power input

Eyemax bullet camera for outdoor infrared surveillance

The IP68 housing helps protect the camera in outdoor installations. Eight COB IR LEDs support nighttime monitoring. Smart IR can also reduce excessive illumination on nearby subjects.

WDR helps balance scenes with bright and dark areas. DNR reduces visible image noise. In addition, the camera supports motion detection, defog, privacy masking, image flip and image freeze functions.

TIR-M2332V-B motorized varifocal lens

The motorized 2.8–12 mm lens lets an installer adjust the viewing angle and focus for the scene. The camera supports compatible HD-TVI and CVBS coaxial video systems.

Discontinued product notice

The Eyemax TIR-M2332V-B is discontinued and is retained for product reference. Browse current 2-megapixel HD coaxial cameras or visit CCTV Source for available surveillance products.
