-40%

UIR-2182V-B

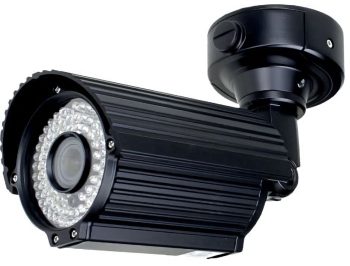

Eyemax UIR-2182V-B outdoor security camera right-angle view

UIR-2182V-B

In stock

Eyemax UIR-2182V-B Security Camera

  • Eyemax EX-SDI outdoor security camera
  • 1080p 2-megapixel surveillance camera
  • IP68 outdoor bullet security camera
  • 2.8–12 mm varifocal surveillance camera
  • Infrared night vision with DNR, AWB, and SENS-UP
  • NDAA-compliant professional camera made in Korea
Eyemax video surveillance brand logo

This product is no longer available.

Description

The Eyemax UIR-2182V-B security camera delivers clear EX-SDI video for residential and commercial properties. This Eyemax EX-SDI outdoor security camera records 1080p images through a 2-megapixel Sony CMOS sensor. Its durable IP68 housing protects internal components from dust, rain, and demanding weather. Therefore, installers can use the IP68 outdoor bullet security camera at entrances, parking areas, warehouses, offices, and property perimeters.

The 1080p 2-megapixel surveillance camera uses a 2.8–12 mm F2.0 auto-iris varifocal lens. This adjustable optic makes it a flexible 2.8–12 mm varifocal surveillance camera for wide overviews or closer views of important activity. Installers can set the viewing angle and focus for each location.

Moreover, the Eyemax outdoor camera maintains useful image quality as lighting changes. Its infrared cut filter improves daytime color accuracy and nighttime clarity. Meanwhile, digital noise reduction minimizes visual noise in darker scenes, while automatic white balance produces natural colors. Additionally, SENS-UP technology increases sensitivity when available light becomes limited.

Selectable EX-SDI and HD-SDI outputs provide flexibility for compatible surveillance systems. Consequently, installers can choose the signal format that best suits the recorder and cabling configuration. Furthermore, this camera supports compatible balun solutions, which can simplify installation and integration with existing security equipment.

Eyemax manufactures the UIR-2182V-B in Korea for professional security applications. The UIR-2182V-B camera is also NDAA compliant. Therefore, it suits projects that require compliant video-surveillance equipment. Its 1080p resolution, adjustable optics, outdoor protection, and advanced processing support dependable monitoring throughout the day and night.

Finally, Collsam Security supplies this model and other professional Eyemax surveillance products. This camera combines strong outdoor construction, flexible video output, clear imaging, and reliable low-light performance. Thus, it offers a practical solution for homes, businesses, warehouses, offices, retail locations, and other properties that require dependable continuous video monitoring.

Resolution1080P, 720P, 720P CROP
Sensor1/2.9-inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemPROGRESSIVE
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE274M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option)
Min.Illumination1 Lux at F1.2 / 0.1 Lux (B/W)
White BalanceAUTO / AUTO EXT / PRESET / MANUAL
shutterAUTO / MANUAL (1/30sec ~ 1/60,000sec)
BrightnessADJUSTABLE (0 ~ 20 STEP)
SENS_UPOFF / × 2 / × 4 / × 8 / × 16 / × 32
DNROFF / LOW / MIDDLE / HIGH
BACKLIGHTOFF / WDR / BLC / HLC
ACEOFF / LOW / MIDDLE / HIGH
Day and NightAUTO (Day <–> Night TIME Change), COLOR, Black and White, EXTERN,
PrivacyOFF / ON
MotionOFF / SET
D.ZOOMx1.0 ~ × 16.0
FLIPOFF / ON
FREEZEOFF / ON
LanguageENG, CHN, CHN(S), JPN, KOR
SharpnessADJUSTABLE (0 ~ 10 STEP)
DEFOGOFF / SET
COMMRS-485 (PELCO-D)
SMART IR (IR product SPEC.)ADJUSTABLE (0 ~ 20 STEP)
Operating Temperature / Humidity14°F (-10 °C) ~ 122 °F (50 °C)
Storage Temperature / Humidity-4 °F (-20 °C) ~ 140 °F (60 °C)
PowerAC24V / DC12V Dual Power (option)
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))

Datasheet

Download

Upgrade your outdoor security with Eyemax EX-SDI1080p IP68 camera. Featuring 2.8~12mm varifocal lens, 80 IR LEDs, and advanced features like DNR and SENS-UP. NDAA compliant and Balun compatible. Shop now at Collsam Distribution Datasheet.

Additional information

Weight5 lbs
Dimensions18 × 9 × 9 in

Brand

Eyemax

Eyemax provides professional video surveillance solutions for commercial, residential, retail, educational, and other security applications. Its product range includes HD analog cameras, IP cameras, network video recorders, and digital video recorders for new installations and system upgrades.HD analog cameras provide high-definition video while supporting compatible coaxial surveillance infrastructure. IP cameras offer network-based monitoring with flexible installation options for modern security systems.Network video recorders provide centralized recording, storage, and management for compatible network cameras. Digital video recorders support compatible coaxial camera installations and hybrid surveillance environments. Eyemax solutions are available from Collsam Security for professional security applications.
Eyemax video surveillance brand logo
