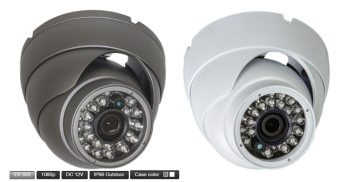

Eyemax UIB-2022, a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups. Enjoy clear footage, long-distance transmission, and improved image quality in any lighting. Available in gray or white, with a 2.8mm or 3.6mm lens. IP66 is rated for outdoor use.
Eyemax UIB-2022 is a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups Available in gray or white with a 2.8mm or 3.6mm lens IP66 is rated for outdoor use Dimensions
Eyemax UIB-2022, a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups. Enjoy clear footage, long-distance transmission, and improved image quality in any lighting. Available in gray or white, with a 2.8mm or 3.6mm lens. IP66 is rated for outdoor use.
Eyemax UIB-2022 is a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups Available in gray or white with a 2.8mm or 3.6mm lens IP66 is rated for outdoor use Dimensions

UIB-2022

Eyemax UIB-2022, a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups. Enjoy clear footage, long-distance transmission, and improved image quality in any lighting. Available in gray or white, with a 2.8mm or 3.6mm lens. IP66 is rated for outdoor use.

UIB-2022

In stock
0 out of 5
( There are no reviews yet. )

Eyemax UIB-2022 EX-SDI 1080p EYEBALL IR Camera with Fixed Lens

  • 2.8mm or 3.6mm Fixed Lens
  • 1080p FULL HD Flawless Video
  • 1/2.9” Sony CMOS
  • 0 Lux at IR On (IR : 25pcs)
  • DNR (Digital Noise Reduction)
  • True Day and Night (ICR)
  • Easy Installation
  • DC 12V
Eyemax LogoCollsam Security NDAA
SKU: UIB-2022-2 Categories: , Tags: , , , ,
Recommended replacement UIB-4332-V

Description

The Eyemax UIB-2022 is a top-of-the-line surveillance camera that delivers high-quality, full-HD video footage. It ensures clear and crisp images. This advanced camera is a hybrid model that offers both EX-SDI and HD-SDI output options. This provides flexibility for various surveillance setups. This versatility allows for seamless integration with existing systems. Additionally, it offers the ability to upgrade to a newer, more advanced system in the future.

One of the standout features of the Eyemax UIB-2022 is its use of EX-SDI technology. This technology allows for visually lossless video transmission over long distances via coaxial or UTP cable. It ensures high-quality video footage and helps to reduce cabling costs. This makes it a cost-effective choice for any surveillance setup.

Furthermore, the camera’s hybrid model allows for the use of both EX-SDI and HD-SDI. This gives users the ability to choose the best option for their specific needs.

In addition to its advanced technology, the Eyemax UIB-2022 also boasts Digital Wide Dynamic Range (D-WDR) technology. This helps to improve image quality in challenging lighting conditions. Whether it is a bright and sunny day or a dark and shadowy area, this camera can adapt to capture clear and detailed images.

This makes it an excellent choice for monitoring areas with varying lighting conditions, such as parking lots, shopping malls, or office buildings.

The Eyemax UIB-2022 comes equipped with a 2.8mm or 3.6mm fixed lens. This provides a consistent field of view. As a result, no detail is missed. This lens comes in both gray and white colors, giving users the option to select the best color for their specific environment.

Additionally, with an infrared illumination range of up to 80 feet (24.38 m), this camera can capture clear images in low-light and night-time conditions. This feature is particularly useful for outdoor surveillance, where criminals often target poorly lit areas.

Finally, the Eyemax UIB-2022 has an IP66 rating, meaning it is built to withstand harsh outdoor conditions. This rating certifies that the camera is dust and water-resistant. It makes it suitable for use in even the most extreme weather conditions. This durability ensures that the camera will continue to function at optimal levels, providing reliable surveillance for years to come.

In conclusion, the Eyemax UIB-2022 is a high-quality, versatile surveillance camera that offers a wide range of features to ensure clear and crisp video footage. With its use of EX-SDI technology, D-WDR, fixed lens options, and IR illumination, this camera is a top choice for any surveillance needs.

Its durability and adaptability make it a valuable addition to any security system. It provides peace of mind and reliable surveillance for any environment.

Datasheet

Download

Eyemax UIB-2022, a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups. Enjoy clear footage, long-distance transmission, and improved image quality in any lighting. Available in gray or white, with a 2.8mm or 3.6mm lens. IP66 is rated for outdoor use Datasheet.

Brochure

Download

Eyemax UIB-2022, a high-quality full-HD camera with EX-SDI and HD-SDI output for flexible setups. Enjoy clear footage, long-distance transmission, and improved image quality in any lighting. Available in gray or white, with a 2.8mm or 3.6mm lens. IP66 is rated for outdoor use Brochure.

Resolution1080P
Sensor1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemProgressive
S/N (Y Signal)More than 52 dB (AGC Off)
Video OutputSMPTE274M (HD-SDI)
Min. IlluminationIR Product: 0 Lux at IR On
White BalanceAuto
ShutterAuto (1/30sec ~ 1/60,000sec)
AGCON
DNRON
Day & NightON
Operating Temp / Humidity14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH
Storage Temp / Humidity-4°F (-4°F) ~ 140°F (60 °C) / 20% ~ 90% RH
PowerDC 12V
Signal TransmissionThe distance difference occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))

Additional information

Weight5 lbs
Dimensions8 × 8 × 8 in
Color

Gray, White

Lens Angel

2.8 MM, 3.6 MM
