XDM-202
$57.95

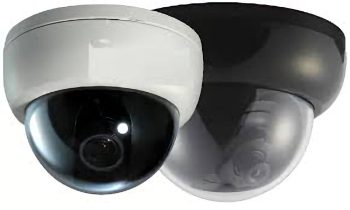

Eyemax XDL-204 1080p Superdome with ICR and Dual Voltage Indoor Dome Camera
- 1/3″ SONY CMOS
- HD-SDI (1080P • 720P)
- High Resolution (1000 TV Lines OVER)
- HD-SDI (High-Definition Serial Digital Interface)
- 1 LUX at F1.2 0.1 Lux (Black and white)
- OSD Controlled
- WDR (Wide Dynamic Range)
- Day and Night Function DNR (Digital Noise Reduction)
- Motion
- Privacy
- Easy Installation
- Fixed Lens 3.7 mm
- Description
- Product Documents
- Spicifications
- Additional information
- Collsam Brands
Description
As an advanced indoor security camera, the Eyemax XDM-202 has the best features to keep your spaces safe and secure. With its high resolution, motion-sensing capabilities, and day and night function, this camera is perfect for various surveillance applications. It is a versatile and reliable solution for monitoring homes, offices, retail stores, and other indoor areas.
It has a resolution of 1080p Full HD and 1000 TVL, which helps find any threats or strange activities. The 1/3” Sony CMOS sensor further enhances the camera’s image quality, providing high-definition footage even in low-light conditions. This ensures that you can monitor your property with confidence, day or night.
One of the standout features of the Eyemax XDM-202 is its motion-sensing capability. This feature allows the camera to detect any movement in its field of view and sends you notifications in real-time. This reduces false alarms, which saves you time and hassle in addition to keeping you updated on any activity.
You can also make privacy zones around sensitive areas so that your camera only records video from those areas.
The camera’s OSD (on-screen display) control lets you change settings like white balance, brightness, and contrast to suit your needs. The camera can be mounted in three different ways, so you can find the best angle for coverage. A fixed 3.7 mm megapixel lens with a wide field of view makes sure there are no blind spots.
With its true day/night feature and ICR (Infrared Cut Filter Removal), the Eyemax XDM-202 can capture crisp images even in complete darkness or low light.
This feature automatically switches to night vision mode when the lighting conditions are low, ensuring that your camera never misses any crucial details. With a 12V DC power supply, this camera is easy to install and operate, making it a user-friendly option for indoor surveillance. Overall, the Eyemax XDM-202 is an excellent choice for anyone looking for an indoor security camera with top-notch features and reliability.
| Resolution | HD-SDI (10BOP, 720P)/1000 TV LINE OVER |
| Sensor | 1/3″ SONY CMOS |
| Total Pixels | 201O(H) × 11OB(V) = 2,227,080 |
| Effective Pixels | 1944(H) × 1092(\/) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (HD-SDI) / CVBSL 1.0 Vp-p (75 ohm) |
| Min.lllumination | style=”height: 24px;”>1 Lux at Fl.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PUSHING / MANUAL |
| Electronic Shutter Speed | Auto/Manual (1/30 sec ~ 1/30000 sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / × 2. / × 3 / × 4 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| WDR/BLC | OFF / WDR / BLC |
| HLM | Off or SET |
| ACE | OFF / ON |
| Dey and Night | Aulo (Day >–< Night TIME Change), COLOR, B/W |
| Privacy | OFF / ON (28 Zone) |
| Motion Detection | OFF / ON |
| Digital ZOOM | O – X112 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Language | English |
| Shapness | ADJUSTABLE (0 ~ 10 STEP) |
| Mirror | ON / Off |
| COMM. | RS-485 (PELCO-D) |
| Operating Temperature/Humidity | 14°F (-10°C) ~ 122°F (50°C) / 30~80% RH |
| Storage Temperature/Humidity | -4°F (-20°C) ~ 140°F (60°C) / 20~90% RH |
| Power | 12VDC Only |
| Distance | 328 ft (99.97 m) ~ 482 ft (0.15 kilometers) |
| Transmission | Max transmission range depends on the cable manufacturer and the installation environment. |
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
| Color | Black, White |
