XDM-202V

Eyemax XDM-202V Superdome® Series HD-SDI Varifocal Lens 2.8~12 mm 2 Megapixel Lens. High resolution, WDR, DNR, and true day or night function for easy installation and superior performance. Get 1000 TV lines and 2 megapixels for ultimate clarity in black or White.

XDM-202V

Original price was: $139.99.Current price is: $67.95.

In stock

Original price was: $139.99.Current price is: $67.95.

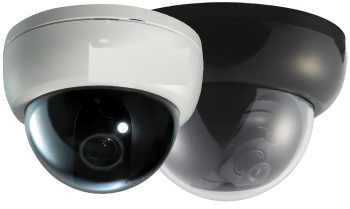

Eyemax XDM-202V SUPERDOME® Series HD-SDI Indoor Dome Camera with DC Auto Iris 2.8~12 mm Varifocal Lens

  • HD-SDI (High-Definition Serial Digital Interface)
  • 1/3-inch SONY CMOS
  • Varifocal Lens 2.8~12 mm 2 Megapixel Lens
  • DC Auto IRIS and TDN
  • Full HD 1080p Resolution
  • Minimum Illumination: 1 Lux color at F1.2, 0.1 Lux (Black and White)
  • Horizontal resolution equivalent to 1000 TVL
  • WDR (wide dynamic range)
  • DNR (Digital Noise Reduction)
  • True Day and Night (ICR)
  • Analog Output, 2nd Analog Video Out
  • OSD on-screen display control with joystick
  • 12V DC (power supply sold separately)
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Eyemax XDM-202V Superdome® Series HD-SDI Varifocal Lens 2.8~12 mm 2 Megapixel Lens Indoor Dome Camera is a risk-free choice. So you can always keep an eye on your property, this high-tech camera is made to work perfectly every time.

This camera’s 1/3-inch Sony CMOS HD-SDI (1080P and 720P) resolution and 1000 TV lines over HD-SDI produce clear, vibrant images. Undoubtedly, you can be sure that every move and detail will be captured exactly as they happened. The Eyemax XDM-202V Superdome® Series HD-SDI camera is an ideal choice for monitoring any property, including your home or office.

Its 1 LUX color at F1.2 and 0.1 LUX black and white settings allow it to capture excellent images even in low light. The image is clean and clear because of the OSD’s digital noise reduction (DNR) and wide dynamic range (WDR) controls.

The Eyemax XDM-202V Superdome® Series HD-SDI camera’s True Day and Night Function allows you to continually monitor your property. If it’s completely dark or there isn’t much light, the camera can change its settings to make clear video. This ensures that you never miss any important details, no matter the time of day.

Installation of the Eyemax XDM-202V is a breeze, thanks to its easy installation process. The DC Auto IRIS Varifocal Lens (2.8–12 mm) and TDN make it easy to take pictures of any part of your property. You can rest assured that the camera will always be on standby, ready to capture any suspicious or unusual activity.

In conclusion, the Eyemax XDM-202V Superdome® Series HD-SDI Varifocal Lens 2.8~12 mm 2 Megapixel Lens Indoor Dome Camera is a must-have for anyone looking for top-notch surveillance. Its advanced features, high-definition image and video quality, and easy installation make it the perfect choice for residential and commercial properties.

Datasheet

Download

Eyemax XDM-202V Superdome® Series HD-SDI Varifocal Lens 2.8~12 mm 2 Megapixel Lens. High resolution, WDR, DNR, and true day or night function for easy installation and superior performance. Get 1000 TV lines and 2 megapixels for ultimate clarity in black or white. Datasheet.

Brochure

Download

Eyemax XDM-202V Superdome® Series HD-SDI Varifocal Lens 2.8~12 mm 2 Megapixel Lens. High resolution, WDR, DNR, and true day or night function for easy installation and superior performance. Get 1000 TV lines and 2 megapixels for ultimate clarity in a black or White colors Brochure.

installation Manual

Download

Eyemax XDM-202V Superdome® Series HD-SDI Varifocal Lens 2.8~12 mm 2 Megapixel Lens. High resolution, WDR, DNR, and true day or night function for easy installation and superior performance. Get 1000 TV lines and 2 megapixels for ultimate clarity in a black or White color installation Manual.

ResolutionHD-SDI (1080P, 720P, 720P 1000 TV LINE OVER
Sensor1/3″ SONY CMOS
Total Pixels201O(H) × 11OB(V) = 2,227,080
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemPROGRESSIVE
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE292M (HD-SDI) / CVBSL 1.0Vp-p (75 ohm)
Minimum illumination1 Lux at Fl.2 / 0.1 Lux (Black and White)
White BalanceAUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter SpeedAuto/Manual (1/30 sec ~ 1/30000 sec)
BrightnessADJUSTABLE (0 ~ 20 STEP)
SENS_UPOFF / × 2. / × 3 / × 4
DNROFF / LOW / MIDDLE / HIGH
WDR/BLCOFF / WDR / BLC
HLMOff or SET
ACEOFF / ON
Dey  and NightAuto (Day >–< Nighttime Change) , Color , B/W
PrivacyOFF / ON (28 Zone)
Motion DetectionOFF / ON
D.ZOOMO – X112
FLIPOFF / ON
FREEZEOFF / ON
LanguageEnglish
ShapnessADJUSTABLE (0 ~ 10 STEP)
MirrorON / Off
CommunicationsRS-485 (PELCO-D)
Operating Temperature/Humidity14 °F (-10 °C) ~ 122 °F (50 °C) / 30~80% RH
Storage Temperature/Humidity-4 °F (-20 °C) ~ 140 °F (60 °C) / 20~90% RH
Power12V DC
Distance328 ft (99.97 m) ~ 482 ft (146.91 m)
TransmissionMax transmission range depends on the cable manufacturer and the installation environment.

Additional information

Weight2 lbs
Dimensions8 × 8 × 8 in
