XIR-2282FV

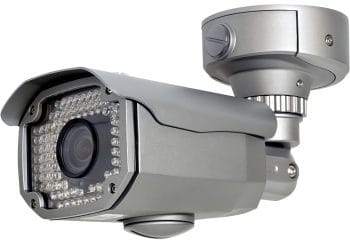

XIR-2282FV HD-SDI 1080p IR Bullet Camera with 2.8 ~ 12 MM DC Auto IRIS Varifocal Lens Front

XIR-2282FV

In stock

Eyemax XIR-2282FV HD-SDI 1080p IR Bullet Camera with 2.8 ~ 12 MM DC Auto IRIS Varifocal Lens

  • 1/3” Sony CMOS
  • HD-SDI Full HD (1080p)
  • HD-SDI (1080p, 720p) / High Resolution (1000 TV Line Over)
  • HD-SDI (High-Definition Serial Digital Interface) / 0 LUX at IR On (IR LED pcs)
  • Upgraded IP67 Ingress Protection Housing / OSD Controlled
  • True Day and Night (ICR) / DNR (Digital Noise Reduction)
  • Motion / Privacy / Easy Installation
  • 2.8 ~ 12 mm DC Auto-Iris Varifocal Lens (External Angle and Focus Control)
This product has been discontinued.

Description

Protect your property with the advanced and versatile Eyemax XIR-2282FV HD-SDI surveillance camera. Designed with the newest technology, this camera’s 1/3” Sony CMOS imaging sensor and 1080p/720p resolution provide clear and sharp video. You can use this camera indoors or outdoors, and it will capture every detail perfectly. It’s a great choice for any home or business.

The XIR-2282FV’s 2.8–12 mm DC auto IRIS varifocal lens allows you to customize the viewing angle and focus. External angle and focus control features provide you with even more flexibility and convenience in capturing the perfect shot.

When the infrared LEDs on this camera are turned on, they give off no light, so it can be used in low light.

Worried about image quality? Don’t be. The Digital Noise Reduction (DNR) technology of the Eyemax XIR-2282FV camera reduces image noise and produces sharp images even in low-light conditions. Plus, with its true Day and Night functionality (ICR), this camera automatically switches from color to black and white mode in low-light conditions, ensuring that you never miss a beat.

Designed to withstand harsh weather conditions, this outdoor camera comes with an IP67 housing ingress protection rating. It can still function in inclement weather because it doesn’t let in water or dust. Regardless of the weather, you can be certain that your property is being watched every single day.

Installation and setup have never been easier with the Eyemax XIR-2282FV camera. Its OSD (on-screen display) menu simplifies the process, allowing you to control motion, privacy, and other settings quickly and conveniently.

This camera’s HD-SDI technology also enables it to capture high-quality, uncompressed video, giving you the best possible footage. With its state-of-the-art features and user-friendly design, the Eyemax XIR-2282FV camera is an excellent choice for anyone looking for a reliable and efficient surveillance solution.

Datasheet

Download

XIR-2282FV HD-SDI 1080p IR Bullet Camera with 2.8 ~ 12 MM DC Auto IRIS Varifocal Lens Front Datasheet

Brochure

Download

XIR-2282FV HD-SDI 1080p IR Bullet Camera with 2.8 ~ 12 MM DC Auto IRIS Varifocal Lens Front Brochure

ResolutionHD-SDI (1080p, 720p) / 1000 TV lines over
Sensor1/3” Sony CMOS
Total Pixels2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels1944(H) × 1092(V) = 2.1M Pixel
Scanning SystemProgressive
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE292M (HD-SDI)
Min.Illumination0 lux at IR On
White BalanceAuto / Auto EXT / Pushing / Manual
Electronic Shutter SpeedAuto/Manual (1/30 sec ~ 1/30,000 sec)
BrightnessAdjustable (0 ~ 20 Step)
SENS_UPOff / × 2 / × 3 / × 4
DNROff / Low / Middle / Hi
WDR / BLCOff / Single Scan WDR / BLC
HLMOff / Set
ACEOff / On
Day & NightAuto (day <–> night time change) , color , B/W
PrivacyOff / On (28 Zone)
Motion DetectionOff / On
D.ZOOM0 ~ × 112
FLIPOff / On
FREEZEOff / On
LanguageEnglish
SharpnessAdjustable (0 ~ 10 Step)
MirrorOn / Off
COMM.RS-485(PELCO-D)
Operating Temperature / Humidity14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH
Storage Temperature / Humidity-4 °F (-20 °C) ~ +140 °F (60 °C) / 20% ~ 90% RH
PowerDC 12V Only
Distance300 ~ 450ft (100 ~ 150m)
Transmission rangeMax transmission range is depends on the cable manufacturer and the installation environment.

Additional information

Weight5 lbs
Dimensions10 × 6 × 6 in
