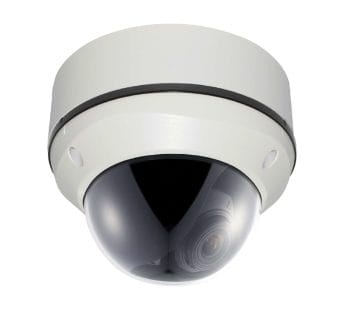

TVL-202V

HD-TVI stands for High Definition Transport Video Interface. HD-TVI is a video signal processing and transport technology used to transmit video in HD security cameras and DVRs. HD-TVI is capable of transporting uncompressed high-definition video up to 500 meters with standard low cost 3C-2V coaxial cables using analog transmission techniques. RG59 Siamese coax cable is the most popular for security camera systems.

HD-TVI technology currently support the following video resolutions using the same coax cable techniques used by traditional analog CCTV cameras: 720p 1080p, 3 megapixels, 4 megapixels, 5 megapixels, and 4K (8 megapixel). This makes it easy for people with existing analog CCTV systems to upgrade to an HD system because most of the time they can leverage their existing cable infrastructure. RG59 coax cable is the most popular cable used for installations. 1080p resolution is the most popular resolution for TVI cameras at this time.

• U.S.PATENT : WO2010114190 and US7963707
• TVL-202V STORM® series camera : IP-68 Water & Vandal-proof
• Easy Twist and Lock Installation : No drilling through camera required (Drill hole guide included)
• 3-Axis Construction : By adjusting ‘3-Axis’ control, you get a straight view regardless whether camera is installed on a wall or ceiling
• 1/2.9″ Sony CMOS
• Resolution (1080p, 720p, 720p Crop)
• Transport Video Interface
• 2.8 ~ 12mm Varifocal MegaPixel Lens
• High Resolution and OSD Controlled
• Digital WDR (Wide Dynamic Range)
• True Day & Night (ICR)
• DNR (Digital Noise Reduction), Easy Installation
• Dual Video Output
• DC 12V Power Input
